All wires are red unless otherwise specified.
Dashed lines represent wires supplied by others.
At Installation, the customer is to provide:
Disconnect and branch circuit overcurrent protection and
grounding between the power supply and the electrical
control enclosure in accordance with the National Electrical
Code (NEC), the Canadian Electrical Code (CEC) and / or
any local codes having precedence.
3 Phase Magnetic Motor Starter With HAND-OFF-AUTO Switch and Automatic Start / Stop Control
QT/QTS Series
2022208700, September 2018
CAUTION !
Verify all wires are secure
and fasteners are torqued
before connecting power to
the unit.

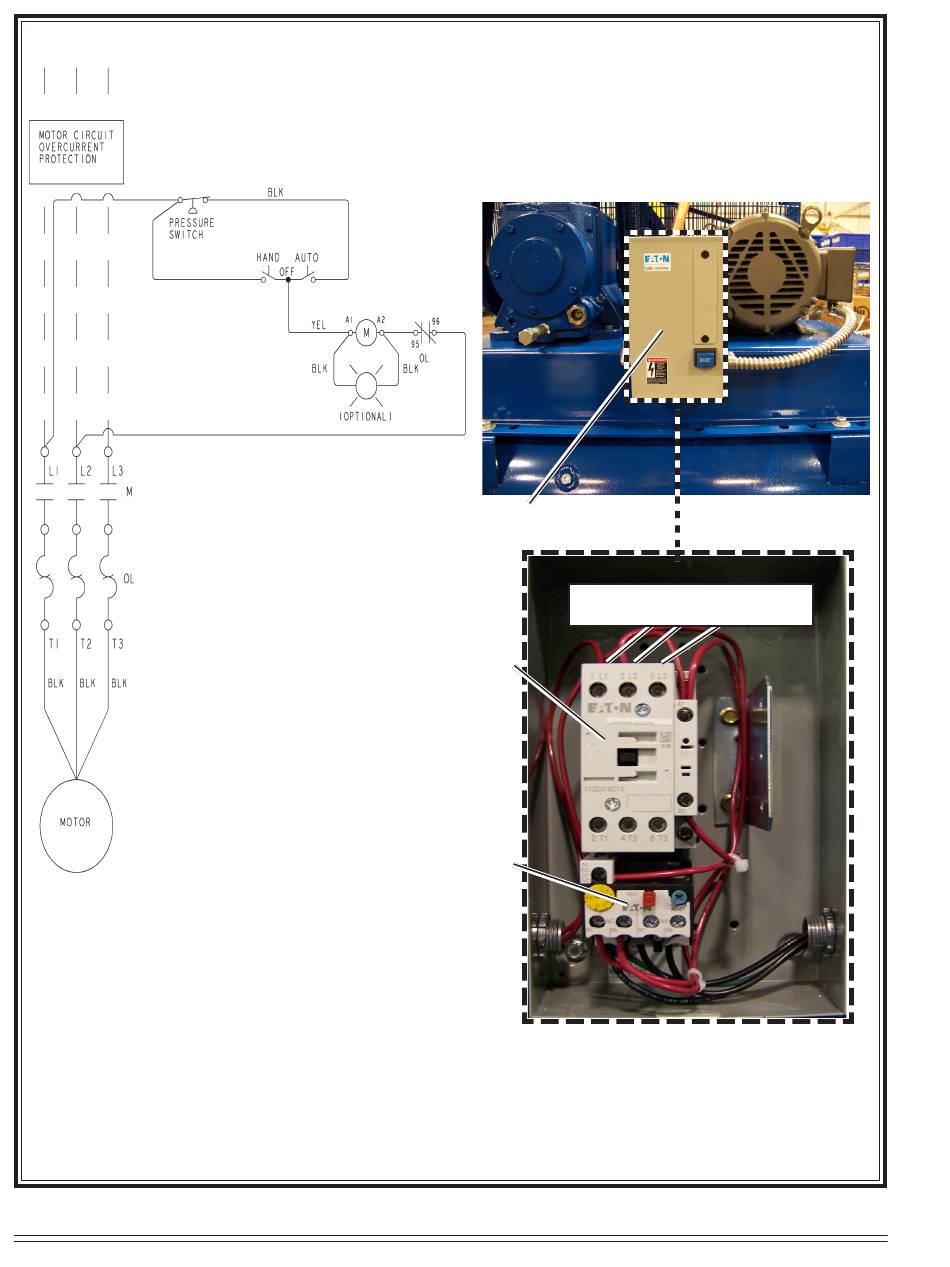

Wiring Schematic WP1744A (Rev. D)
Magnetic Starter
Connect incoming power lines
at screw terminals L1, L2 & L3.
Contactor
Overload
Relay
Fig. 3-3
