Operation (Local Mode); Operation (Pass-Through Mode) - Lumencor Light Engine Operating Instructions

Light Engine Control Pod
Set Up and Operating Instructions

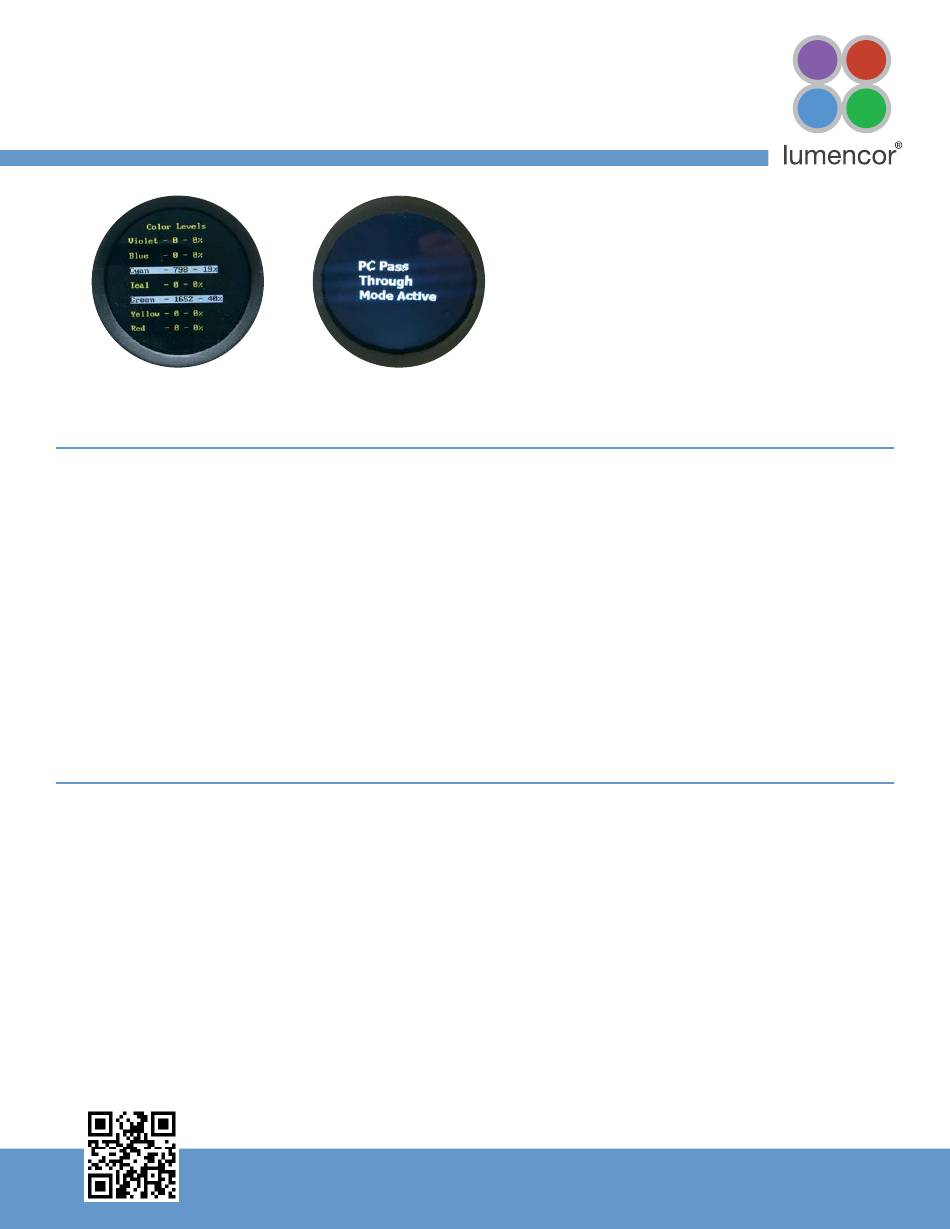

FIGURE E: Color levels display

Operation (Local Mode)

1. Press the LEFT button to select the desired color channel. Successive presses will cycle through the available color channels.
2. Press the RIGHT button to turn the selected light source ON. Adjust the output intensity using the rotary dial. Press the RIGHT button again to turn the
selected light source OFF.
3. Press and hold the LEFT button to access the color levels display and view digital output intensity settings for each color channel [1]. Channels that are
currently ON are highlighted with a white background. Press the RIGHT button to return to the main display screen.

Operation (Pass-through Mode)

1. Serial commands sent from a host computer to the USB B port of the control pod will automatically switch the pod from local to pass-through mode,
indicated by the message "PC pass through mode active" shown on the pod display screen.
2. Local command mode is disabled as long as pass-through mode remains active.
3. To quit pass-through mode and return to local command mode, press the RIGHT button on the pod twice [2].
Notes
[1] The current intensity settings are internally stored. When the pod is powered down, the settings are retained and will be restored at the next restart.
[2] Changes to channel ON/OFF status and intensity levels made on the host computer during pass-through operation will be automatically replicated in
the pod settings.
