Connecting to External Equipment

You can connect many types of external equipment to your TV like a Blu-ray disc player, DVD player, VCR, Digital
TV tuner, HDMI equipment, game console or camcorder. To view external source images, select the input source
from INPUT on the remote control unit or on the TV. (See page 15.)
CAUTION
• To protect equipment, always turn off the TV before connecting any external equipment.
• Please read the relevant operation manual (Blu-ray disc player, etc.) carefully before making connections.

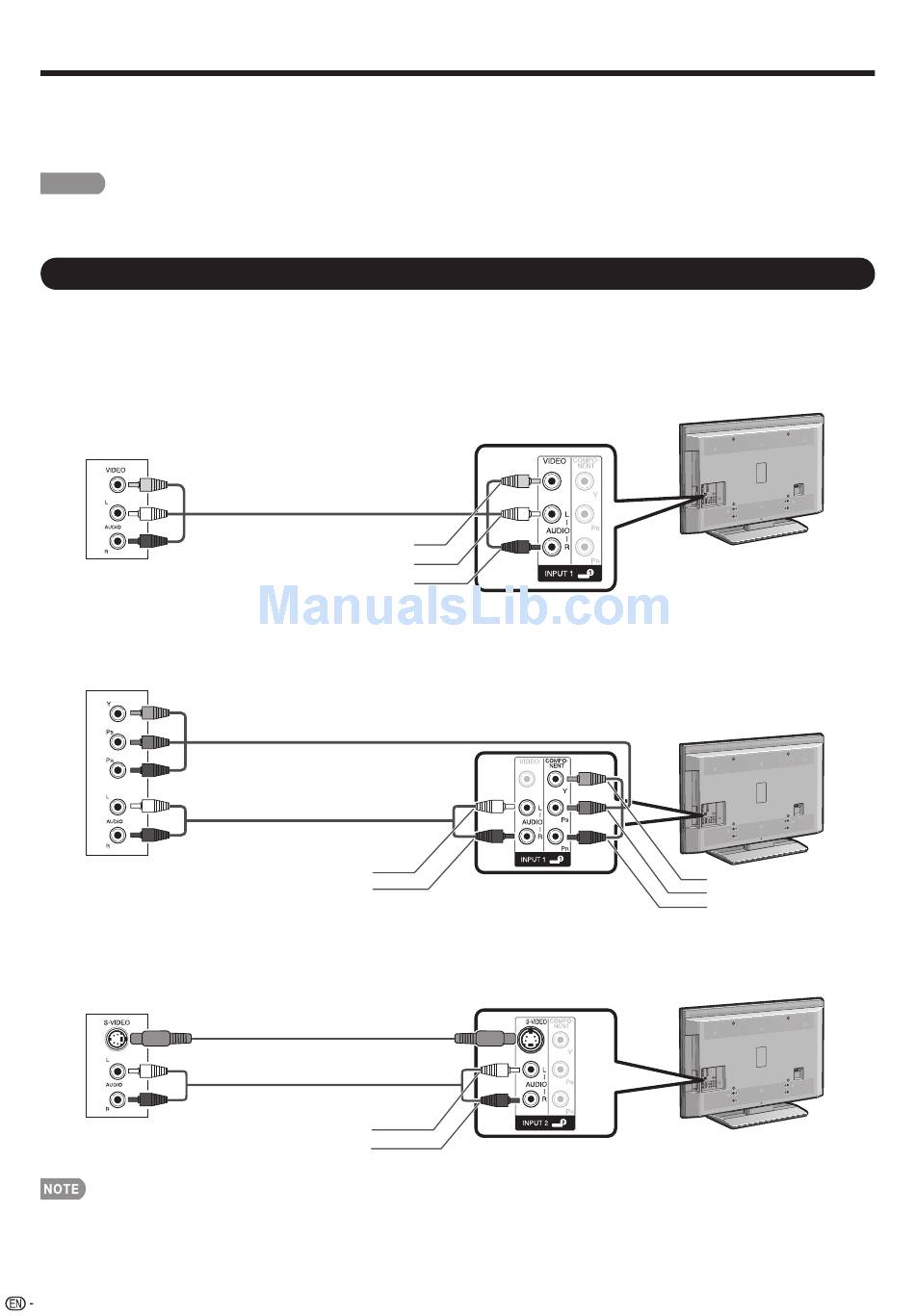

Connecting Audiovisual Equipment

You can use the INPUT 1, INPUT 2 or INPUT 3 terminals when connecting to a Blu-ray disc player, DVD player, a
Digital TV STB (Air or Cable), VCR, game console, and camcorder.
When using composite cable (INPUT 1 or 3):
Blu-ray disc player/
DVD player/Digital TV STB/VCR/
Game console/Camcorder
When using component cable (INPUT 1 or 2):
Blu-ray disc player/
DVD player/Digital TV STB
When using S-VIDEO cable (INPUT 2):
VCR/Game console/
Camcorder
• To enjoy the AQUOS 1080p display capability, connect your external equipment using a component cable and set the
equipment to 1080p output.
• See page 13 for connecting a Blu-ray disc player, DVD player or a Digital TV STB to the HDMI terminal.
• The COMPONENT terminals take priority over the VIDEO (INPUT 1) and S-VIDEO (INPUT 2) terminals.
12
AV cable
(commercially available)
VIDEO (Yellow)
AUDIO-L (White)
AUDIO-R (Red)
Component video cable
(commercially available)
Audio cable
(commercially available)
AUDIO-L (White)
AUDIO-R (Red)
S-VIDEO cable
(commercially available)
Audio cable
(commercially available)
AUDIO-L (White)
AUDIO-R (Red)
Y (Green)
P
(Blue)
B
P
(Red)
R
