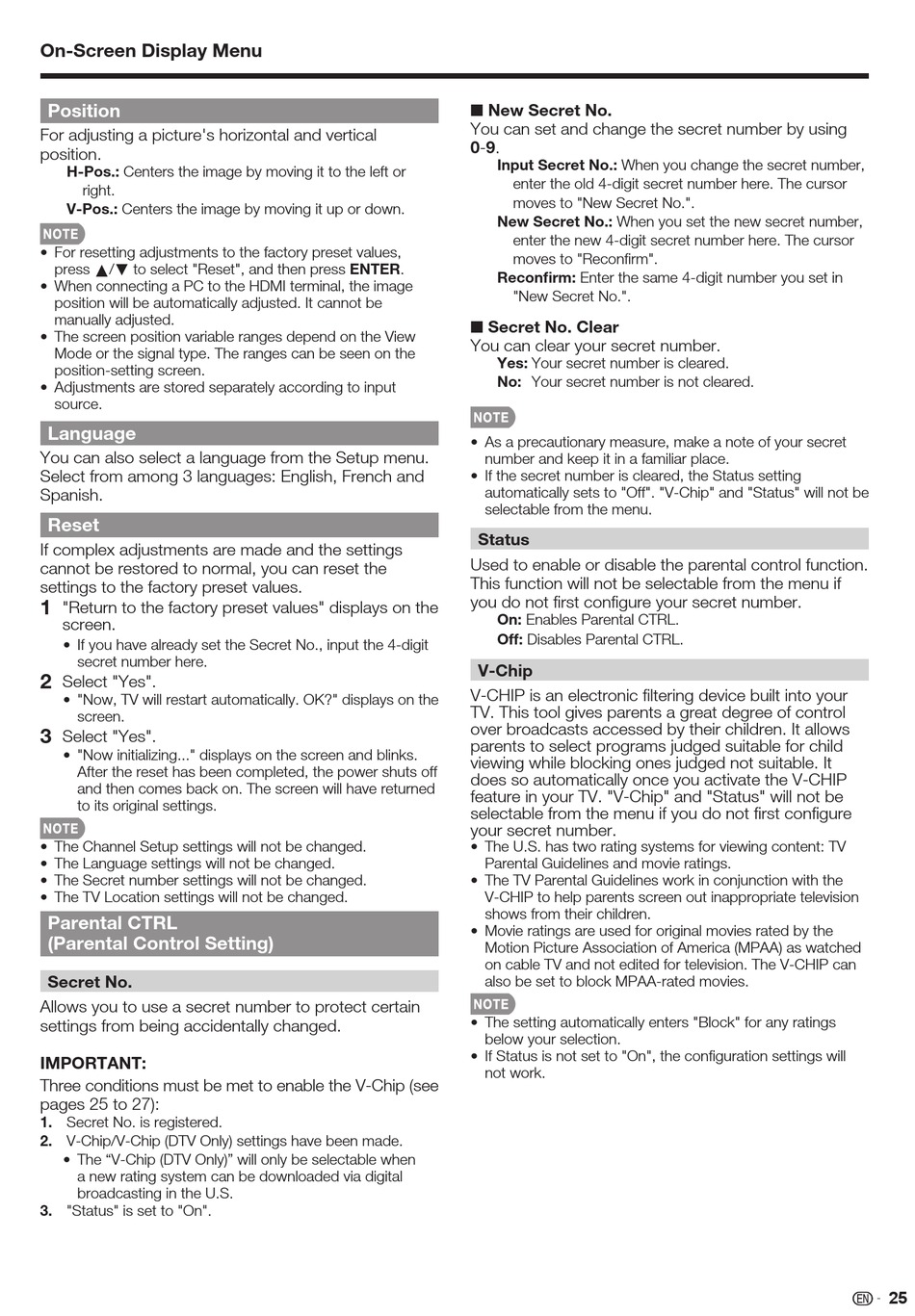

On-Screen Display Menu
For adjusting a picture's horizontal and vertical
H-Pos.: Centers the image by moving it to the left or
V-Pos.: Centers the image by moving it up or down.
For resetting adjustments to the factory preset values,
press a/b to select "Reset", and then press ENTER.
When connecting a PC to the HDMI terminal, the image
position will be automatically adjusted. It cannot be
The screen position variable ranges depend on the View
Mode or the signal type. The ranges can be seen on the
Adjustments are stored separately according to input
You can also select a language from the Setup menu.
Select from among 3 languages: English, French and
If complex adjustments are made and the settings
cannot be restored to normal, you can reset the
settings to the factory preset values.
"Return to the factory preset values" displays on the
If you have already set the Secret No., input the 4-digit
secret number here.
"Now, TV will restart automatically. OK?" displays on the
"Now initializing..." displays on the screen and blinks.
After the reset has been completed, the power shuts off
and then comes back on. The screen will have returned
to its original settings.
The Channel Setup settings will not be changed.
The Language settings will not be changed.
The Secret number settings will not be changed.
The TV Location settings will not be changed.
(Parental Control Setting)
Allows you to use a secret number to protect certain
settings from being accidentally changed.
Three conditions must be met to enable the V-Chip (see
pages 25 to 27):
1. Secret No. is registered.
2. V-Chip/V-Chip (DTV Only) settings have been made.
The "V-Chip (DTV Only)" will only be selectable when
a new rating system can be downloaded via digital
broadcasting in the U.S.
3. "Status" is set to "On".
■ New Secret No.
You can set and change the secret number by using
Input Secret No.: When you change the secret number,
enter the old 4-digit secret number here. The cursor
moves to "New Secret No.".
New Secret No.: When you set the new secret number,
enter the new 4-digit secret number here. The cursor
moves to "Reconﬁ rm".
Reconﬁ rm: Enter the same 4-digit number you set in
"New Secret No.".
■ Secret No. Clear
You can clear your secret number.
Yes: Your secret number is cleared.
No: Your secret number is not cleared.
As a precautionary measure, make a note of your secret
number and keep it in a familiar place.
If the secret number is cleared, the Status setting
automatically sets to "Off". "V-Chip" and "Status" will not be
selectable from the menu.
Used to enable or disable the parental control function.
This function will not be selectable from the menu if
you do not ﬁ rst conﬁ gure your secret number.
On: Enables Parental CTRL.
Off: Disables Parental CTRL.
V-CHIP is an electronic ﬁ ltering device built into your
TV. This tool gives parents a great degree of control
over broadcasts accessed by their children. It allows
parents to select programs judged suitable for child
viewing while blocking ones judged not suitable. It
does so automatically once you activate the V-CHIP
feature in your TV. "V-Chip" and "Status" will not be
selectable from the menu if you do not ﬁ rst conﬁ gure
your secret number.
The U.S. has two rating systems for viewing content: TV
Parental Guidelines and movie ratings.
The TV Parental Guidelines work in conjunction with the
V-CHIP to help parents screen out inappropriate television
shows from their children.
Movie ratings are used for original movies rated by the
Motion Picture Association of America (MPAA) as watched
on cable TV and not edited for television. The V-CHIP can
also be set to block MPAA-rated movies.
The setting automatically enters "Block" for any ratings
below your selection.
If Status is not set to "On", the conﬁ guration settings will
