M400 Series Electromagnetic Lock Kit
L Herculite Door Bracket (HDB) is to be used with glass doors.
1

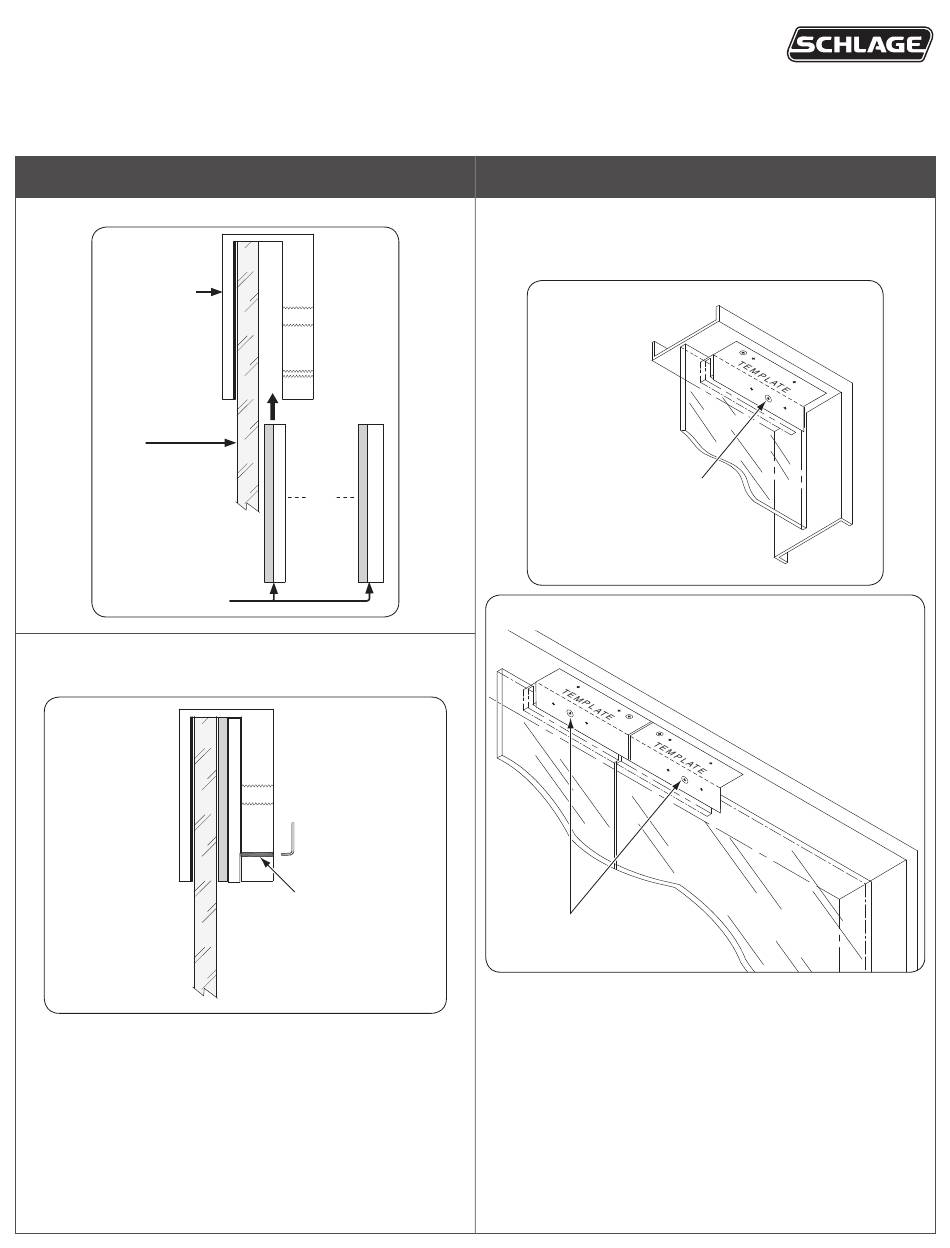

Install HDB bracket
1a
Select Appropriate Shim
HDB bracket
Glass
Shim with
compression pad
1b
Install HDB Bracket
•
Install appropriate shim (padded side toward glass)
•
Tighten set screws (3/32" hex wrench included)
Shim with compression pad to be installed on top of glass
opposite the hinge side with the hole for the armature facing
toward the "push" side of the opening.
HDB
OR
Set screws
2
Prepare frame
2a
Tape Template on HDB Bracket and Frame
•
Align armature hole on template with armature hole in HDB
bracket
•
Prepare frame holes per template
SINGLE DOOR
Armature hole
DOUBLE DOORS
Armature holes
Installation Instructions
