- Page 1 PH-11 Italian MM & MC Phono Preamplifier OWNER’S MANUAL...
-
Page 2: Important Safety Information
The power Chord supplied must be used only on this unit. Gold Note does not have responsibility for any improper use of this unit This appliance has a serial number located on the rear panel. Please record the model and serial numbee and retain them for your records. - Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions. normally, or has been dropped. 2 Keep these instructions. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on 3 Heed all warnings. the apparatus.
-
Page 4: Introduction And Specifications

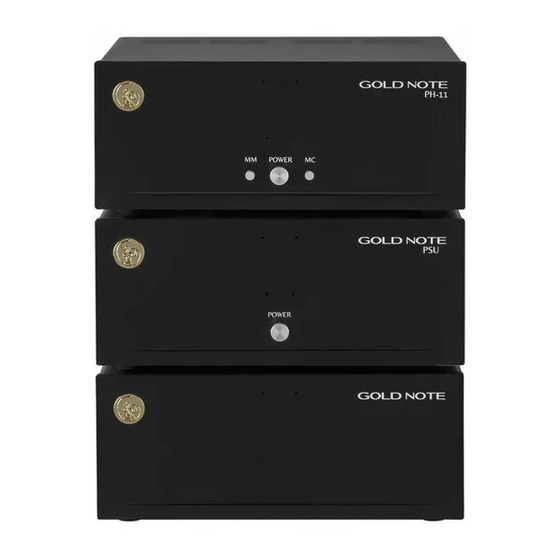

INTRODUCTION & SPECIFICATIONS The Gold Note PH-11 is a high quality MM & MC reference phono preamplifier featuring high current quadruple battery Power Supply with temperature automatic stabilizer to enhance best audio perfor- mance. The Gold Note PH-11 is a three chassis quadruple battery automatic recharging power supply fully balanced MM &... - Page 5 DIN connectors present on the two PSU units PH-11 Gain & Load rear panels. The PH-11 can be set up to be used both with MM or The recharge of the batteries starts every time the MC cartridges. The input can be even finely set up with unit is turned off via the master switch of the 1°...
- Page 6 PREAMP FRONT PANEL RED/GREEN LED Light – Shows the unit is turned ON . GOLD NOTE PH11 Power MM light – Turns on when MC Key - Select the MC selected the input phono stage. ONLY to interrupt the signal...
- Page 7 BLUE AC PLUG – It shows the unit is RED ON/OFF LIGHT – It shows the unit is plugged to an AC system. turned ON. GOLD NOTE Power LEFT LED LIGHT GREEN/RED – Turns RIGHT LED LIGHT GREEN/RED – Turns Green during full battery play –...
- Page 8 PREAMP REAR PANEL ANALOGUE AUDIO OUT POWER: - XLR Balanced Left-Right - PSU IN Analogue Audio OUT - RCA Unbalanced Left-Right Analogue Audio IN PHONO IN: - MM & MC Phono IN Left-Right - LOAD to plug adapting resistors Plugs - GND Ground OWNER’S MANUAL OWNER’S MANUAL...
- Page 9 1° & 2° PSU REAR PANEL 1° PSU - IEC PLUG with FUSE - 100 -240 Volt - PSU OUT - 50/60Hz with 1 A fuse 2° PSU DIN – to link PSU 1° and PSU 2° units with the supplied cable cord OWNER’S MANUAL OWNER’S MANUAL page 8...
-
Page 10: Customer Service
WARRANTIES WARRANTIES REGISTRATION To validate the warranty is necessary to register the unit on the Gold Note internet web site within 15 days from the purchase on the appropriate area of the web site: http://www.goldnote.it/ If the unit is not registered correctly or is been purchased from a different coun- try of the purchaser origin/home the unit will not be covered by any warranty and the eventual registration refused. - Page 11 Phono Stage fine aesthetic. Do not use any alcohol to clean the Phono Stage anodised label, or printed parts. Only dry cloth is allowed For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 10...
- Page 12 Phono Stage. Substitute the fuse with one of the same value The fuse is blown Be sure you selected the right Input of the amplifier For spare parts visit the official Gold Note store at: http://www.akamaiaudio.it/ OWNER’S MANUAL page 11...
- Page 13 USER NOTE OWNER’S MANUAL page 12...
- Page 14 USER NOTE OWNER’S MANUAL page 13...
- Page 15 USER NOTE OWNER’S MANUAL page 14...
- Page 16 Via della Gora, 6 Montespertoli (Florence) Italy 50025 Tel. + 39 0571 675005 Fax. + 39 0571 675013 www.goldnote.it...
