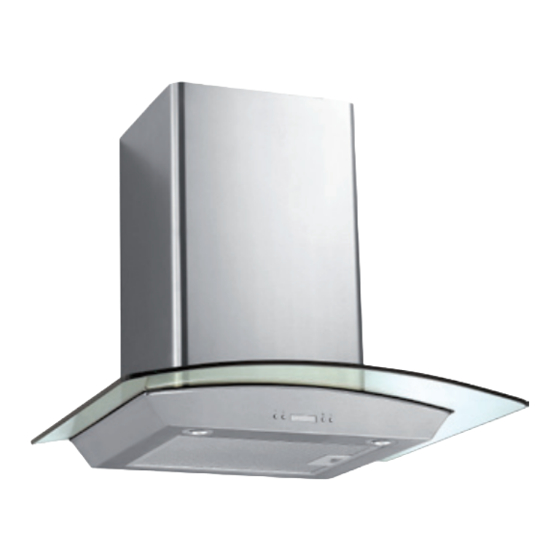

Baumatic BKH61SS Instruction Manual
  1. Manuals
  2. Brands
  3. Baumatic Manuals
  4. Ventilation Hood
  5. BKH61SS
  6. Instruction manual

Baumatic BKH61SS Instruction Manual

60/90 cm
Hide thumbs
Table of Contents

Advertisement

Quick Links

BKH61SS, BKH600GLS
60 cm
BKH91SS, BKH900GLS,
BKHISL900GLS
90 cm Range Hoods
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BKH61SS and is the answer not in the manual?

Questions and answers

Related Manuals for Baumatic BKH61SS

Summary of Contents for Baumatic BKH61SS

  • Page 1 BKH61SS, BKH600GLS 60 cm BKH91SS, BKH900GLS, BKHISL900GLS 90 cm Range Hoods...
  • Page 2 User Manual for your Baumatic BKH61SS, BKH600GLS 60 cm BKH91SS, BKH900GLS, BKHISL900GLS 90 cm Range Hoods NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...

  • Page 3: Table Of Contents

    Before beginning installation 22 – 23 Installing your range hood Positioning 17 - 18 Installing your range hood 23 - 26 (BKH61SS, BKH91SS, BKH600GLS, BKH900GLS) Connecting the external ducting Fitting the chimney 26 – 28 Positioning (BKHISL900GLS) 29 – 33 Installation (BKHISL900GLS)

  • Page 4: Environmental Note

    ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

  • Page 5: Important Safety Information

    IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Retailer where you purchased your unit from.
  • Page 6 o If the room where the range hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type. o If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room.
  • Page 7 o Note that it removes odours from your room, not steam. o Warning - Always ensure that the range hood been disconnected from power supply before carrying out any work on the hood, including replacing light bulbs. o Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.

  • Page 8: Specifications Of Your Range Hood

    Specifications of your range hood BKH61SS PRODUCT DIMENSIONS Height: 400 mm * – 780 mm Width: 600 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION 276 mm x 303 mm o Tangential motor o Electronic pushbutton operation o 3 x Speeds...

  • Page 9: Bkh600Gls

    o Optional extra: 1 x pair S1 carbon filters required for recirculation mode BKH600GLS PRODUCT DIMENSIONS Height: 500 mm * – 980 mm Width: 600 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION 273 mm x 305 mm o Tangential motor o Electronic pushbutton operation o 3 x Speeds o 1 x Aluminium grease filter...

  • Page 10: Bkh91Ss

    BKH91SS PRODUCT DIMENSIONS Height: 400 mm * – 780 mm Width: 900 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION 276 mm x 303 mm o Tangential motor o Electronic pushbutton operation o 3 x Speeds o 3 x Aluminium grease filters o 2 x LED lights o Noise level: 61 / 65 / 68 dB o Extraction capacity: 1000 m³/hr...

  • Page 11: Bkh900Gls

    BKH900GLS PRODUCT DIMENSIONS Height: 500 mm * – 980 mm Width: 900 mm Depth: 500 mm DIMENSIONS OF CHIMNEY SECTION 273 mm x 305 mm o Tangential motor o Electronic pushbutton operation o 3 x Speeds o 2 x Aluminium grease filters o 2 x LED lights o Noise level: 61 / 65 / 68 dB o Extraction capacity: 1000 m³/hr...

  • Page 12: Bkhisl900Gls

    BKHISL900GLS PRODUCT DIMENSIONS Height: 600 mm * – 1100 mm Width: 900 mm Depth: 600 mm DIMENSIONS OF CHIMNEY SECTION 270 mm x 285 mm o Tangential motor o Electronic pushbutton operation o 3 x Speeds o 2 x Aluminium grease filters o 4 x LED lights o Noise level: 61 / 65 / 68 dB o Extraction capacity: 1000 m³/hr...

  • Page 13: Using Your Range Hood

    Using your range hood Before first use IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE RANGE HOOD IS USED FOR THE FIRST TIME. o You should use a good quality stainless steel cleaner and polish on ALL of the stainless steel areas of your range hood, before it is used for the first time.

  • Page 14: Setting The Time Of Day

    o When you first connect your range hood to the power supply, the display (9) will show “88:88” and the backlight will turn on. o The backlight will turn off automatically after 30 seconds if no buttons are pressed. Setting the time of day o Before pressing the light control button (3) and the speed control button (2) you should set the time of day.

  • Page 15: Switching On The Appliance And Setting A Power Level

    IMPORTANT: The hood lights should only be turned on when the hood is in use and should not be used as a separate lighting source or kept on for long periods of time. Switching on the appliance and setting a power level o Press the power button (1) once to turn the range hood on.
  • Page 16 o Use the speed control button (2) to increase the time in 1 minute intervals and the light control button (3) to decrease the time in 1 minute intervals. The maximum time that can be set is “60:00”. o When the required working time is shown on the display, press the timer button (4) to confirm.

  • Page 17: Cleaning Your Range Hood

    Cleaning your range hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT HAVE SWITCHED YOUR RANGE HOOD OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. Cleaning o Clean the external parts of your range hood with mild liquid detergent and a new damp cloth. o Never use abrasive powder, corrosive solvents or brushes.

  • Page 18: Maintenance

    Maintenance Removing and cleaning the grease filters o First remove the grease filters by pulling down on the handle and pulling them away from the range hood. o Soak the grease filters in hot water and washing up liquid for about an hour.

  • Page 19: Changing A Light Bulb

    Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE RANGE HOOD FROM YOUR MAINS SUPPLY. o Remove grease filters described on the previous page). o Prior to touching the light bulbs ensure that they have cooled down.

  • Page 20: Fitting The S1 Carbon Filters

    o IMPORTANT: Defective bulbs should replaced immediately. o If the lights still do not work, make sure that the bulbs are fitted properly into their housings before you call for technical assistance. o Refit the grease filters. Fitting the S1 carbon filters If the appliance is going to be used in recirculation mode then it is necessary to fit a carbon filter.

  • Page 21: Installation

    3) Turn the carbon filter anticlockwise until you feel it click into place. o Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor. o Refit the grease filters. o The carbon filters should be replaced every three months or if they show signs of damage.

  • Page 22: Before Beginning Installation

    WARNING: THIS APPLIANCE MUST BE EARTHED. It should only be connected by a competent person, using fixed wiring via a double pole switched fused spur outlet. (UK ONLY). We recommend that the appliance is connected by a qualified person in accordance with the latest edition of the ASNZS3000-2000 wiring rules and in compliance with the manufacturer’s instructions.

  • Page 23: Installing Your Range Hood

    TWO MODES. o We recommend that two people install this hood. IMPORTANT: YOUR RANGE HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED. BKH61SS, BKH91SS, BKH600GLS, BKH900GLS 1) Remove the grease filters.
  • Page 24 2) Position the hood against the wall that you are intending to install it on and mark the position of the support holes that are to be drilled (as shown in the figure below). 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B.
  • Page 25 4) Insert the rawl plugs into all of the holes that you have drilled. 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall. 6) Hang the hood onto the support screws.

  • Page 26: Connecting The External Ducting

    7) Fully tighten the support screws A and then screw the anchoring screws B through the relevant holes in the range hood. Tighten the anchoring screws fully into the wall. Connecting to external ducting 8) Connect the coupling to the top of the range hood, and then connect a 150 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance).
  • Page 27 o Mark the side measurement of both sides of chimney section C on the wall with a pencil. 10) Lift chimney section D upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section D on the wall with a pencil and then remove chimney section D.
  • Page 28 12) Using an 8 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section C to the hood and fix it onto the hood using the two screws that are supplied.

  • Page 29: Positioning (Bkhisl900Gls)

    BKHISL900GLS Positioning Height of the appliance Total height of the kitchen Height of the worktop Distance between the hob and the hood 9 cm = Height of the hood canopy o To work out the height of the appliance, you need to use the following formula: X = A –...

  • Page 30: Installation (Bkhisl900Gls)

    IMPORTANT: Although the minimum height of the appliance can be set at 690 mm. During the installation process you will need to move the lower chimney section upwards, to allow you to attach the main body of the hood to the framework. To achieve this you will require a vertical gap of no less than 1000 mm.
  • Page 31 1) Position the hanging plate on the ceiling and then mark the position of the screw holes. o The hanging plate should securely fixed to the ceiling, using the 12 x ST6 (40 mm) screws. o Depending on the surface of the ceiling that you are fixing the hanging plate to, you may need to use 8 x expansion bolts (for concrete).
  • Page 32 4) If your range hood is going to be used in extraction mode, then you should connect the ducting hose to the ceiling adaptor at this point. o Fix upper chimney section hanging plate, using the 4 x self tapping screws.

  • Page 33: Extraction Mode Or Recirculation Mode

    8) If you are going to be using the hood in extraction mode, you should fix the ducting hose to the spigot. o The electrical connection must correspond electrical requirement noted on the rating plate, which is placed inside the range hood. The appliance should now be connected to the electrical supply.

  • Page 34: Troubleshooting

    What is a charcoal filter and do I need one? All range hoods have a grease filter but if you are using your range hood in recirculation mode, then a charcoal filter must be fitted in addition to the grease filter. Troubleshooting IMPORTANT: If your range hood appears not to be operating properly, before contacting an Authorised Service Agent, please...

  • Page 35: Warranty Card

    IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact an Authorised Service Agent. onto www.applico.co.nz locate Service Agent nearest to you. DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.
  • Page 40 40 40...

This manual is also suitable for:

Bkh91ss, bkh900glsBkh600glsBkhisl900gls
