Summary of Contents for Stanley PG10

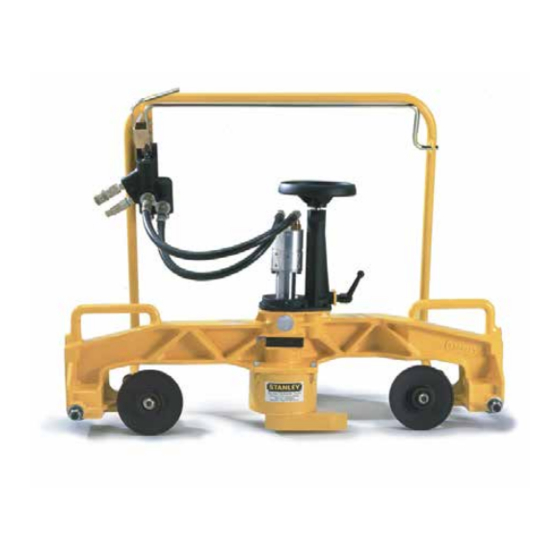

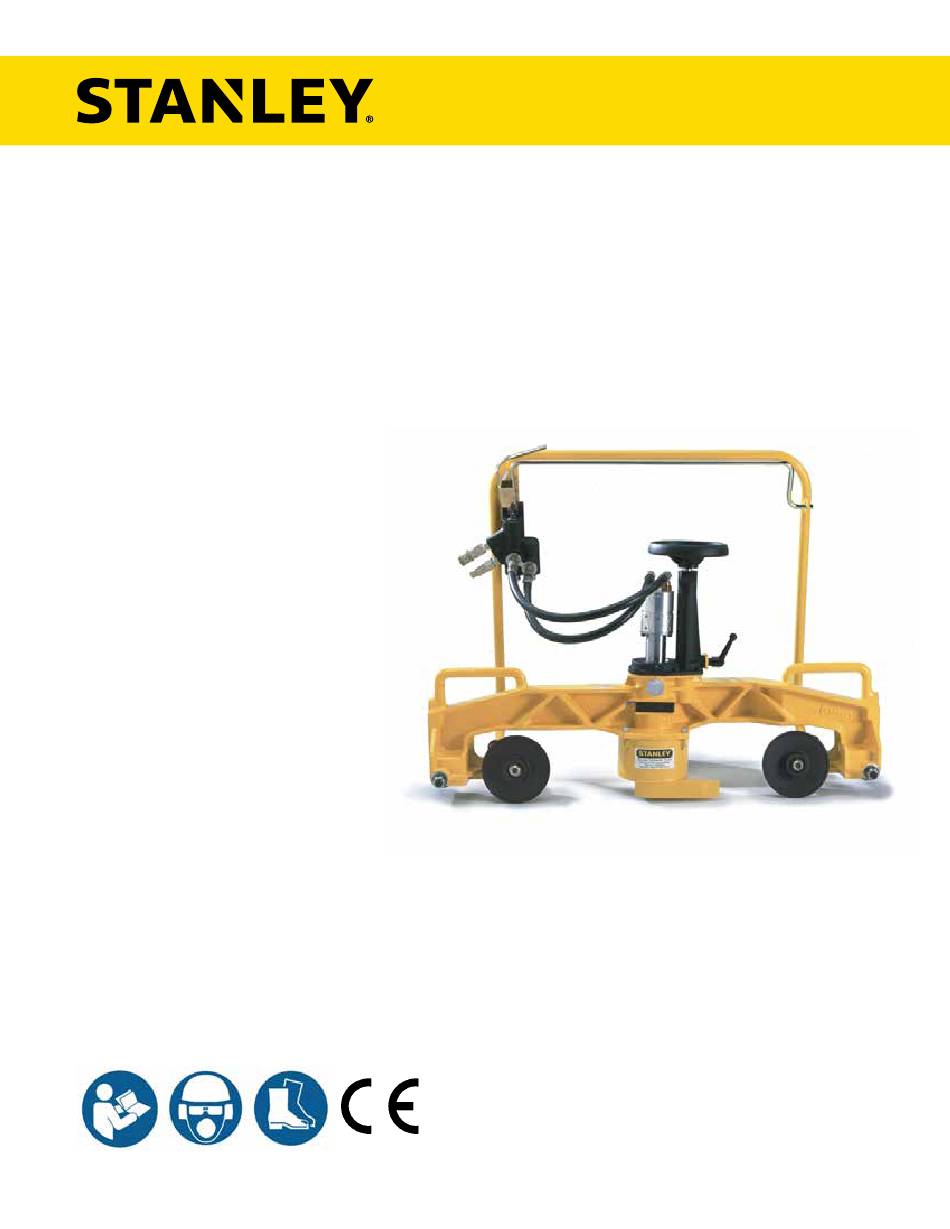

- Page 1 PG10 HYDRAULIC PROFILE GRINDER USER MANUAL Safety, Operation and Maintenance © 2017 STANLEY Black & Decker, Inc. New Britain, CT 06053 U.S.A. 65846 4/2018 Ver. 9...
- Page 2 Provisiones especiales: Disposizioni speciali: Representative in the Union: Patrick Vervier, Stanley Dubuis 17-19, rue Jules Berthonneau-BP 3406 41034 Blois Cedex, France. Vertreter in der Union/Représentant dans l’union/Representante en la Union/Rappresentante presso l’Unione Done at/Ort/Fait à/Dado en/Fatto a STANLEY Infrastructure, Milwaukie, Oregon USA...
-
Page 3: Table Of Contents
REPAIRS AND / OR SERVICE TO THIS TOOL MUST ONLY BE DONE BY AN AUTHORIZED AND CERTIFIED DEALER. For the nearest certified dealer, call STANLEY Infrastructure at (503) 659-5660 and ask for a Customer Service Representative. PG10 User Manual ◄ 3... -
Page 4: Safety Symbols
Always observe safety symbols. They are included for your safety and for the protection of the tool. LOCAL SAFETY REGULATIONS Enter any local safety regulations here. Keep these instructions in an area accessible to the operator and maintenance personnel. 4 ► PG10 User Manual... -
Page 5: Safety Precautions
Keep the wheel off all surfaces when starting the the space provided in this manual. grinder. PG10 Hydraulic Profile Grinder will provide safe and • Do not use a wheel that is cracked, chipped or dependable service if operated in accordance with the otherwise damaged. -
Page 6: Tool Stickers & Tags
CIRCUIT TYPE D DECAL STICKER 28322 CE DECAL 29714 PG10 NAME TAG (US & CE) NOTE: D A N G E R D A N G E R THE INFORMATION LISTED ON THE STICKERS SHOWN, MUST BE LEGIBLE AT ALL FAILURE TO USE HYDRAULIC HOSE LABELED AND CER- DO NOT LIFT OR CARRY TOOL BY THE HOSES. -
Page 7: Hose Types
This hose is not certifi ed non-conductive and must never be used near electrical conductors. HOSE SAFETY TAGS To help ensure your safety, the following DANGER tags are attached to all hose purchased from STANLEY. DO NOT REMOVE THESE TAGS. -
Page 8: Hose Recommendations
HOSE RECOMMENDATIONS 8 ► PG10 User Manual... -
Page 9: Htma / Ehtma Requirements
2000 psi 2000 psi (At the power supply outlet) (172 bar) (138 bar) (138 bar) (138 bar) (138 bar) Note: These are general hydraulic system requirements. See tool specifi cation page for tool specifi c requirements. PG10 User Manual ◄ 9... -
Page 10: Operation
PRODUCT. 1. Unscrew the two nuts (98) which secure the guard weldment (95) to the frame and remove the guard weldment. 2. Install the grinding wheel until it comes in contact with the drive flange. 10 ► PG10 User Manual... - Page 11 If the grinder is not loaded against a work surface when the trigger is released, the wheel will take 5-10 seconds to come to a complete stop. Avoid uninten- tional contact of the grinding wheel during the coast down period. PG10 User Manual ◄ 11...
-
Page 12: Preventative Maintenance
4. Check hoses and fittings weekly for any evidence of leakage, cover wear, cracking or cuts. If any of these defects are found, discontinue use of the tool imme- diately and have the defects repaired or replaced by a trained technician. 12 ► PG10 User Manual... -
Page 13: Tool Protection & Care
Do not reverse cir- cuit flow. This can cause damage to internal seals. • Always replace hoses, couplings and other parts with replacement parts recommended by STANLEY. Supply hoses must have a minimum working pres- sure rating of 2500 psi/172 bar. •... -
Page 14: Troubleshooting
Inspect, repair or replace. Flow control malfunctioning. Have flow control serviced at an authorized STANLEY service center. Grinder operates too fast. Flow control malfunctioning. Have flow control and valve body serviced at an authorized STANLEY service center. 14 ► PG10 User Manual... -
Page 15: Specifications
Measured vibration emission value: a (Trigger Handle) 1.7 m/sec² Measured vibration emission value: a (Non-Trigger Handle) 2.3 m/sec² Uncertainty: K 1.09 m/sec² Values determined according to EN ISO 28927-1 ACCESSORIES 6 × 3 × 5/8-11 Thread Cup Stone ........................28597 PG10 User Manual ◄ 15... -
Page 16: Parts Illustration
PG10 PARTS ILLUSTRATION 16 ► PG10 User Manual... - Page 17 PG10 PARTS ILLUSTRATION PG10 User Manual ◄ 17...
-
Page 18: Parts List
O-RING .644 × .818 × .087 -908 (INCL W/ 27749 HOUSING ITEMS 1 & 86) • 25285 ADJUSTABLE HANDLE 00936 ADAPTER 25104 BACKUP WASHER 03972 FEMALE COUPLING, PARKER 25286 WIPER TYPE H • 81158 FEMALE COUPLING, STUCCHI 18 ► PG10 User Manual... - Page 19 THRU 20) 25052 WASHER 02179 18601 ROLL PIN 27366 LEVER WELDMENT 27599 SPRING (MODIFIED) 27370 SPACER 28409 DECAL, COMPOSITE SAFETY 28322 DECAL, CE 11207 DECAL, CIRCUIT TYPE D 51296 DECAL, SOUND POWER LEVEL 25942 SEAL KIT PG10 User Manual ◄ 19...
-
Page 20: Spark Guard Kit
62402 SPARK GUARD FRAME WELDMENT 2072 CAPSCREW 70743 FABRIC SNAP 2395 CABLE TIE (NOT PICTURED) 69814 SPARK GUARD ASSY (INCL ITEMS 3, 4, 5, AND 6) 69820 SPARK GUARD KIT (INCL ITEMS 1 THRU 7 20 ► PG10 User Manual... - Page 24 Stanley Infrastructure 3810 SE Naef Road Milwaukie, Oregon 97267-5698 USA (503) 659-5660 / Fax (503) 652-1780 www.stanleyinfrastructure.com...
