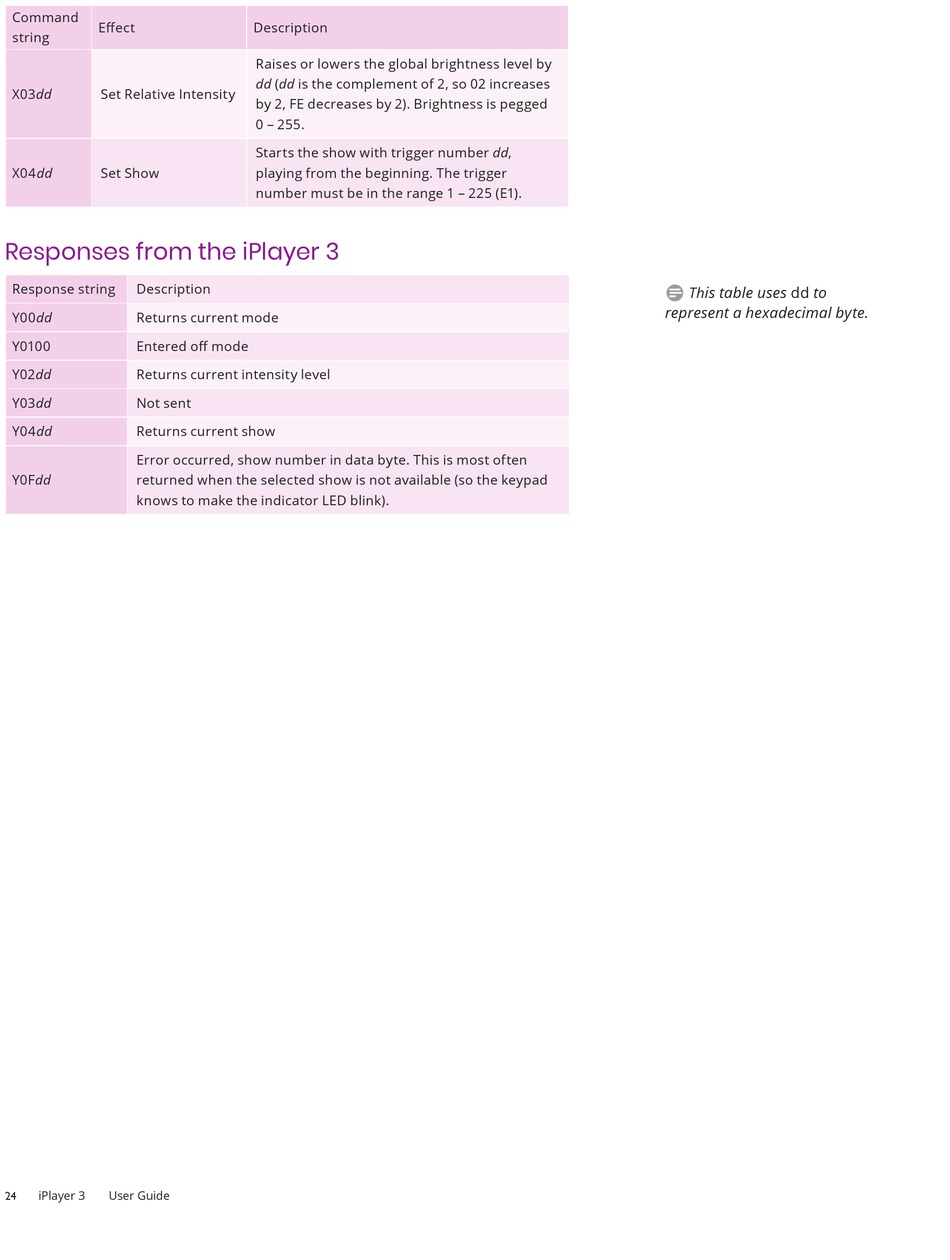

Color Kinetics iPlayer 3 User Manual page 28

Command
Effect
string
X03dd Set Relative Intensity
X04dd Set Show
Responses from the iPlayer 3
Response string Description
Y00dd Returns current mode
Y0100 Entered off mode
Y02dd Returns current intensity level
Y03dd Not sent
Y04dd Returns current show
Error occurred, show number in data byte. This is most often
Y0Fdd returned when the selected show is not available (so the keypad
knows to make the indicator LED blink).
24 iPlayer 3 User Guide
Description
Raises or lowers the global brightness level by
dd (dd is the complement of 2, so 02 increases
by 2, FE decreases by 2). Brightness is pegged
0 – 255.
Starts the show with trigger number dd,
playing from the beginning. The trigger
number must be in the range 1 – 225 (E1).
is table uses dd to
Th
D
represent a hexadecimal byte.
