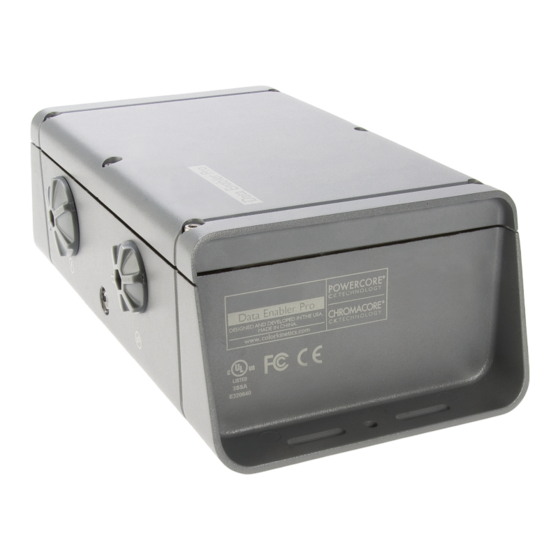

- Page 1 Data Enabler Pro Integrated data and power for intelligent LED lighting luminaires employing Powercore technology Product Guide...
- Page 2 Data Enabler Pro integrates many of the features of the previous generation of Data Enablers, including Data Enabler DMX, Data Enabler Ethernet, and Data Enabler EO. Data Enabler Pro is the single solution for all intelligent Powercore-based installations, whether DMX or Ethernet, color or white, indoors or outdoors.
- Page 3 On-board indicator LEDs provide visual feedback for normal operation, Ethernet connection detection, and Ethernet and DMX data transmission. Outdoor-rated Data Enabler Pro offers superior leakage protection in a cast aluminium, IP66-rated enclosure. Universal power input range Data Enabler Pro automatically senses mains voltages ranging from 100 to 277 VAC, and passes mains voltages through to all connected lights.
-
Page 4: General Information
Connections 3/4 in NPT for power / 1/2 in NPT for data (US trade) Threaded Openings PG21 for power / PG13 for data (metric) Color Kinetics full range of controllers, third-party DMX controllers, or KiNET-compatible third-party § Data Input Source Ethernet controllers §... -
Page 5: Part Numbers
Data Enabler Pro PG21/PG13 (metric size conduit) 106-000004-01 910503701211 For further information Data Enabler Pro is available in U.S. trade and metric sizes. Complete details including Installation Instructions, Specification Sheets, .ies files, and product drawings, can be found at: https://www.colorkinetics.com/global/products/pds/dataenablerpro Data Enabler Pro... - Page 6 Installation DMX and Ethernet Configurations Data Enabler Pro integrates data and power Data Enabler Pro can be used in either DMX or transmission for all intelligent color and tunable white Ethernet networks. DMX is appropriate for relatively LED luminaires employing Powercore technology simple installations, or for installations in which groups from Color Kinetics.
- Page 7 Multiple runs are typically installed to a common individual run length should not exceed 53.3 m (175 ft), junction box. Powercore floodlights, wash lights, and and the total cable length per Data Enabler Pro should spotlights, such as ColorReach Powercore, ColorBlast not exceed 122 m (400 ft).
-
Page 8: Installation
Data Enabler Pro. • 4 mounting screws suitable for the mounting surface 1. Each Data Enabler Pro device is identified by a unique serial number and IP address. The serial number and • For installations using metric size conduit, PG21 default IP addresses are located on a label inside the watertight conduit and fittings for power, and PG13.5... - Page 9 8 mm hex or 5/16 in hex In wet or damp locations, use electronics-grade RTV silicone to seal all points of entry in all Data Enabler Pro devices and all connected junction boxes to prevent water infiltration. DMX input Make Data Input Connections Data Enabler Pro has different connectors for DMX and Ethernet data inputs.
- Page 10 325 m (1000 ft). Also use a DMX 2. If necessary, cut the cable jacket to expose the wire repeater for runs of more than 32 Data Enabler Pro pairs. Do not strip the wire pairs.
- Page 11 6. While holding the wires firmly in place, push down on the pivot connectors until they click shut. 8. Repeat for each Data Enabler Pro device in the series. 7. Run the free end of the cable to the next Data 9.
- Page 12 1. Run a leader cable from a run of luminaires, or a lead wire from a junction box, through a cable connector installed on the output side of the Data Enabler Pro housing (the side with two openings). Pull at least 152 mm (6 in) of wire into the housing.
- Page 13 3. Locate the luminaire cable 4-wire PC terminal block 1. Run iColor Accent MX Powercore gen2 leader cable connector inside the Data Enabler Pro housing. through a cable connector installed on the output side of the Data Enabler Pro housing (the side with UL/cUL CE/PSE two openings).
- Page 14 Configuration You can configure Data Enabler Pro devices using QuickPlay Pro addressing and configuration software. Download QuickPlay Pro: https://www.colorkinetics.com/global/support/downloads for a period of time, select “Turn off after black data Configuring Data Enabler Pro with QuickPlay Pro for,” and enter a timeout (in minutes) in the text box.
- Page 15 1. Visit the Firmware Updater page at 7. Click PROGRAM. https://www.colorkinetics.com/global/support/ 8. Repeat steps 1 to 7 for each Data Enabler Pro device downloads/firmware. that you want to update. 2. Download the CK Firmware Updater installer. Recovering from Firmware Update Errors 3.
- Page 16 © 2020 Signify Holding. All rights reserved. The information provided herein is subject to change, without notice. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon.
