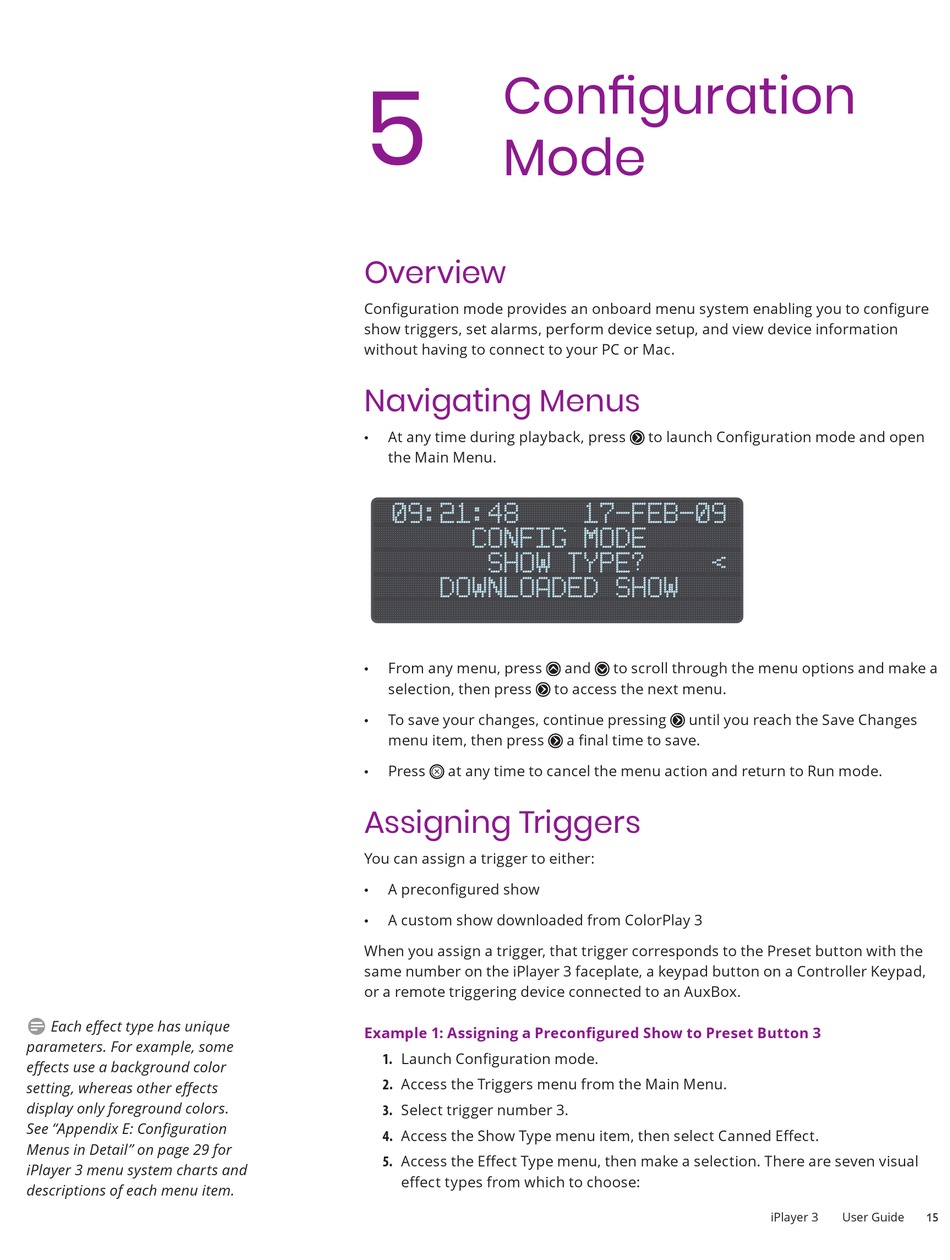

Configuration Mode; Overview; Navigating Menus; Assigning Triggers - Color Kinetics iPlayer 3 User Manual

Each effect type has unique
D
parameters. For example, some
effects use a background color
setting, whereas other effects
display only foreground colors.
See "Appendix E: Configuration
Menus in Detail" on page 29 for
iPlayer 3 menu system charts and
descriptions of each menu item.
5
Configuration
Mode

Overview

Configuration mode provides an onboard menu system enabling you to configure
show triggers, set alarms, perform device setup, and view device information
without having to connect to your PC or Mac.

Navigating Menus

At any time during playback, press
•
the Main Menu.
09:21:48
Config mode
Show type?
downloaded show
From any menu, press
•
selection, then press
To save your changes, continue pressing
•
menu item, then press
Press at any time to cancel the menu action and return to Run mode.
•

Assigning Triggers

You can assign a trigger to either:
A preconfigured show
•
A custom show downloaded from ColorPlay 3
•
When you assign a trigger, that trigger corresponds to the Preset button with the
same number on the iPlayer 3 faceplate, a keypad button on a Controller Keypad,
or a remote triggering device connected to an AuxBox.
Example 1: Assigning a Preconfigured Show to Preset Button 3
1. Launch Configuration mode.
Access the Triggers menu from the Main Menu.
2.
Select trigger number 3.
3.
Access the Show Type menu item, then select Canned Effect.
4.
Access the Effect Type menu, then make a selection. There are seven visual
5.
effect types from which to choose:
to launch Configuration mode and open
17-Feb-09
<
and to scroll through the menu options and make a
to access the next menu.
until you reach the Save Changes
a final time to save.
iPlayer 3 User Guide 15
