CONNECTION OF THE WATER HOSES
The water hoses are those more stiff and with the smaller diameter; the connection
scheme will be different according to the application of the Autofill kit to one or more
bowls.

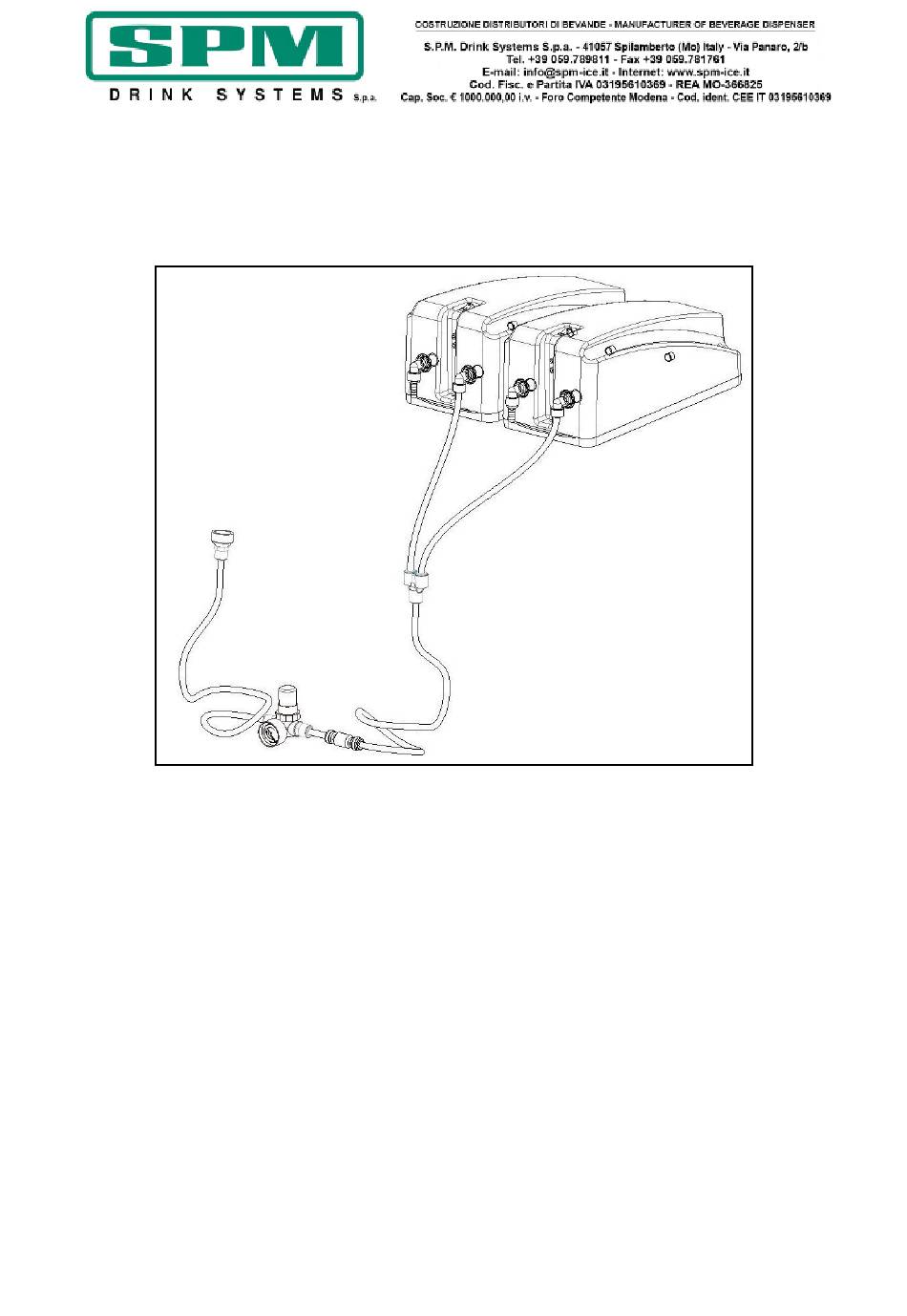

The picture shows the water connection scheme for a two bowls unit.
C
Two bowls Autofill Plus
 Connect the hose end with the threaded ring nut C to the pressure regulator D;
 Connect the regulator D and the single check valve E through a short piece of the hose;
 Connect the valve E and the two way divider F which will allow to bring water in both
bowls with a longer part of the hose as one wants;
 Complete the connection to the bowls inserting the part of hose attached to the junction
F to the elbow A previously assembled on the cover;
 Connect the threaded ring nut C to the water tap.
Three bowls Autofill Plus
 To connect a third bowl it is necessary to add an additional two way divider as the one
for the two bowls.
One bowl Autofill
 After the check valve the hose becomes one and it must be introduced directly into the
elbow on the cover.
