Part Names - Sharp Notevision XG-NV7XU Operation Manual

Part Names

Numbers next to the part names refer to the main pages in this manual where the topic is explained.

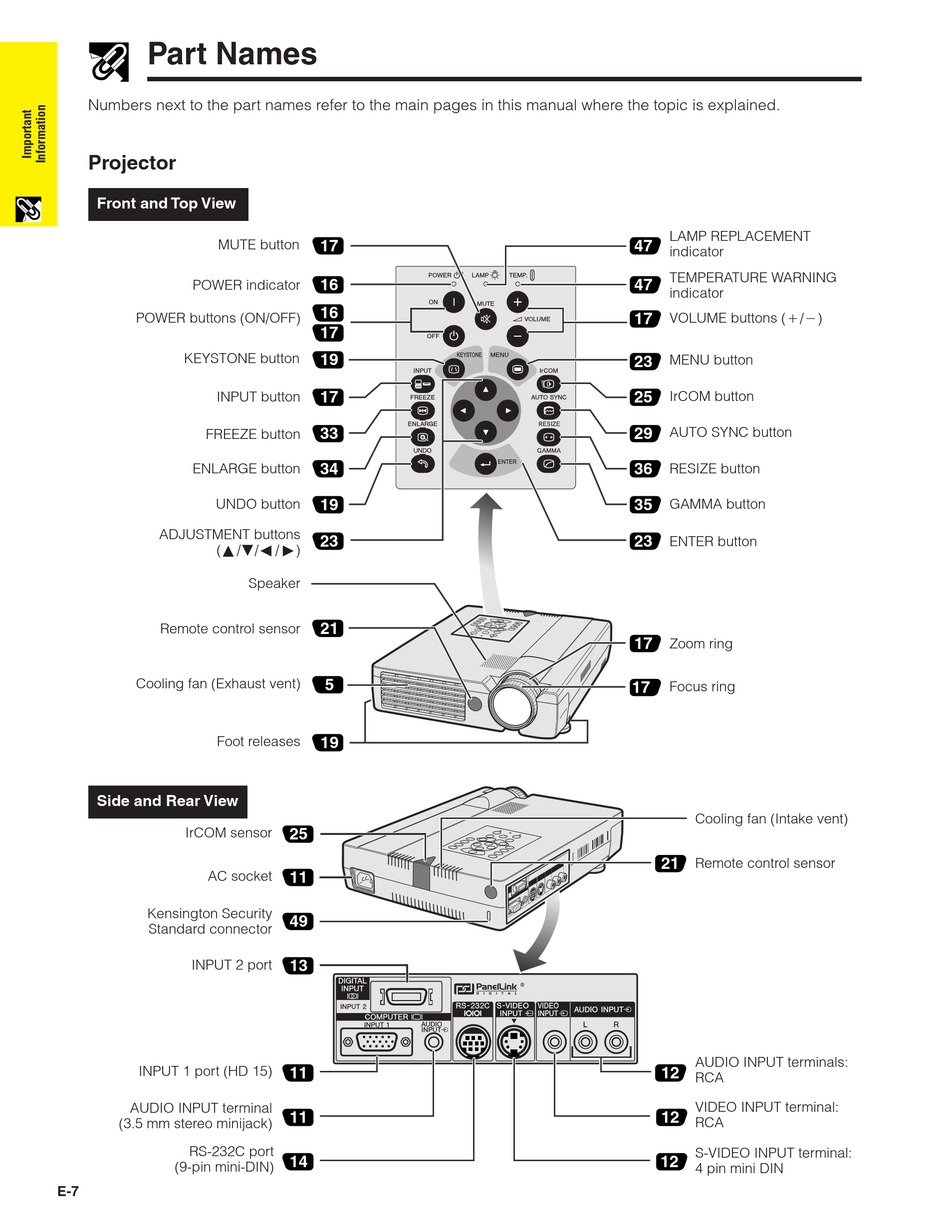

Projector
Front and Top View
MUTE button
POWER indicator
POWER buttons (ON/OFF)
KEYSTONE button
INPUT button
FREEZE button
ENLARGE button
UNDO button
ADJUSTMENT buttons
(∂ /ƒ/ß / ©)
Remote control sensor
Cooling fan (Exhaust vent)
Foot releases
Side and Rear View
IrCOM sensor
AC socket
Kensington Security
Standard connector
INPUT 2 port
INPUT 1 port (HD 15)
AUDIO INPUT terminal
(3.5 mm stereo minijack)
RS-232C port
(9-pin mini-DIN)
E-7
17
16
16
17
19
17
33
34
19
23
Speaker
21
5
19
25
11
49
13
11
11
14
LAMP REPLACEMENT
47
indicator
TEMPERATURE WARNING
47
indicator
17
VOLUME buttons ( / )
MENU button
23
25 IrCOM button
29 AUTO SYNC button
36
RESIZE button
35
GAMMA button
23
ENTER button
17
Zoom ring
17 Focus ring
Cooling fan (Intake vent)
21
Remote control sensor
AUDIO INPUT terminals:
12
RCA
VIDEO INPUT terminal:
12
RCA
S-VIDEO INPUT terminal:
12
4 pin mini DIN
