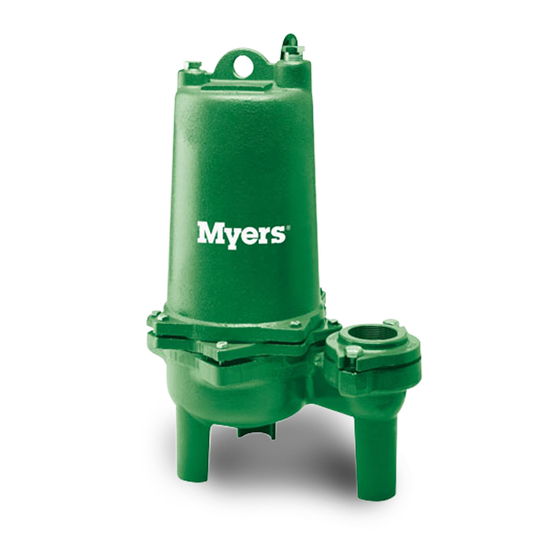

- Page 1 INSTALLATION AND SERVICE MANUAL WHR5H, 10H, 15H, 20H Series Submersible Sewage Pumps 293 WRIGHT STREET, DELAVAN, WI 53115 WWW.fEmyERS.COm PH: 888-987-8677 23833A551 (09/23/13) © 2013 Pentair All Rights Reserved.
- Page 2 SAFETY WARNINGS DO NOT THROW AWAY OR LOSE THIS MANUAL. Keep it in a safe place so that you may refer to it often for the Before Installation: This manual contains important continued safe operation of the product. information for the safe use of this product. Read this manual completely and follow the instructions carefully.
- Page 3 LEVEL CONTROLS PIPING All pumps must use certified level control switches for Pumps are fitted with 2" or 3" female threaded pipe automatic operation. Level control rating must be at least flange. Galvanized or PVC plastic pipe can be used. equal to the horsepower rating of the pump.
- Page 4 STARTING PUMP PIGGYBACK SPECIAL INSTRUCTIONS FOR 3-PHASE (AUTOMATIC) USING MECHANICAL SWITCH PUMPS WITH SERIES PLUG – Only qualified persons shall service SIMPLEX SYSTEM and install this pump. The pump must be wired by 1. These pumps have a mechanical (mercury-free) float a qualified electrician, using an approved starter switch with a 20 ft.
-
Page 5: Troubleshooting
TROUBLESHOOTING 2. Pump runs but does not deliver flow. a. Check for airlock. Start and stop pump several 1. Pump does not run or start when water is up in times. If this does not help it may be necessary tank. -
Page 6: Repair Parts List
REPAIR PARTS LIST* Ref. Description Qty. Part Number Ref. Description Qty. Part Number Cord, Power See Chart Impeller, DI (std. series) See Chart Housing Motor 25327D000P Screw, Machine #10 x 3/8 06106A042 Oil, Transformer (5 gal.) .8-1 gal Sealant (Grade 271 Loctite 14550A001 ®... - Page 7 TYPICAL SECTION DRAWING...
-
Page 8: Limited Warranty
Limited Warranty F.E. MYERS warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below. Product Warranty Period whichever occurs first: Jet pumps, small centrifugal pumps, submersible pumps and related accessories...
