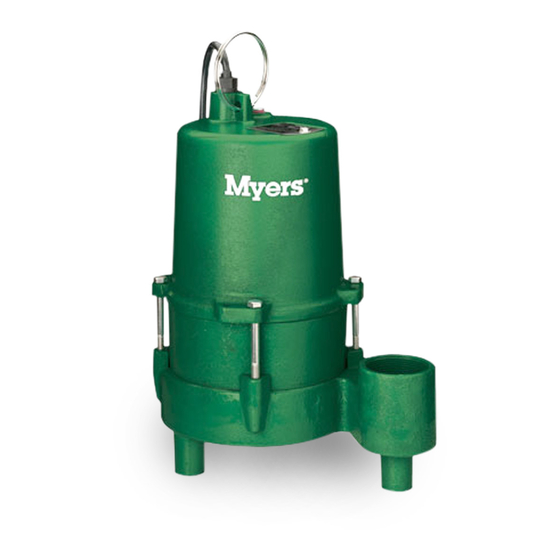

- Page 1 MYERS SUBMERSIBLE EFFLUENT PUMPS ME45MC -11 ME45AC-11 ME45MC-21 ME45AC-21 5937 0109 5937 0109 INSTALLATION AND OPERATION MANUAL pentair.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION ........................................PAGE Safety Information ....................................3 General Information ....................................4 Installation ........................................ 5 Operation & Maintenance ..................................6-7 Parts List ........................................8 Troubleshooting ....................................... 9 Warranty ........................................10 MY1066 (02-10-20) -
Page 3: Safety Information
SAFETY INFORMATION SAFETY SYMBOLS CALIFORNIA PROPOSITION 65 WARNING: This product and related accessories contain This is the safety alert symbol. When you see this symbol chemicals known to the State of California to cause cancer, on your pump or in this manual, look for one of the following birth defects or other reproductive harm. -
Page 4: General Information
GENERAL INFORMATION OVERVIEW SPECIFICATIONS This submersible effluent pump is designed for effluent and Power supply required: See Motor & Cord Table below wastewater removal, sump drainage, dewatering and flood control. Motor Duty: Continious Units have built in thermal overload protection with Discharge Adapter: 2"... -
Page 5: Installation
INSTALLATION OVERVIEW ELECTRICAL INSTALLATION Install the pump on a hard, level surface (cement, asphalt, etc.). For automatic operation, plug or wire the pump into an Never place the pump directly on earth, clay or gravel surfaces. automatic float switch or duplex controller. The pump will run Install the pump in a sump basin with a minimum diameter of 18"... -
Page 6: Operation & Maintenance
OPERATION & MAINTENANCE OPERATION MAINTENANCE An automatic overload protector in the motor will protect HAZARDOUS VOLTAGE: Always disconnect the motor from burning out due to overheating/overloading. electrical power to the pump and the control switch before When the motor cools down, the overload protector will removing the pump from the basin for service. - Page 7 OPERATION & MAINTENANCE CHECK OPERATION Remove four screws from the top of the motor and pull the motor straight up to remove it from the seal plate. Replace the pump in the sump, connect the plumbing, and then Tap the stationary half of the seal out of the seal plate. fill the sump to run the pump through one complete operational With a cardboard washer over the carbon face of the seal, cycle.
-
Page 8: Parts List
PARTS LIST Seal Plate Volute 5936 0109 KEY # DESCRIPTION ME45MC-11 ME45MC-11 30 ME45MC-11 50 ME45AC-11 ME45MC-21 ME45MC-21 50 ME45AC-21 Cord 115V 20' (6.1m) P117-1510 P117-1510 P117-1511 P117-1511 Cord 230V 20' (6.1m) P117-1512 Cord 115V 30' (9.1m) P117-1513 P117-1513 Cord 115V 50' (15.2m) 139670207 139670257 Tethered Float Switch... -
Page 9: Troubleshooting
TROUBLESHOOTING TROUBESHOOTING Sudden Starts. If the power is on to the pump when thermal overload resets, the pump may start without warning. If you are working on the pump, you may get an electrical shock or the impeller may catch fingers or tools. Disconnect the power before servicing the pump. -
Page 10: Warranty
Your only remedy, and MYERS’s only duty, is that MYERS repair or replace defective products (at MYERS’s choice). You must pay all labor and shipping charges associated with this warranty and must request warranty service through the installing dealer as soon as a problem is discovered. - Page 11 NOTES MY1066 (02-10-20)
