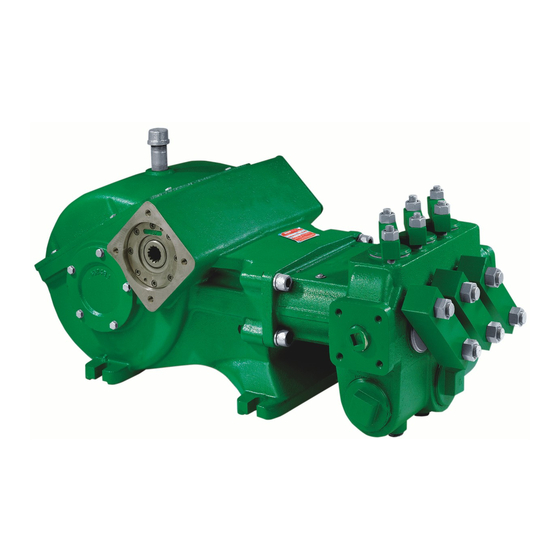

E series reciprocating pump (shaft drive)
Hide thumbs

Advertisement

Table of Contents

E Series
Reciprocating Pump (Shaft Drive)
Safety Instructions and Service Manual
E54-30
E54-30L
E70-23V
E70-23VL
E80-20V
E80-20VL
E110-14
E110-14L
CALL 1-800-577-8111 FOR SALES AND SUPPORT
Part No. 26866F000
Part No. 26866F010
Part No. 26866F100
Part No. 26866F110
Part No. 26866F300
Part No. 26866F310
Part No. 26866F200
Part No. 26866F210
1
26850A003

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E54-30 and is the answer not in the manual?

Questions and answers

Related Manuals for MYERS E54-30

Summary of Contents for MYERS E54-30

  • Page 1 CALL 1-800-577-8111 FOR SALES AND SUPPORT E Series Reciprocating Pump (Shaft Drive) Safety Instructions and Service Manual E54-30 Part No. 26866F000 E54-30L Part No. 26866F010 E70-23V Part No. 26866F100 E70-23VL Part No. 26866F110 E80-20V Part No. 26866F300 E80-20VL Part No. 26866F310 E110-14 Part No.
  • Page 2 CALL 1-800-577-8111 FOR SALES AND SUPPORT 26850A003...

  • Page 3: Specifications

    NOTE: Flow (GPM/LPM) based on 100% volumetric efficiency. Horsepower and kilowatts required are based on 85% overall efficiency. Horsepower requirements are at Myers pump input shaft. The efficiency of the hydraulic pump, hydraulic motor, etc. must be considered to determine horsepower required to drive complete system.

  • Page 4: General Instructions

    CALL 1-800-577-8111 FOR SALES AND SUPPORT GENERAL INSTRUCTIONS CAUTION: Positive Displacement Pumps must have a proper size and operable type of pressure regulating valve or pressure relief valve piped into the discharge line. This is mandatory to prevent damage to pump and piping or possible injury to personnel.
  • Page 5 Myers. Do not use this additive with synthetic oil. It appears to be so effective in reducing wear and friction that power train life may be doubled between overhauls.

  • Page 6: Installing Packing

    CALL 1-800-577-8111 FOR SALES AND SUPPORT CAUTION: Also inspect cylinders for linear grooving by Reasonable care and judgment should be used when running your thumbnail circumferentially around bore of installing the new cylinder. Clean out any accumulation cylinder. If any grooving is detected also replace of loose rust or corrosion in cylinder body.
  • Page 7 CALL 1-800-577-8111 FOR SALES AND SUPPORT REPLACEMENT OF VALVES A. Inspect tapered valve seat bore in fluid end for rust An assembly thimble should be used on small end of and wipe out excess with a rag. Place a new lower the piston rod to expand sealing edge as it is pushed on.
  • Page 8 CALL 1-800-577-8111 FOR SALES AND SUPPORT pinion shaft extension to remove bearing cup at opposite end. After removing pinion shaft, the remaining bearing cup can be removed by gently tapping against the peripheral edge of the cup with a brass rod. Fig.
  • Page 9 CALL 1-800-577-8111 FOR SALES AND SUPPORT rotate after the wrist pin is pressed in. Make sure that bearings must be installed with .003 to .005 in preload; either side of wrist pin does NOT protrude beyond the the following procedure will provide an accurate adjust- crosshead.
  • Page 10 CALL 1-800-577-8111 FOR SALES AND SUPPORT V AL VE LIFTERS Optional valve lifter assemblies are available, Part No. 13014A004K, three are required per pump. The purpose of these are to lift the inlet valve guide to allow liquid to drain from the cylinder chamber.

  • Page 11: Service Chart

    CALL 1-800-577-8111 FOR SALES AND SUPPORT WARNING: THIS PUMP MUST BE INSTALLED WITH A PRESSURE RELIEF VALVE IN DISCHARGE LINE SERVICE CHART SERVICE PROBLEM A. Failure of pump to build pressure with discharge closed B. Failure to hold pressure with discharge open C.
  • Page 12 CALL 1-800-577-8111 FOR SALES AND SUPPORT 4. Any piston pump, when operated at high pressure valves are replaced as soon as they start to show will not operate satisfactorily or quietly if a mixture this cutting action it will prevent the valve seat from of air and water is allowed to enter the pump becoming cut in a similar manner and keep the cost suction.
  • Page 13 F. E. Myers, 1101 Myers Parkway, Ashland, Ohio 44805-1969 419/289-1144, FAX: 419/289-6658, www.femyers.com Myers (Canada), 269 Trillium Drive, Kitchener, Ontario N2G 4W5...
  • Page 14 CALL 1-800-577-8111 FOR SALES AND SUPPORT 26850A003...
  • Page 15 CALL 1-800-577-8111 FOR SALES AND SUPPORT 26850A003...
  • Page 16 CALL 1-800-577-8111 FOR SALES AND SUPPORT “E” SERIES DRIVE POWER END (Pinion shaft shown rotated 59° for clarity) 26850A003...
  • Page 17 O-Ring, 5 1/8" O.D. 05876A098 E80-20 7206-0396-00A Washer, seal 14946A003 E110-14 7206-0358-00A Screw, cap 3/8"-16UNC x 1" 19101A013 Liner, cyl. E54-30 1.750 I.D. 26849A000 Cap, bearing, crankshaft 04624B004 E70-23 2.000 I.D. 20851A001 Cup, bearing, crankshaft 05675A013 E80-20 2.125 I.D. 20851A004...
  • Page 18 CALL 1-800-577-8111 FOR SALES AND SUPPORT NOTES...
  • Page 19 CALL 1-800-577-8111 FOR SALES AND SUPPORT NOTES...
  • Page 20 LIMITED WaRRaNTY f. E. MYERS warrants that its products are free from defects in material and workmanship for a period of twelve (12) months from the date of purchase or eighteen (18) months from the date of manufacture, whichever occurs first.
