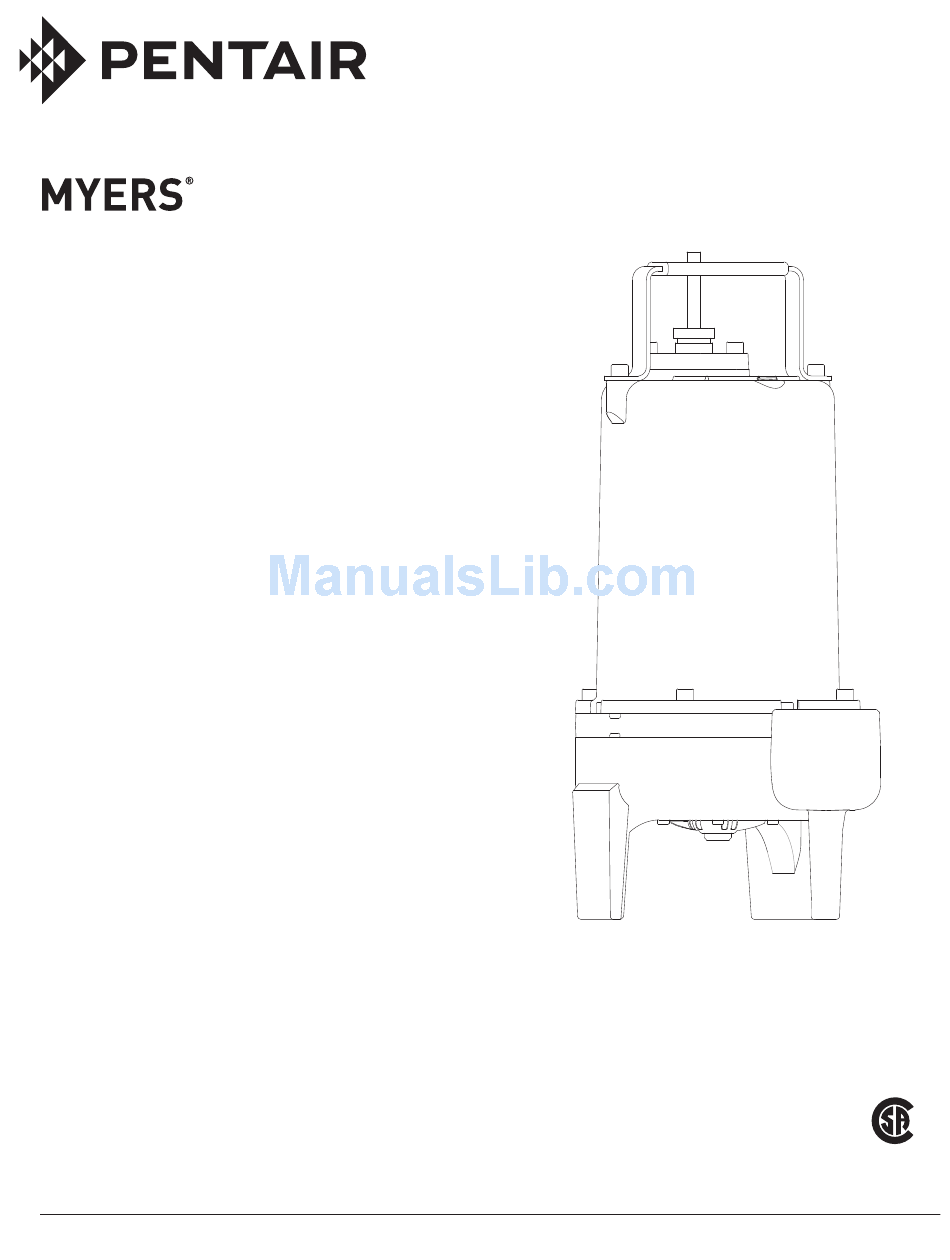

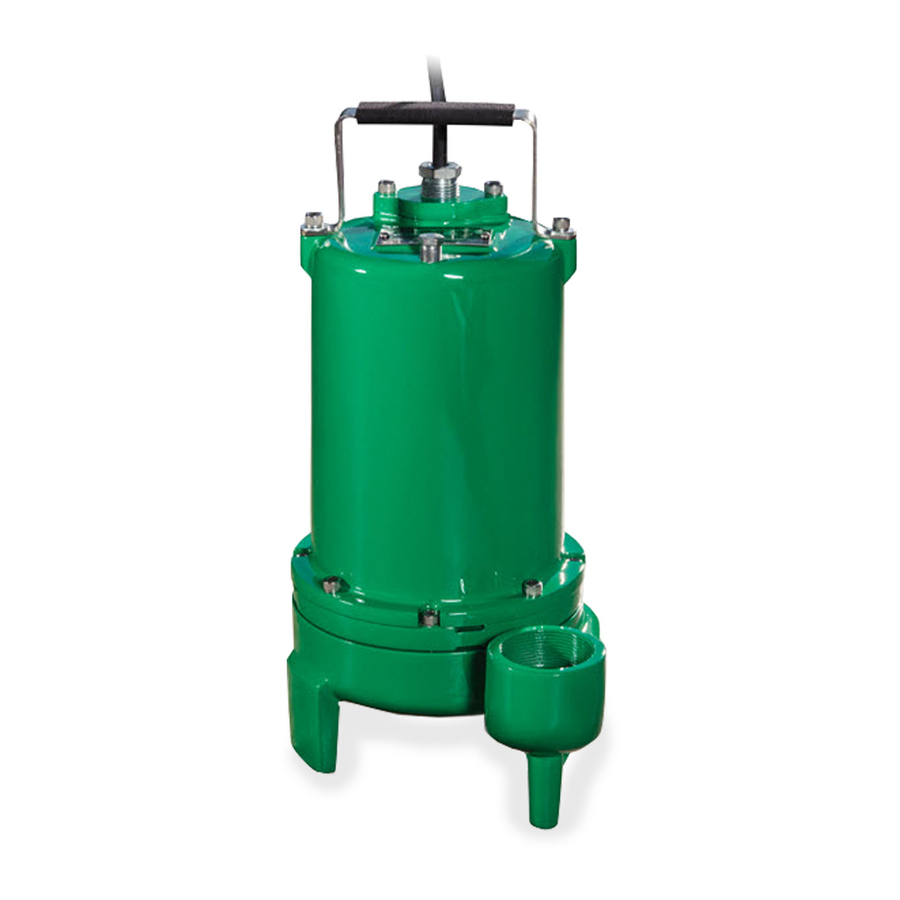

VR1 SERIES
GRINDER PUMPS
INSTALLATION AND SERVICE MANUAL
1 HP Grinder Pump for Residential Applications.
NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible
party who maintains the system.
Part # 23833A700 | © 2017 Pentair plc | 05/30/17
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MYERS VRS10A-11
Summary of Contents for MYERS VRS10A-11
- Page 1 VR1 SERIES GRINDER PUMPS INSTALLATION AND SERVICE MANUAL 1 HP Grinder Pump for Residential Applications. NOTE! To the installer: Please make sure you provide this manual to the owner of the equip ment or to the responsible party who maintains the system. Part # 23833A700 | ©...
- Page 2 Insert the bottom of the end shield. Do not overfill with oil. allen key into cutter retaining bolt and turn clockwise Only dielectric transformer oil obtained from a Myers to ensure cutters and impellers do not rub. Do not ®...
- Page 3 All repairs must be done at the factory or at an rotating cutter. authorized Myers service facility. 11. If rotating cutter rubs or drags on stationary cutter plate, recheck gap and re-shim rotating cutter.
-
Page 4: Troubleshooting Guide
11. Put pump upright and refill motor with Myers WIRING DIAGRAM – MARATHON ® submersible pump oil. DO NOT OVERFILL WITH OIL. Replace oil plug. Retighten plug firmly, but do not overtighten. 12. Be sure pump turns freely before connecting power. -
Page 5: Common Parts List
006280601 Shim; 1.00 O.D. x .625 I.D. x .005 006280581 Float Switch, Wide Angle 20' 145950201 (VRS10A-21) Float Switch, Wide Angle 20' 145951201 (VRS10A-11) Pump Catalog Number Pump Engineering Number Pump Type Cord Number Cord Length Motor Number VRS10A-11 28172B000... - Page 6 THIS PAGE INTENTIONALLY LEFT BLANK...
- Page 7 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 8: Limited Warranty
Pentair Myers will cover only the lower seal and labor thereof for all dual seal pumps. Under no circumstance will Pentair Myers be responsible for the cost of field labor, travel expenses, rented equipment, removal/reinstallation costs or freight expenses to and from the factory or an authorized Pentair Myers service facility.
