Introduction of Instrument

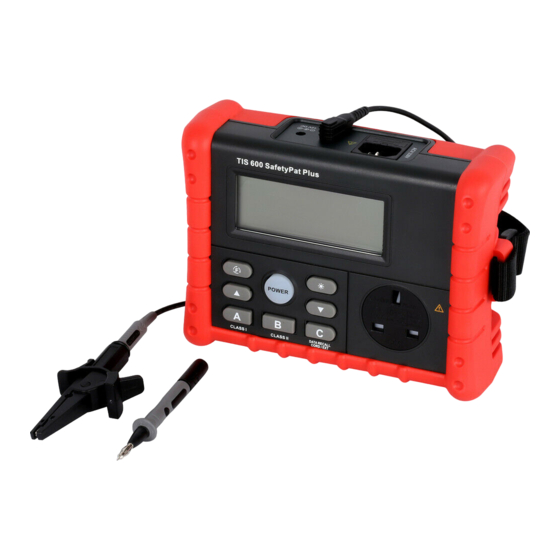

TIS 600 is a handheld safety tester which is mainly used for safety performance
tests of household appliances and industrial equipment (otherwise known as a
Portable Appliance Tester),
Its main functions are as follows:
Safety CLASS I test;
Safety CLASS II test;
Cord/Polarity test;
230V/110V Sub-Leakage test functionality
12V battery-powered, with automatic power-off function so that it will automatically
shut down if there is no operation within 5 minutes.
It has a backlight display function and will be automatically shut down within 30s.
Warning: Read this manual carefully before use and follow the relevant procedures
during the operation.
This kit includes:
※
TIS 600 safety tester
※
CORD mains test cord
※
Crocodile clip test cord (including a removable crocodile clip) 1 PCS
※
Probe
※
AA lithium battery 1.5V
※
Instructions
Instrument Description
1)
LCD
2)
F key
▲ key
3)
4)
A key
5)
POWER key
6)
B key
☀ key
7)
▼ key
8)
9)
C key
10) Output socket
11) Input socket
12) Protective grounding resistance test terminal
13) 12VDC power connector
1 PCS
1 PCS
1 PCS
8 PCS
1 PCS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TIS 600
Summary of Contents for TIS 600
- Page 1 Introduction of Instrument TIS 600 is a handheld safety tester which is mainly used for safety performance tests of household appliances and industrial equipment (otherwise known as a Portable Appliance Tester), Its main functions are as follows: Safety CLASS I test;...
- Page 2 During the replacement of the test leads, including the IEC lead (used when testing extension cables / C Type functionality) or Earth Bond leads these functions require recalibration of the TIS 600 before use. (This calibration will compensate for the lead resistance during testing) ①...
- Page 3 4.4 CLASS I test Connect the equipment to be tested to the TIS 600 with the mains test cord supplied with the appliance to the TIS 600 output socket and the other end to the power connector of the equipment to be tested.
- Page 4 Connect the equipment to be tested to the TIS 600 with the mains test cord: connect one end of the mains test cord to the TIS 600 output socket (10) and the other end to the power interface of the equipment to be tested.
- Page 5 Connect the socket to be tested to the TIS 600 with the CORD main test cord: connect one end of the IEC test cord to the TIS 600 input socket (11) and the other end to the socket to be tested.
- Page 6 Test Conditions: Function Range Accuracy Technical parameters 0Ω~20Ω Test current>200mA (R < 2Ω) Earth Bond/ ±5%+3 Earth If 0.01~0.1Ω passed, display “√” Resistance If 0.1~0.5Ω passed, display “√” and test flash If 0.51~19.9 failed, display“×” Test voltage 5VDC, test time 5S Test current>...
- Page 7 Display “LN √, LE×, NE×” Ground cord off Power: AA 1.5V*8 or 12VDC Low voltage detection: ≤ 9.5V 6.1 CLASS I test Grounding Insulation Leakage current Final test result performance test resistance test test “√” “√” “√” “PASS” “√” flashes “√”...
