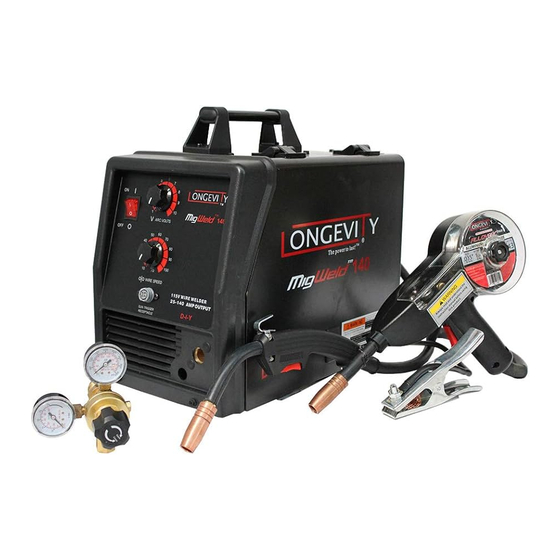

- Page 1 SpoolGun 140 compatible with the MigWeld 140 Operating Manual SpoolGun 140 Spool Gun compatible with the MigWeld 140 P a g e...
- Page 2 PG. 7-9: Warning and Safety Information PG. 10: Specifications PG. 11-12: Parts List PG. 13: Voltage Settings PG. 14: Loading Aluminum Wire PG. 15: Components and Controls PG. 16: P6 Connector Pin-out PG. 17: Enjoy your new welding accessory from LONGEVITY! P a g e...
- Page 3 SpoolGun 140 compatible with the MigWeld 140 THANK YOU! We, at LONGEVITY, want to thank you for purchasing our product. You are almost ready to experience Longevity Welding first hand. Longevity definitely appreciates your business and understand that this equipment may be overwhelming to setup and operate so we have prepared a manual that will assist you in understand your new plasma cutter/welder.
- Page 4 Complaints: complaints@longevity-inc.com Please join our welding forums to share welding tips and tricks, to receive useful information from customers who also use our products, and to be a part of the Longevity™ welding community at www.freeweldingforum.com Check out LONGEVITY Racing at www.longevity-racing.com...
- Page 5 In the event of product failure or malfunction, the purchaser/recipient must contact LONGEVITY™ GLOBAL, INC. to obtain an RMA (return or missing) number and a location of a designated repair facility. The welder, plasma cutter, multi-purpose unit, or any other welding related equipment comes with warranty on all internal components.
- Page 6 Out-of-Warranty Service Customers, who own machines that are out of warranty and require service, should contact us for an estimate. Longevity offers an exchange program on out of warranty units. We also help non LONGEVITY customers with repairs, replacement, and service.
- Page 7 The arc spray and metal spray from machine use may cause nearby fires. Use caution. If, after reviewing this manual, you have any problems in setting up or operating your machine, contact us at help@longevity-inc.com. P a g e...
- Page 8 SpoolGun 140 compatible with the MigWeld 140 WARNING ARC WELDING can be hazardous When using tool, basic safety precautions should always be followed to reduce the risk of personal injury and damage to equipment Read all instructions before using this tool! ELECTRIC SHOCK can KILL Improper use of electric arc welders can cause electric shock ,injury,and death! Take all precautions described in...
- Page 9 SpoolGun 140 compatible with the MigWeld 140 ARC RAYS can burn. Use a shield with the proper filter and cover plates to protect your eyes from sparks and the rays of the arc when welding or observing open arc welding. Head shield and filter lens should conform to ANSI Z87 standards.
- Page 10 SpoolGun 140 compatible with the MigWeld 140 Model SpoolGun 140 Welding Process Aluminum GMAW(MIG) Wire Sizes(Diameters) Solid wire 0.030 or 0.035 inches Spool Size 1 lb. weight ,4 inch diameter spool Rated Welding Current 130amps @30% duty cycle Rated Input Voltage 12VDC Wire Feed Rate 1.0-13m/min...
- Page 11 SpoolGun 140 compatible with the MigWeld 140 ITEM DESCRIPTION PART NO. Nozzle SB8-03-11 Contact tip SB8-03-01 Diffuser SB8-03-02 Neck Pipe SB8-03-03 Shielding Pipe SB8-03-07 Body Nut SB8-01-06 Tight Nut SB8-03-05 Hexagon Connector SB8-03-04 Liner Assembly SB8-03-06 Driver Assembly SB8-02-00 Copper Tag SB8-03-08 Trigger Assembly SB8-04-00...
- Page 12 SpoolGun 140 compatible with the MigWeld 140 12 | P a g e...
- Page 13 SpoolGun 140 compatible with the MigWeld 140 Voltage Tap Settings to Table D-1 (For MIG140). 1. Check the wire and then choose the polarity and decide if the gas should be used. 2. Connect earth clamp to the work piece and be sure the connection is in good condition and in correct polarity.
- Page 14 SpoolGun 140 compatible with the MigWeld 140 Loading Aluminum Wire (see FigureC-1) 1. Remove left cover (9), nut (8) ,conical spring(7) in sequence. Load4" (100mm) wire (6) on the spindle, (note: the direction Of the wire running is counterclockwise). Then install back all removed parts followed by conical spring, nut, left cover.
-
Page 15: Components And Controls
SpoolGun 140 compatible with the MigWeld 140 Components and Controls (See Figure B-1 ) Installation Spool Gun (See Figure B-1) Connecting the gun to the welding machine 1, Disconnect input power to the machine 2, Fully insert gun cable connection (welding power and gas supply) 3, Plug P6 Connector Control Leads into the P6 Connector Key Way on the machine and turning until it be located in the position 15 |... - Page 16 SpoolGun 140 compatible with the MigWeld 140 P6 Connector Pin-out (See Table B-2 and Figure B-3) Pin No. Function Gun Cable Lead Color Trigger Yellow Trigger Green + Motor - Motor White Drive Roll Replacement (see Figure B-1 ) Qne piece of 0.gram roll for SB8 installed in factory. Replace the drive roll if necessary.
- Page 17 SpoolGun 140 compatible with the MigWeld 140 LONGEVITY® Global, Inc. thanks you for your purchase and the opportunity to be able to serve you. If, after reviewing this manual, you have any problems in setting up or operating your machine, contact us at help@longevity-inc.com.
