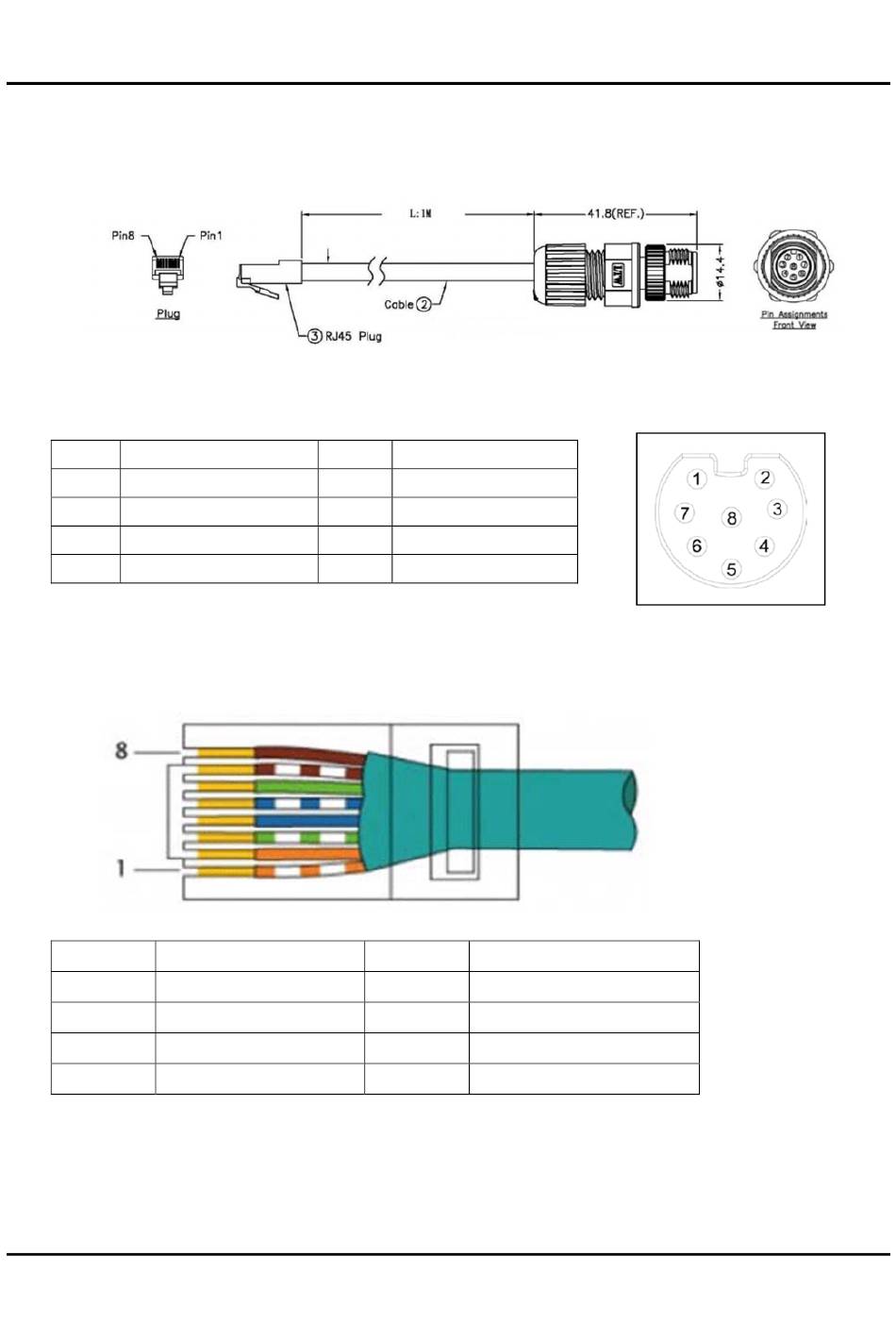

3.6 M12 Connecting to the Network
A. M12 to RJ45 Cable
B. M12 connector pin define
Pin
1
TD1+
3
TD2+
5
TD3‐
7
TD4+
C. CAT5 connector pin define
Pin
1
TD1+
3
TD2+
5
TD3‐
7
TD4+
User's Manual
Signal
Pin
2
4
6
8
Signal
Signal
TD1‐
TD3+
TD2‐
TD4‐
Pin
Signal
2
TD1‐
4
TD3+
6
TD2‐
8
TD4‐
3.0 External Connector Specification
Page 3-6
