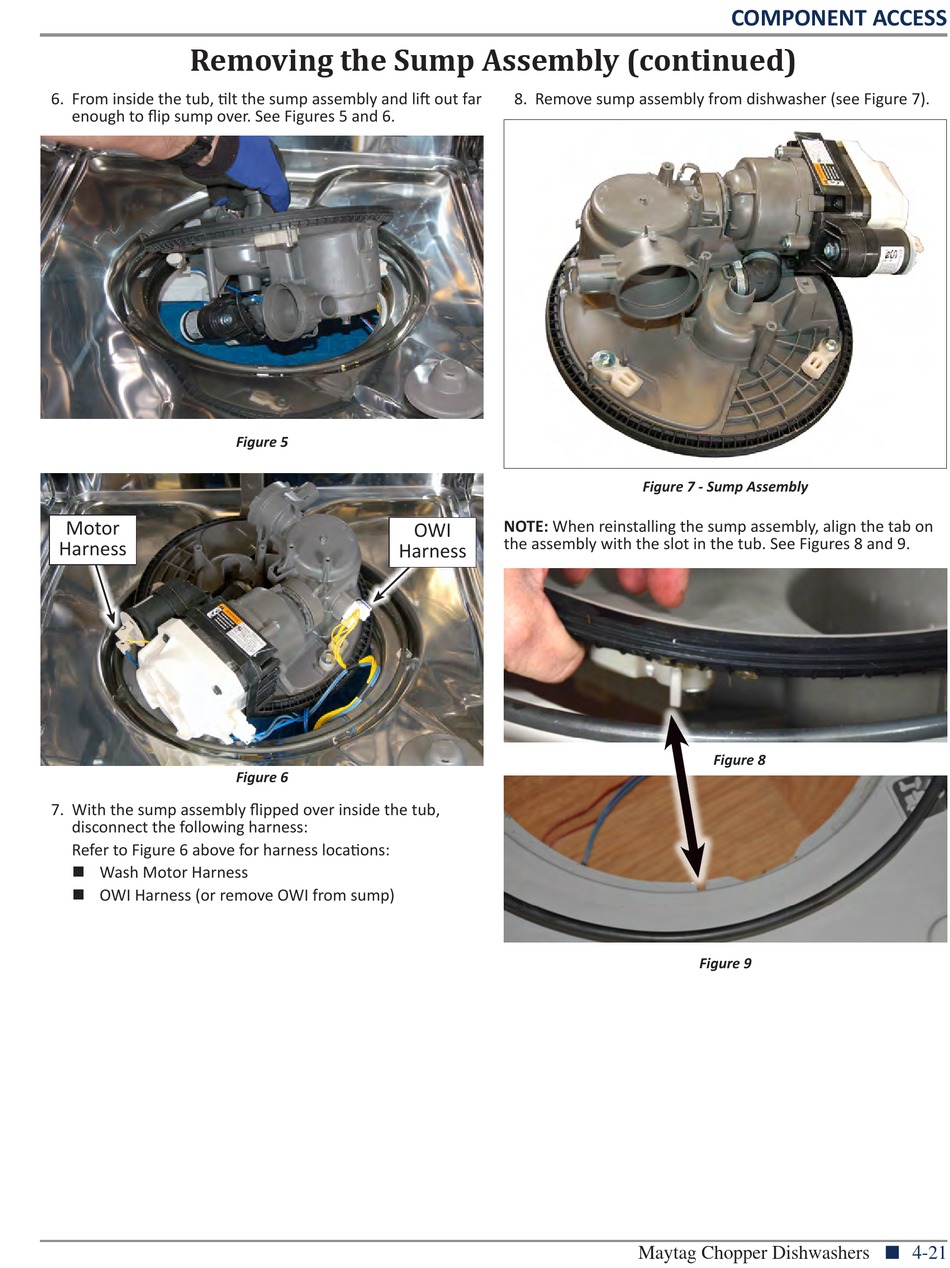

Maytag MDB series Service Manual page 69

Removing the Sump Assembly (continued)
6. From inside the tub, tilt the sump assembly and lift out far
enough to flip sump over. See Figures 5 and 6.
Motor
Harness
7. With the sump assembly flipped over inside the tub,
disconnect the following harness:
Refer to Figure 6 above for harness locations:
n Wash Motor Harness
n OWI Harness (or remove OWI from sump)
Figure 5
OWI
Harness
Figure 6
8. Remove sump assembly from dishwasher (see Figure 7).
Figure 7 - Sump Assembly
NOTE: When reinstalling the sump assembly, align the tab on
the assembly with the slot in the tub. See Figures 8 and 9.
