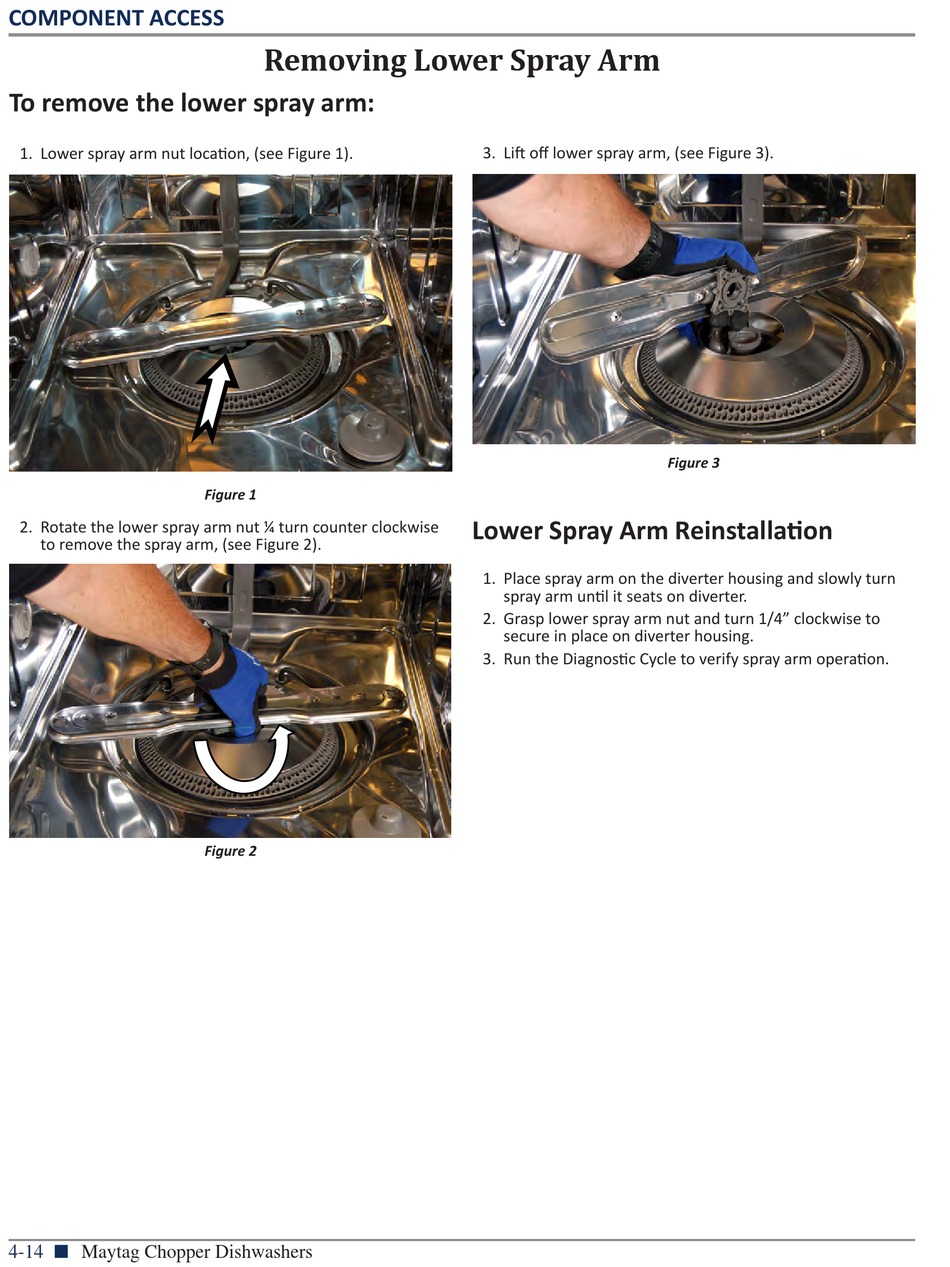

Removing Lower Spray Arm - Maytag MDB series Service Manual

COMPONENT ACCESS
To remove the lower spray arm:
1. Lower spray arm nut location, (see Figure 1).
2. Rotate the lower spray arm nut ¼ turn counter clockwise
to remove the spray arm, (see Figure 2).
4-14 Maytag Chopper Dishwashers
n

Removing Lower Spray Arm

Figure 1
Figure 2
3. Lift off lower spray arm, (see Figure 3).
Lower Spray Arm Reinstallation
1. Place spray arm on the diverter housing and slowly turn
spray arm until it seats on diverter.
2. Grasp lower spray arm nut and turn 1/4" clockwise to
secure in place on diverter housing.
3. Run the Diagnostic Cycle to verify spray arm operation.
Figure 3
