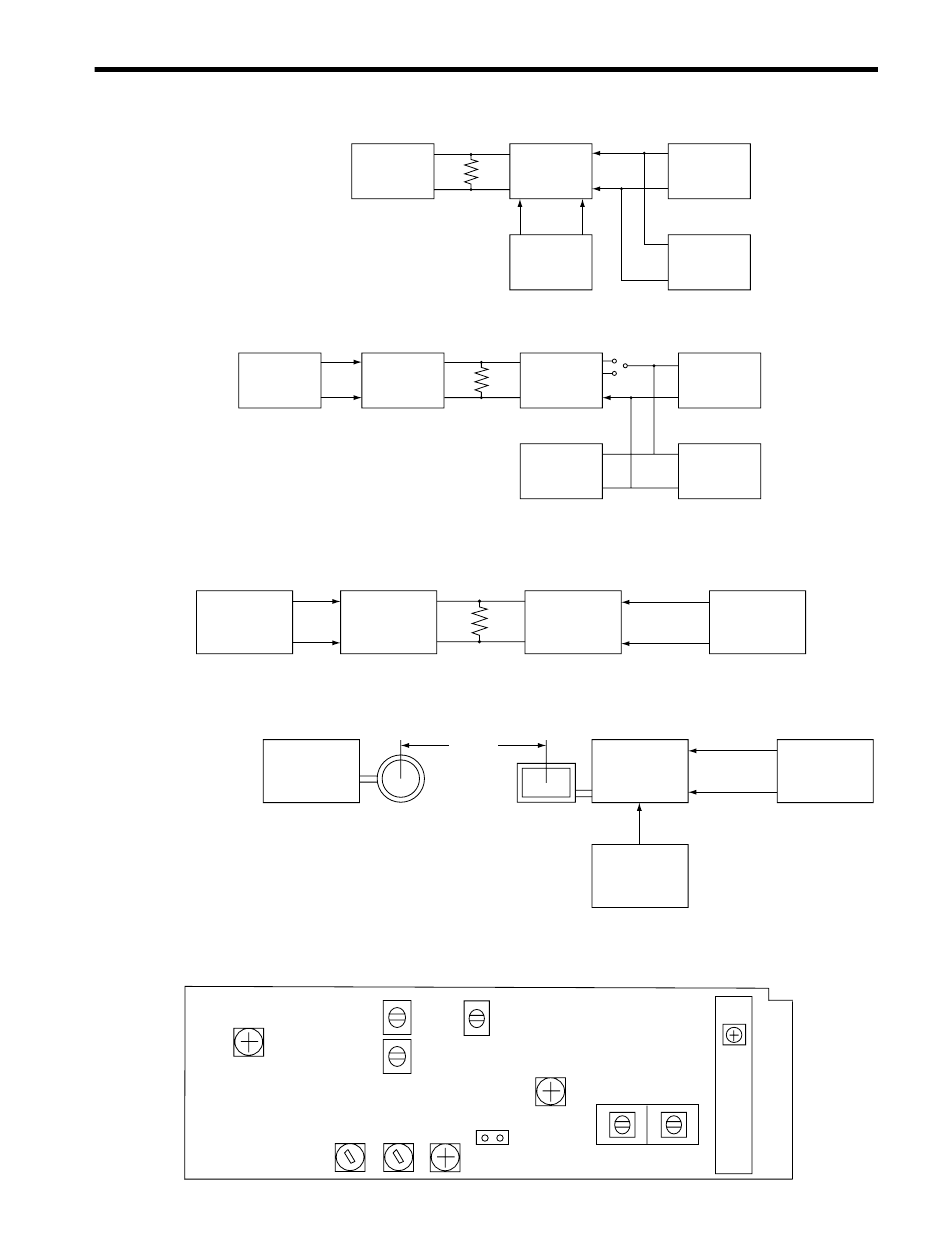

ADJUSTMENT
3. FM MEASUREMENT
Fig. 1
Fig. 2
FM
STEREO
GENERATOR
4. RDS MEASUREMENT
Fig. 3
RDS
GENERATOR
5. AM MEASUREMENT
Fig. 4
6. ADJUSTMENT POINTS
R951
FM SIGNAL
STRENGTH
ANTENNA
TERMINAL
FM
SINGAL
GENERATOR
ANTENNA
TERMINAL
FM
SIGNAL
GENERATOR
ANTENNA
TERMINAL
FM
SIGNAL
GENERATOR
60cm
AM
SIGNAL
GENERATOR
AM LOOP
ANTENNA
L942
FM IF
L941
L903 R956
L904
ANTENNA
TERMINAL
UNIT
TP-141
DC
MILLIVOLT
METER
OUTPUT
TERMINAL
L
R
UNIT
OSCILLOSCOPE
UNIT
TP701
UNIT
AM LOOP ANTENNA
ANTENNA TERMINAL
VT
(Accessory)
DIGITAL
MILLIVOLT
METER
L972
AM IF
L971
OSC
R941
P901
MUTING
STEREO
SEPARATION
3
GTP-506
DISTORTION
ANALYZER
AC
VOLTMETER
OR
OSCILLOSCOPE
DISTORTION
ANALYZER
AC
VOLTMETER
OSCILLO-
SCOPE
OUTPUT
TERMINAL
AC
VOLTMETER
OR
OSCILLOSCOPE
M901
FRONT END
