Summary of Contents for Adcom GTP-602

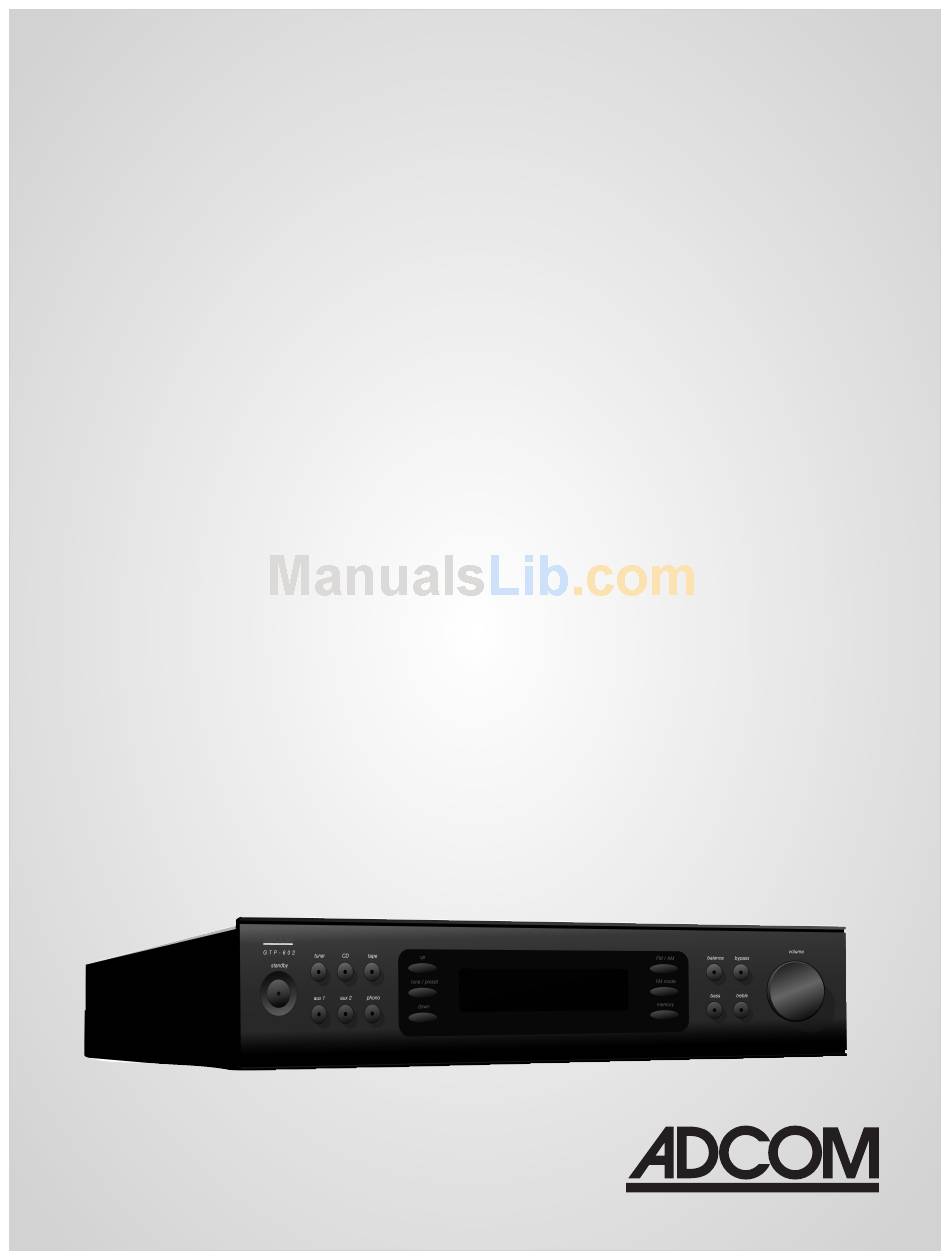

- Page 1 GTP-602 Stereo Tuner/Preamplifier...
-
Page 2: Welcome
In the world of high performance electronics, Adcom has done the impossible: make state-of-the- art components that are easy to use at an affordable price. In doing this, Adcom has created a rev- olution in the world of consumer electronics. By creating some of the most renowned components and offering them at affordable prices, Adcom has enabled more people to enjoy their favorite music and movies at top performance levels. -
Page 3: Table Of Contents
SERVICE INFORMATION ........14 WARRANTY ......... .. 15 GTP-602 SPECIFICATIONS ........ 16 ADCOM GTP-602 Owner’s Manual |... - Page 4 E. The device has been dropped, or the enclosure damaged. DO NOT ATTEMPT SERVICING OF THIS UNIT YOURSELF. | ADCOM GTP-602 Owner’s Manual REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. POUR PREVENIR LES CHOCS ELECTRIQUES NE PAS UTILISER CETTE FICHE...
-
Page 5: Safety Information
GTP-602. If you are placing a heat pro- ducing component (such as an ampli- fier) on top of or below the GTP-602, it is recommended that you allow at least three (3) inches vertical spacing for proper airflow. -
Page 6: Description Of Unit
The power button on the front panel toggles the unit between the “on” mode and the “stand-by” mode. For the GTP-602 to be in the “on” or “standby” mode, the rear panel power switch must be in the on postion (see next section for details). - Page 7 You can also press and hold the buttons to make faster adjustments. The GTP-602 tuner can receive AM, FM and FM stereo broadcasts. Up to 24 stations can be preset and accessed from the front panel or remote.
-
Page 8: Rear Panel Drawing
[ 9 ] Auxiliary Analog Inputs [ 10 ] Tape Inputs/Outputs 1.2 Inputs & Outputs System Connections Like the front panel, the GTP-602’s rear panel is carefully arranged to make hookup, configuration, and use as simple as possible. However, the GTP-602’s capabilities take some study... - Page 9 IR sensor that sends IR infor- mation to the microprocessor in the GTP-602. This feature can be very use- ful if the GTP-602 is placed behind a non transparent door or is used with an after market remote control system.
-
Page 10: Remote Control Drawing
GRC-820 Remote Control [ 18 ] Power Button [ 19 ] RDS Button [ 20 ] Tuner Preset Buttons [ 21 ] Scan Button [ 22 ] Bass and Treble [ 23 ] Bypass [ 24 ] Balance Control [ 25 ] GDV-850 Control [ 26 ] Volume Up [ 27 ] Volume Down [ 28 ] Mute... -
Page 11: Overview Of The Grc-800
2.1 GRC-820 Overview The GRC-820 is designed specifically for use with the GTP-602. We hope you find the layout of the controls simple to use. Note, there are also controls for use with an ADCOM DVD player, should you wish to utilize our GDV-850 in your system with the GTP-602. -
Page 12: Discrete Custom Codes For Installers
IR Command List for ADCOM GTP-602 1AE5h: Custom Code(A) Button Power 0x80 0x88 tuner 0x89 0x8A tape 0x8B aux 1 aux 2 0x84 phono 0x86 volume up 0xD5 0xD1 volume down mute 0x82 balance left 0xD9 balance right 0xDA treble up... -
Page 13: Resolving Problems
• Check station tuning. Switch off or move the source of the electrical noise • Check station tuning. Adjust or replace AM antenna • Check station tuning. Adjust or replace antenna • No remedy ADCOM GTP-602 Owner’s Manual |... -
Page 14: Troubleshooting
AC line surges, etc. If you experience unexpected behavior, or if the GTP-602 “locks up” and does not respond to control input, reset it by turning the rear panel power switch off. (Do not use the remote control’s “power” button). Wait 10 seconds and then turn the GTP-602 on using the rear panel power switch. -
Page 15: Your Responsibilities
The above warranties are subject to the following conditions: (1) You must retain and present your dated invoice or bill of sale to provide proof of original purchase from an ADCOM Authorized Dealer and coverage under the warranty period. (2) You must notify us within ten (10) days after you discover a defective product or part. -
Page 16: Gtp-602 Specifications
GTP-602 Specifications Input Impedance Audio ................47k Ω...
