Honda Civic SI 2002
uble DIN •
implate
Trimplate •
• ISO Snap in
Brackets(2)
•
DIN head unit
provision with pocket
•
ISO head unit
provision with pocket
•
Stacked ISO head
unit provision
•
Double DIN head unit
provision
•
Phillips screwdriver
•
Offset tool
T997860
COPYRIGHT© 2002 METRA ELECTRONICS CORPORATION
081302
99-7860
VEHICLE APPLICATIONS
Questions?
Call the Help Line:
(800)253 TECH
1-800-221-0932 • www.metraonline.com
Advertisement
Related Manuals for Metra Electronics 99-7860
Summary of Contents for Metra Electronics 99-7860

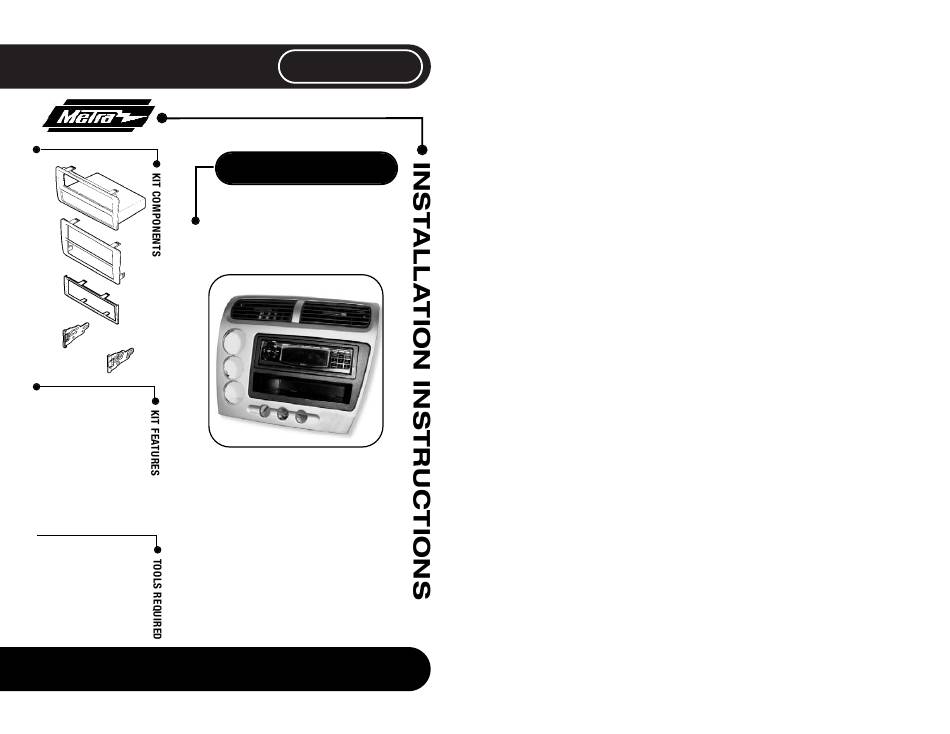

- Page 1 ISO head unit provision with pocket • Stacked ISO head unit provision • Double DIN head unit provision • Phillips screwdriver • Offset tool Questions? Call the Help Line: (800)253 TECH 1-800-221-0932 • www.metraonline.com T997860 COPYRIGHT© 2002 METRA ELECTRONICS CORPORATION 081302...
