Installation Instructions for 99-7804B
Honda Accord 2013-up
KIT FEATURES
• ISO DIN radio provision with pocket
• DDIN radio provision
• Painted two tone to match factory
• Retains factory color screen

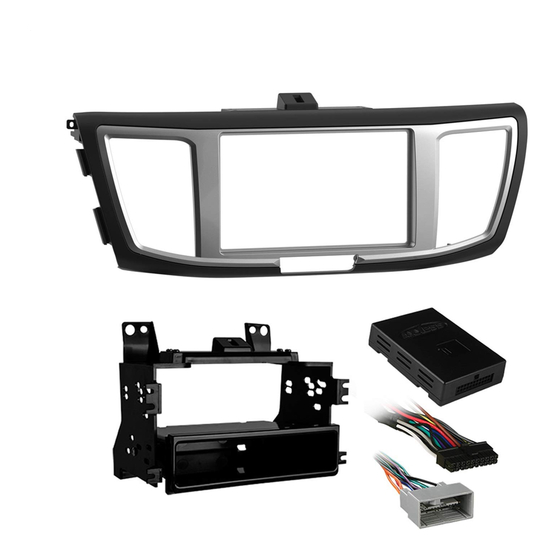

KIT COMPONENTS
• A)
Radio housing trim panel
• B) Brackets • C) Top bracket • D) Pocket • E) (6) White panel clips
• F) (8) #6 x 3/8" Phillips screws • G) (8) #8 x 3/8" Phillips screws • H) Display retention interface and harness (not shown)
B
A
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness: • Included
Antenna Adapter: • 40-HD11
99-7804B
C
D
F
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
CAUTION: Metra recommends disconnecting the
negative battery terminal before beginning any
installation. All accessories, switches, and especially
air bag indicator lights must be plugged in before
reconnecting the battery or cycling the ignition.
NOTE: Refer to the instructions included with the
aftermarket radio.
E
G
