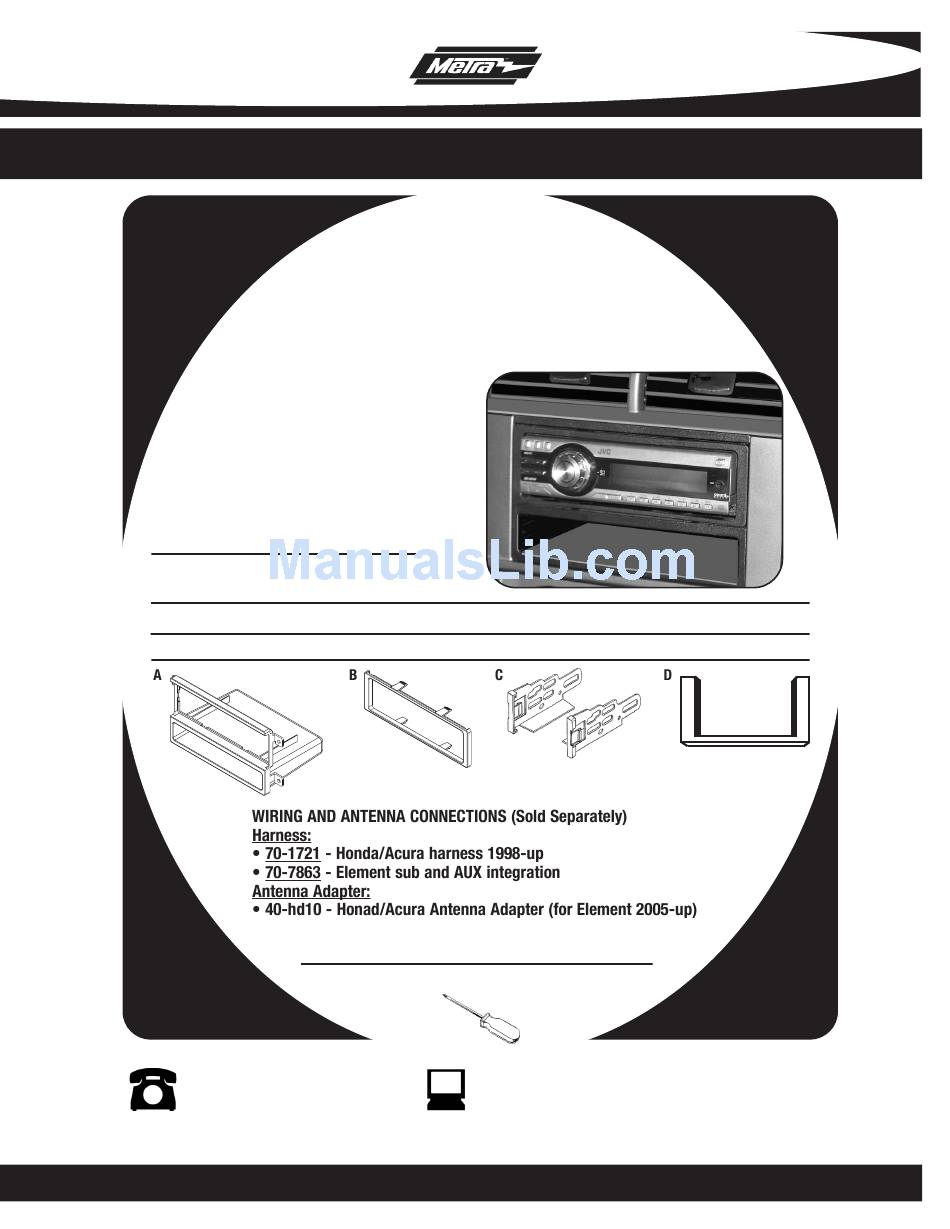

INSTALLATION INSTRUCTIONS FOR PART 99-7863
APPLICATIONS
Honda Element
2003-up
99-7863
KIT FEATURES
• DIN Head Unit Provision with pocket
• ISO Head Unit Provision with pocket
KIT COMPONENTS
• A) Radio Housing • B) ISO Trimplate • C) ISO Snap in Brackets • D) O.E. Replacement Panel
TOOLS REQUIRED:
Phillips Screwdriver
1-800-221-0932
www.metraonline.com
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
Advertisement
Related Manuals for Metra Electronics 99-7863
Summary of Contents for Metra Electronics 99-7863
- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7863 APPLICATIONS Honda Element 2003-up 99-7863 KIT FEATURES • DIN Head Unit Provision with pocket • ISO Head Unit Provision with pocket KIT COMPONENTS • A) Radio Housing • B) ISO Trimplate • C) ISO Snap in Brackets • D) O.E. Replacement Panel...
-
Page 2: Table Of Contents
99-7863 TABLE OF CONTENTS Dash Disassembly - Honda Element 2003-up ......1 Kit Assembly - DIN Head Unit Provision with Pocket . -
Page 3: Dash Disassembly
99-7863 HONDA ELEMENT 2003-UP Disconnect the negative battery terminal to prevent an accidental short circuit. Unsnap and remove shift lever trim panel. For manual transmis- sion models, untwist shift knob. (Figure A) Unsnap and remove center dash panel. (Figure B) -
Page 4: Kit Assembly
99-7863 DIN HEAD UNIT PROVISION WITH POCKET Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down. (Figure A) Slide the aftermarket radio into the cage and secure. (Figure B) NOTE: Models equipped with factory DDIN radio will require supplied O.E. -
Page 5: Iso Head Unit Provision With Pocket
(Figure B) Snap the ISO trimplate over the head unit. (Figure B) NOTE: Models equipped with factory DDIN radio will require supplied O.E. replacement panel. (Figure C) Continue to final assembly. 99-7863 KIT ASSEMBLY... -
Page 6: Final Assembly
Dimmer ..Orange / White *NOTE: When a Black wire is not present, ground radio to vehicle chassis. All colors may not be present on all leads due to manufacturer’s specifications. 99-7863 FINAL ASSEMBLY A) Strip wire ends back 1/2"... - Page 7 99-7863 NOTES...
- Page 8 99-7863 INSTRUCTIONS 1-800-221-0932 www.metraonline.com REV. 07/26/11 © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-7863...
