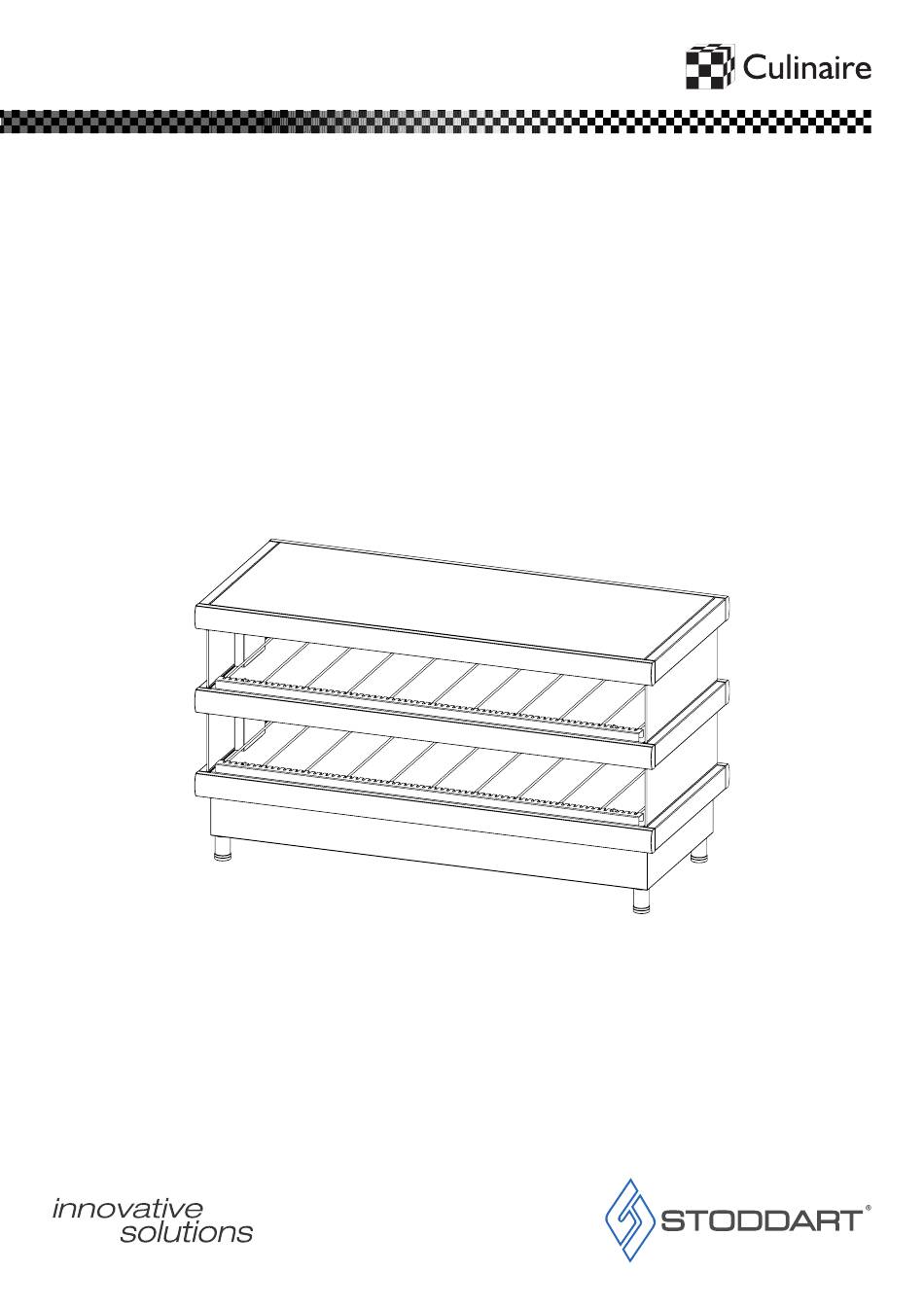

SPECIFICATION, INSTALLATION
AND OPERATION MANUAL
READ ALL INSTRUCTIONS BEFORE USE
HOT FOOD SLIDES
ANGLED & FLAT SHELVES
Models:
CH.HFSAG.2.750, CH.HFSAG.2.900, CH.HFSAG.2.1200 & CH.HFSAG.2.1500
CH.HFSFG.2.750, CH.HFSFG.2.900, CH.HFSFG.2.1200 & CH.HFSFG.2.1500
A guide on the use, care and maintenance
of your quality Culinaire product
Revision Date: 25/02/2019
Advertisement
Table of Contents
Related Manuals for Culinaire CH.HFSAG.2.750
Summary of Contents for Culinaire CH.HFSAG.2.750
- Page 1 AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE HOT FOOD SLIDES ANGLED & FLAT SHELVES Models: CH.HFSAG.2.750, CH.HFSAG.2.900, CH.HFSAG.2.1200 & CH.HFSAG.2.1500 CH.HFSFG.2.750, CH.HFSFG.2.900, CH.HFSFG.2.1200 & CH.HFSFG.2.1500 A guide on the use, care and maintenance of your quality Culinaire product Revision Date: 25/02/2019...
- Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
-
Page 3: Table Of Contents
Your New Culinaire Product � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �... -
Page 4: Introduction
Your New Culinaire Product Thank you for choosing this quality Culinaire product� All our products are designed and made to meet the needs of food service professionals� By using, caring and maintaining your Culinaire product according to these instructions, your Culinaire product should give you many years of reliable service�... -
Page 5: Attention
Introduction Attention Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance� Keep this booklet on hand in a safe place for future reference by other operators or users� Disclaimer The manufacturer and distributor cannot be held responsible or liable for any injuries or damages of any kind occurred to persons, units or others, due to abuse and misuse of this unit in regards to installation, removal, operation, servicing or maintenance, or lack of conformity with the instructions indicated in this documentation�... -
Page 6: Installation
Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit: e�g� - For smaller items use two people - For large items a lift truck or fork pallet trucks (the forks should reach more completely beneath the unit)� Unpacking •... -
Page 7: Electrical Connection
Installation Electrical Connection WARNING This unit must be installed in accordance with AS/NZS 60335.1 Information Aggregate electrical ratings of the Unit are expressed in kilowatts in this manual� Single Phase Units: A terminal block for on-site connection, by a licensed electrician will be supplied inside the service compartment of the unit and be indicated •... -
Page 8: Specification
= 2 Tier xxxx = 750 - 750mm wide unit = 900 - 900mm wide unit = 1200 - 1200mm wide unit = 1500 - 1500mm wide unit CH.HFSxG.2.750 SPECIFICATIONS CH.HFSAG.2.750 / CH.HFSFG.2.750 Model Width 750mm Depth 680mm Height 781mm / 845mm... -
Page 9: Ch.hfsxg.2.900
Specification CH.HFSxG.2.900 SPECIFICATIONS Model CH.HFSAG.2.900 / CH.HFSFG.2.900 Width 900mm Depth 680mm Height 781mm Voltage 220-240V, 50Hz Power (kW) 2.22kW Connection 1 Phase, Neutral, Earth Temperature Range 65-90°C End Elevation (HFSFG model) Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 8... -
Page 10: Ch.hfsxg.2.1200
Specification CH.HFSxG.2.1200 SPECIFICATIONS CH.HFSAG.2.1200 / CH.HFSFG.2.1200 Model Width 1200mm Depth 680mm Height 781mm Voltage 220-240V, 50Hz Power (kW) 3.4kW Connection 1 Phase, Neutral, Earth Temperature Range 65-90°C End Elevation (HFSFG model) Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 9... -
Page 11: Ch.hfsxg.2.1500
Specification CH.HFSxG.2.1500 SPECIFICATIONS CH.HFSAG.2.1500 / CH.HFSFG.2.1500 Model Width 1500mm Depth 680mm Height 781mm Voltage 220-240V, 50Hz Power (kW) 3.49kW Connection 1 Phase, Neutral, Earth Temperature Range 65-90°C End Elevation (HFSFG model) Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 10... -
Page 12: Operation
Operation Initial Start-up & Operation Lights Bottom Shelf Lights Top Shelf Initial Start-up • Before switching ON the unit, ensure the unit is installed correctly� • Switch the power ON and check that the switches and knobs switch ON the lights and heaters� •... -
Page 13: Gn Pans, Loading Hot Food Slides
Operation GN Pans, Loading Hot Food Slides Gastronorm Pans • All Gastronorm pans and extra dividers are sold separately • Each module can hold one 1/1 pan, two 1/2 pans, three 1/3 pans, four 1/4 pans, six 1/6 pans and nine 1/9 pans� Pan depths are 25mm, 65mm, 100mm and 150mm�... -
Page 14: Cleaning
Operation Cleaning General Information • Threaded fasteners can loosen in service� Regular inspection and adjustment should be carried out as required • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • Do NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •... -
Page 15: Cleaning Schedule
Operation Cleaning Schedule • Daily cleaning is required for the Banquet Cars, Warming Drawers and external surfaces� This will help to maintain and prolong the efficiency of your unit • The unit should be cleaned at the end of each work day Materials Required •... -
Page 16: Replacing Heat Lamp Bulbs
Operation Replacing Heat Lamp Bulbs • Bulbs should be allowed to cool for 10 - 15 minutes before removing • All heat lamp fi tting are spring loaded for easy replacement • Heat lamp bulbs should only be replaced with gloves or a soft cloth� No skin should touch the new bulb� If skin touches the new bulb, wipe the bulb with a soft cloth and rubbing alcohol to remove all possible oils 1�... -
Page 17: Troubleshooting
Operation Troubleshooting • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people. - Page 18 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 17...
- Page 19 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 18...
- Page 20 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz Email: spares@stoddart.co.nz...
