CULINAIRE MOBILE SOAK SINK
Manufactured by:
Tom Stoddart Pty Ltd
39 Faisal Hatia Way, Karawatha, QLD, 4117
Ph: 07 3440 7600 (int +61 7 3440 7600)
Fax: 07 3345 6403 (int +61 7 3345 6403)
Due to continuous product research and development, the information contained herein is subject to change
Revision Date: 5/03/2012
Version 1
INSTALLATION, OPERATION & MAINTENANCE
Models: CD.SSM.T1.
FEATURES
Grade 304 Stainless Steel Construction in No. 4
Satin Finish
50mm BSP Drainage Valve
Lockable Castors
Rounded Edges for Easy Cleaning
Tel: 1300 79 1954 Web: www.stoddart.com.au
Culinaire Mobile Soaking Sink CD.SSM.T1.
d
h
.
Email: fse@stoddart.com.au
d
h
.
Advertisement
Table of Contents
Related Manuals for Culinaire CD.SSM.T1.d.h
Summary of Contents for Culinaire CD.SSM.T1.d.h

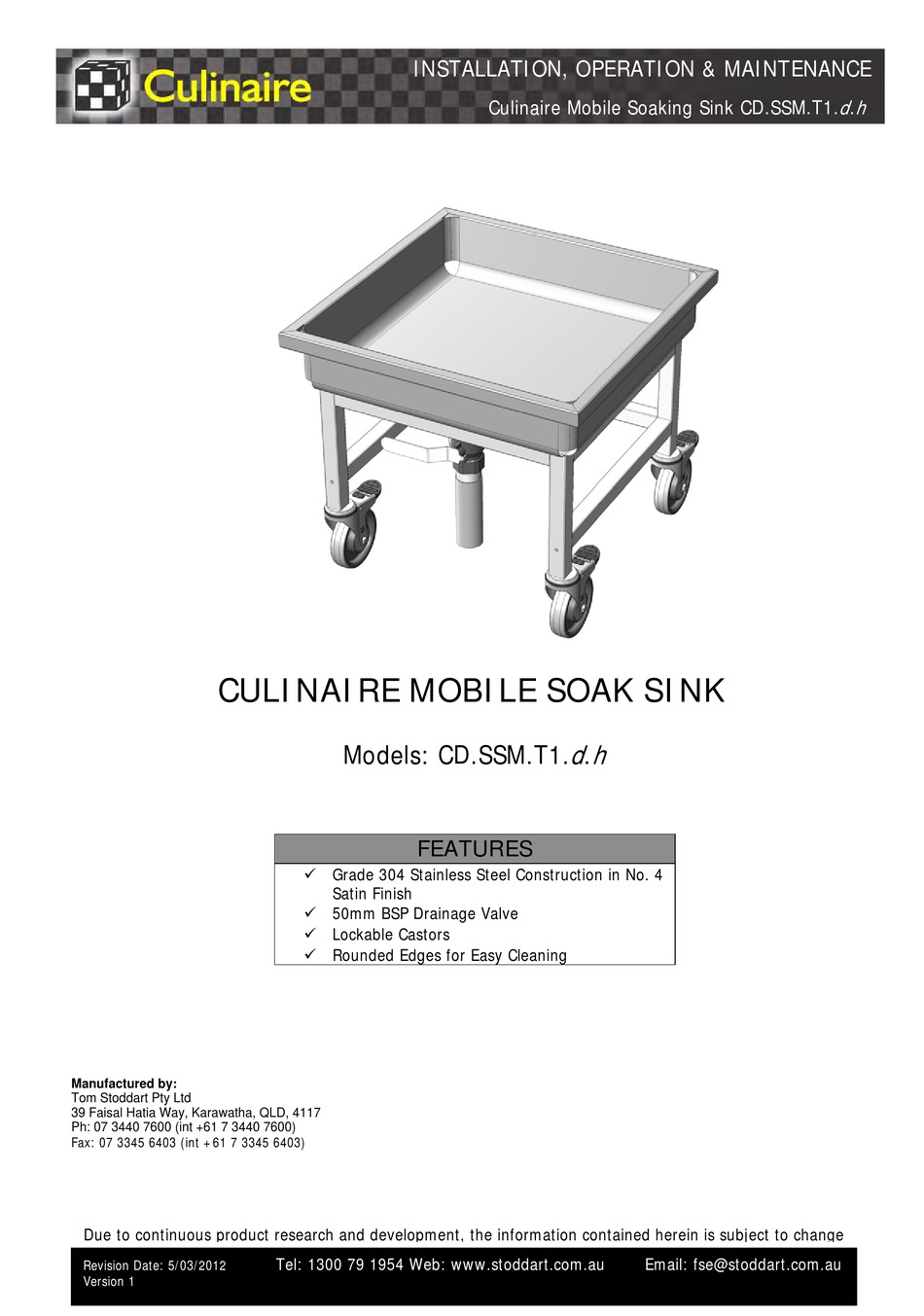

- Page 1 INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. CULINAIRE MOBILE SOAK SINK Models: CD.SSM.T1. FEATURES Grade 304 Stainless Steel Construction in No. 4 Satin Finish 50mm BSP Drainage Valve Lockable Castors Rounded Edges for Easy Cleaning Manufactured by: Tom Stoddart Pty Ltd...
-
Page 2: Table Of Contents
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Table of Contents General Recommendations ................2 Important Information......................2 General Safety .........................2 Service ........................2 Sharp Edges ......................2 Specifications ....................3 Introduction ........................3 Product Overview ....................3 Technical.........................4 Code Explanation ....................4 Technical Specification..................4 Technical Diagram....................5 Installation .......................6... -
Page 3: General Recommendations
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. General Recommendations Important Information Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians. -
Page 4: Specifications
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Specifications Introduction ® The Culinaire Soak Sink from Stoddart Manufacturing is easy to push and manoeuvre. The Soak Sink is entirely made of stainless watertight construction with a ball valve fitted to the waste. This product is suitable for the soaking of cutlery and crockery, a 500mm x 500mm dishwasher basket fits perfectly inside the sink. -
Page 5: Technical
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Technical Code Explanation Code Explanation ® Culinaire Dish Handling Soak Sink - Mobile Type 1 – 600mm x 600mm Square Standard Depths 125 = 125mm 300 = 300mm 500 = 500mm... -
Page 6: Technical Diagram
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Technical Diagram Plan View Front Elevation End Elevation Due to continuous product research and development, the information contained herein is subject to change Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au... -
Page 7: Installation
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Installation General Precautions WARNING! Installation must comply with local health & safety requirements. Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Do NOT use this soak sink for other than its intended use. -
Page 8: Setting Up
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Setting Up Handling Use suitable means to move the soak sink e.g. a lift truck or fork pallet trucks. Personal protective gear MUST be used when handling the unit... -
Page 9: Operation
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Operation General Recommendations Our soak sinks have been designed to give high performance. Hence, the soak sink must be used exclusively for the purpose for which it has been designed. Read these instructions carefully and retain for future reference. -
Page 10: Soak Sink Operation
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Soak Sink Operation Sink Strainer The sink should only be used for soaking cutlery. No Tray glassware or crockery should be cleaned in the sink Only use detergent within the sink when soaking cutlery, no other chemicals should be used. -
Page 11: Cleaning
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Cleaning Schedules The unit should be cleaned at the end of the EVERY WORK DAY. Information Cleaning is recommended for health and safety purposes and to prolong the life of the unit. -
Page 12: Maintenance
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Maintenance Routines Schedules To maintain optimal performance cleaning and maintenance schedules must be regular and thorough. The unit should be cleaned at the end of the EVERY WORK DAY. -
Page 13: Replacements
INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. Replacements Strainer Tray, BSP Valve, Castors The strainer tray, BSP valve and castors can be replaced by the manufacturer. They MUST be fitted and replaced by a qualified technician. -
Page 14: Warranty
Warranty Australian Warranty and Contact Details As the exclusive manufacturer and distributor of Culinaire products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of a Culinaire product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose. - Page 15 INSTALLATION, OPERATION & MAINTENANCE Culinaire Mobile Soaking Sink CD.SSM.T1. 3.2. Stoddart's warranty liability under clauses 1 and 2 of these Terms exclude or do not cover: i. The matters acknowledged by Customer in clause 3.1; ii. Situations where Stoddart is not satisfied (acting reasonably) the equipment or any part of the equipment has been used in accordance with the Instructions including misuse, neglect, unauthorised alteration, incorrect installation, power surges, accident, use of inappropriate chemicals, flooding, fire or act of God;...
-
Page 16: Warranty Request Form
WARRANTY REQUEST FORM Phone: (07) 3440 7600 Int: +617 3440 7600 Phone: 1300 307 289 Fax: (07) 3344 6166 Int: +617 3344 6166 Email: service@stoddart.com.au To ensure we can provide the best possible service we require you to complete this form. Make, model and serial number, along with other essential information.
