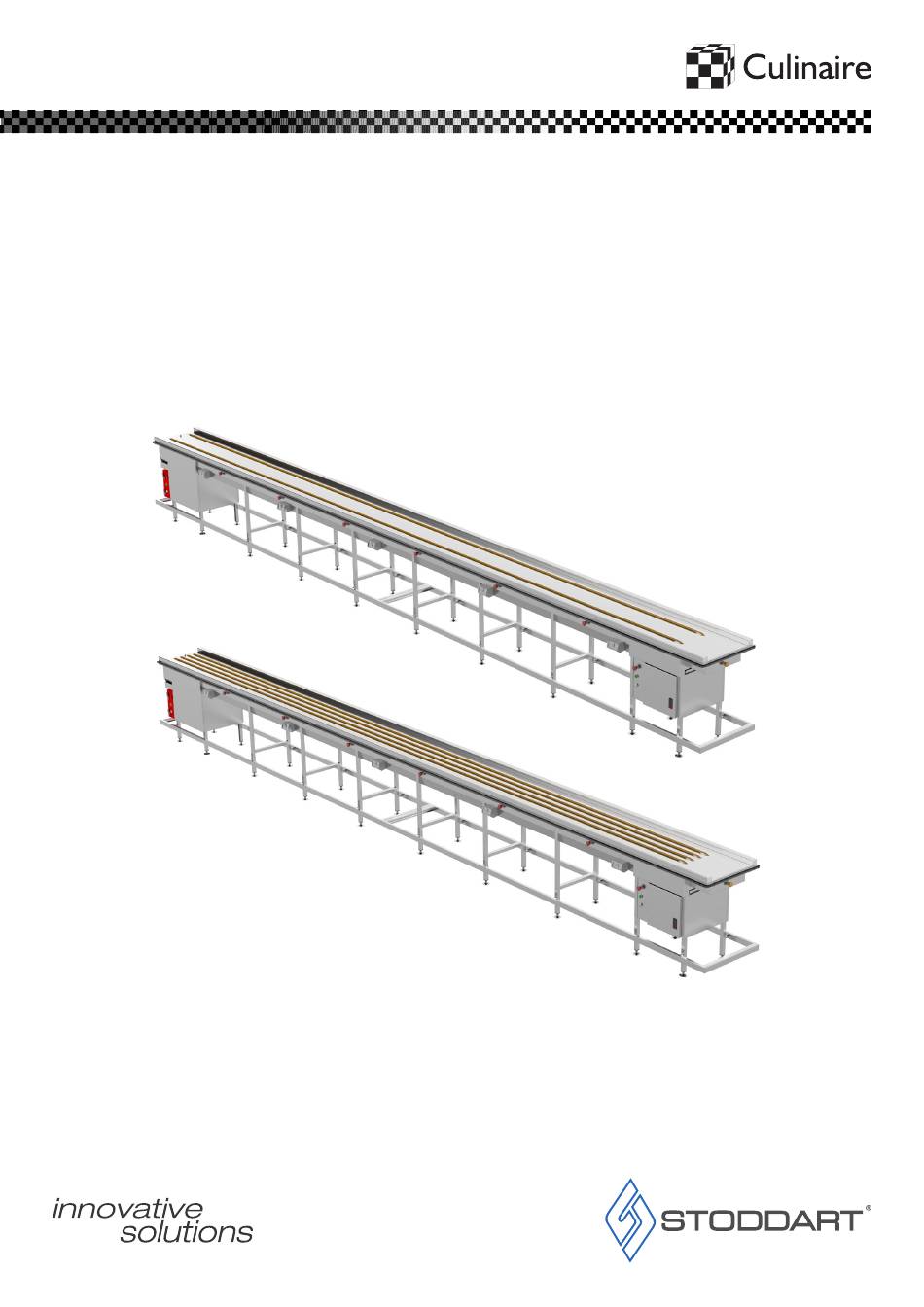

SPECIFICATION, INSTALLATION
AND OPERATION MANUAL
READ ALL INSTRUCTIONS BEFORE USE
MEAL PLATING CORD CONVEYOR
Models:
CD.MP.C2.xx / CD.MP.C4.xx
A guide on the use, care and maintenance
of your quality Culinaire product
Revision: A - 20/01/2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD.MP.C2 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Culinaire CD.MP.C2 Series

Summary of Contents for Culinaire CD.MP.C2 Series

  • Page 1 SPECIFICATION, INSTALLATION AND OPERATION MANUAL READ ALL INSTRUCTIONS BEFORE USE MEAL PLATING CORD CONVEYOR Models: CD.MP.C2.xx / CD.MP.C4.xx A guide on the use, care and maintenance of your quality Culinaire product Revision: A - 20/01/2021...
  • Page 2 Page Intentionally Left Blank Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 1...
  • Page 3 Your New Culinaire Product � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � �...

  • Page 4: Your New Culinaire Product

    Thank you for choosing this quality Culinaire product� All Culinaire products are designed and manufactured to meet the needs of food service professionals� By caring for and maintaining your new Culinaire product in accordance with these instructions, will provide many years of reliable service�...

  • Page 5: Warranty And Registration

    Introduction Warranty & Registration Australia and New Zealand Warranty Warranty Period All Stoddart manufactured and distributed products are covered by Stoddart’s standard Australia and New Zealand Product Warranty (minimum 12 month on-site parts and labour, terms and conditions apply)� Further to this standard warranty, certain products have access to an extended warranty�...

  • Page 6: Installation

    Installation Product Overview Code Explanation = Culinaire Dish Handling = Meal Plating = Cord Conveyor CD�MPO�C2�8000�VAR: x15 Emergency Stop Buttons x5 10amp GPO x5 15amp GPO Control Panel Due to continuous product research and development, the information contained herein is subject to change without notice.
  • Page 7 Installation Setting Up WARNING Improper installation, adjustments, alterations, service or maintenance can cause property damage, injury or death. Handling • Use suitable means to move the unit: e�g� - For smaller items use two people - For large items a fork lift, pallet trolley or similar (the forks should reach completely beneath the pallet) Unpacking •...

  • Page 8: Electrical Connection

    Installation Electrical Connection Information WARNING This unit must be installed in accordance with AS/NZS 60335.1 Some procedures in this manual require the power to the equipment to be turned off and isolated. Turn the power OFF at the power point and unplug the power supply lead by the plug body.

  • Page 9: Technical Specifications

    Specification Technical Specifications CD.MP.C2.8000.VAR SPECIFICATIONS Model CD.MP.C2.8000.VAR Width 8060mm Depth 610mm Height 925mm Voltage 415V 50/60Hz Phase 3Ø + N + E 610 - BOTTOM BUMPER RAIL O/A L1: 26Amp L2: 18Amp L3: 15Amp 550 - DECK O/A 594 - TOP BUMPER RAIL O/A Due to continuous product research and development, the information contained herein is subject to change without notice.
  • Page 10 Specification CD.MP.4C.S.8000 SPECIFICATIONS Model CD.MP.4C.S.8000 Width 8060mm Depth 610mm Height 925mm Voltage 415V 50/60Hz Phase 3Ø + N + E L1: 26Amp L2: 18Amp L3: 15Amp Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 9...

  • Page 11: Initial Start-Up & Operation

    Operation Initial Start-up & Operation IMPORTANT • Switch on the unit 30 minutes prior to plating. It is not recommend to run longer than 3 hours • The red emergency stop button, next to the green start button, should be used for general purpose as well as in an emergency.
  • Page 12 Operation Cleaning General Information • Cleaning is recommended for health and safety purposes and to prolong the life of the unit • DO NOT use abrasive pads or cleaners on the stainless steel or any other metal parts of the unit •...
  • Page 13 Operation Cleaning Schedule • Daily cleaning is required for Plate Dispensers and external surfaces� This will help to maintain and prolong the efficiency of your unit • After use, the plates should be cleaned STRAIGHT AWAY • The unit should be cleaned at the end of each work day •...

  • Page 14: Troubleshooting Procedures

    Operation Troubleshooting Troubleshooting Procedures • If any faults/issues occur with the unit, follow the below troubleshooting procedures • If the troubleshooting procedures do not correct the problem, contact the Stoddart Service Department WARNING Technician tasks are only to be completed by qualified service people.
  • Page 15 Due to continuous product research and development, the information contained herein is subject to change without notice. www.stoddart.com.au www.stoddart.co.nz Page 14...
  • Page 16 Australia Service / Spare Parts Sales Tel: 1300 307 289 Tel: 1300 79 1954 Email: service@stoddart.com.au Email: sales@stoddart.com.au Email: spares@stoddart.com.au Service Request www.stoddart.com.au Australian Business Number: 16009690251 New Zealand Service / Spare Parts Sales / Spare Parts Tel: 0800 935 714 Tel: 0800 79 1954 Email: service@stoddart.co.nz Email: sales@stoddart.co.nz...
