22) Connection of mains Cable
Always use the mains cable supplied. First of all insert the mains cable into the input panel of
the CTV, and only there after into the mains supply socket.
23) ELECTRICAL CONNECTIONS
For your own safety read the following instructions carefully before attempting to replace the
moulded mains plug. Please check the type of mains lead supplied with your television and
refer to the appropriate information below.
IMPORTANT
The wires in the mains lead are coloured
in accordance with the following code:
Blue - Neutral
Brown - Live
BLUE
(Neutral)
IMPORTANT
The wires in the mains lead are coloured
in accordance with the following code:
Blue - Neutral
Brown - Live
Yellow/Green - Earth
•
24)
•
•
•
•
•
Note: Keep removed stand and screws safely for future use.
5 A
5 A
Cover a table with a soft towel (or other protection to prevent damage to the TV or table)
Carefully lay the T.V. front down on the table
position the T.V. table stand so that it hangs over the edge of the table
Remove the screws that hold the stand to the T.V.
Remove the stand.
Attach any new brackets before lifting T.V. back up.

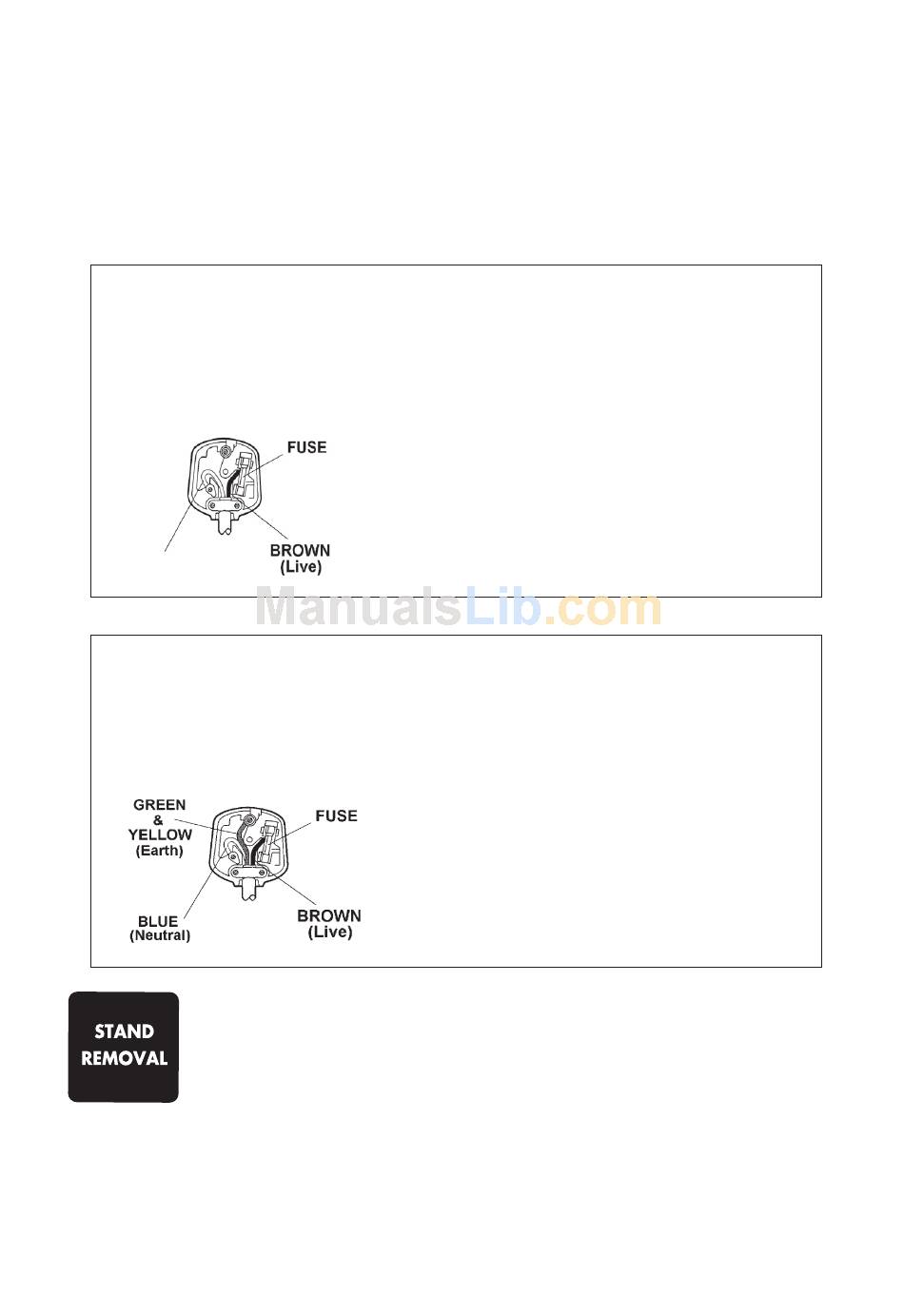

As the colours in the mains lead of this
appliance may not correspond with
the coloured markings identifying the
terminals in your plug, proceed
as follows:
The wire which is coloured blue or
black must be connected to the
terminal which is marked with the
letter N or coloured black.
The wire which is coloured brown or red must be
connected to the terminal which is marked with the letter
L or coloured Red.
No connection is to be made to the Earth terminal of the
plug.
If a 13 Amp (BS1363) Plug is used, fit an ASTA
apporoved 5 A fuse
If your product is fitted with a moulded plug which
requires replacement please cut off and dispose of it
safely, then rewire as shown in the diagram to the left.
As the colours in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug,
proceed as follows:
The wire which is coloured green and yellow must
be connected to the terminal which is marked with
the letter E, or by the earth symbol, or coloured
green or green and yellow.
The wire which is coloured blue or black must be
connected to the terminal which is marked with the
letter N or coloured Black.
The wire which is coloured brown or red must be
connected to the terminal which is marked with the
letter L or coloured Red.
If a 13 Amp (BS1363) Plug is used fit an ASTA
approved 5 Amp fuse.
If your product is fitted with a moulded plug which
requires replacement please cut off and dispose of it
safely, then rewire as shown in the diagram to the left.
