Your new television

5.1-TV Control Panel

or
Power / Standby button

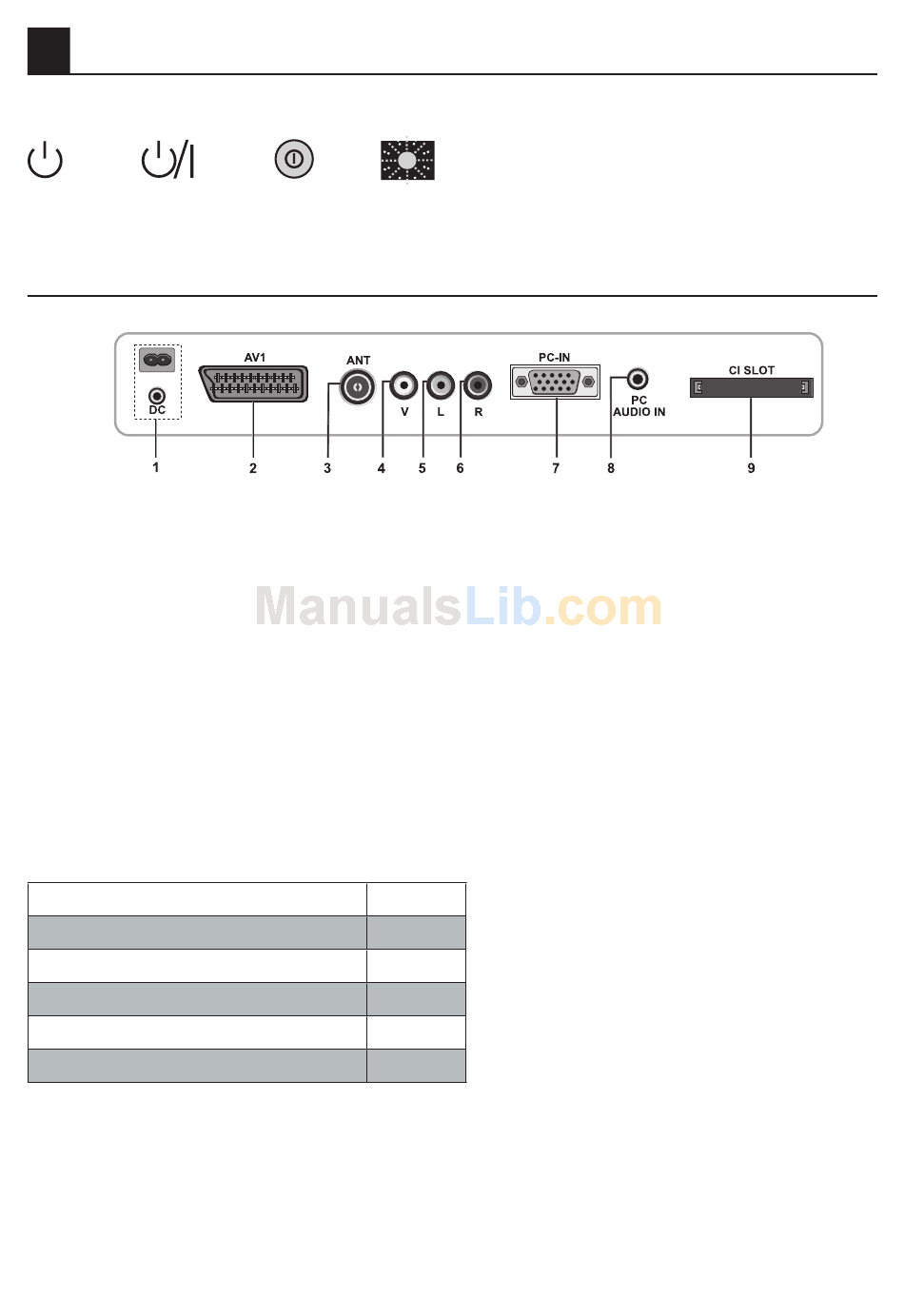

5.2-External Connections

1-Power input
2-Aerial input
3-AV1 scart
4- Video input PHONO connector
5- Audio input PHONO connector (L)
6- Audio input PHONO connector (R)
7-VGA (PC connection input) (*)
8- PC audio input (*)
9- CI Slot Input
Note: Above drawing for external connections is representational. Their order and places on
your TV may be different.
(*): These features are optional and they are not available on all models.

5.3-External Connections Table

Panel Size
Scart 1
Audio/Video PHONO(Input)
VGA Input
PC Audio Input
CI Slot Input
STD: STANDARD OPT: OPTIONAL
or
Bright light: TV is in Stand-by
Dimmed light: TV is On
No light: Power Cable is not connected
Stand by indicator
15"
STD
STD
OPT
OPT
STD
