Installation Procedure

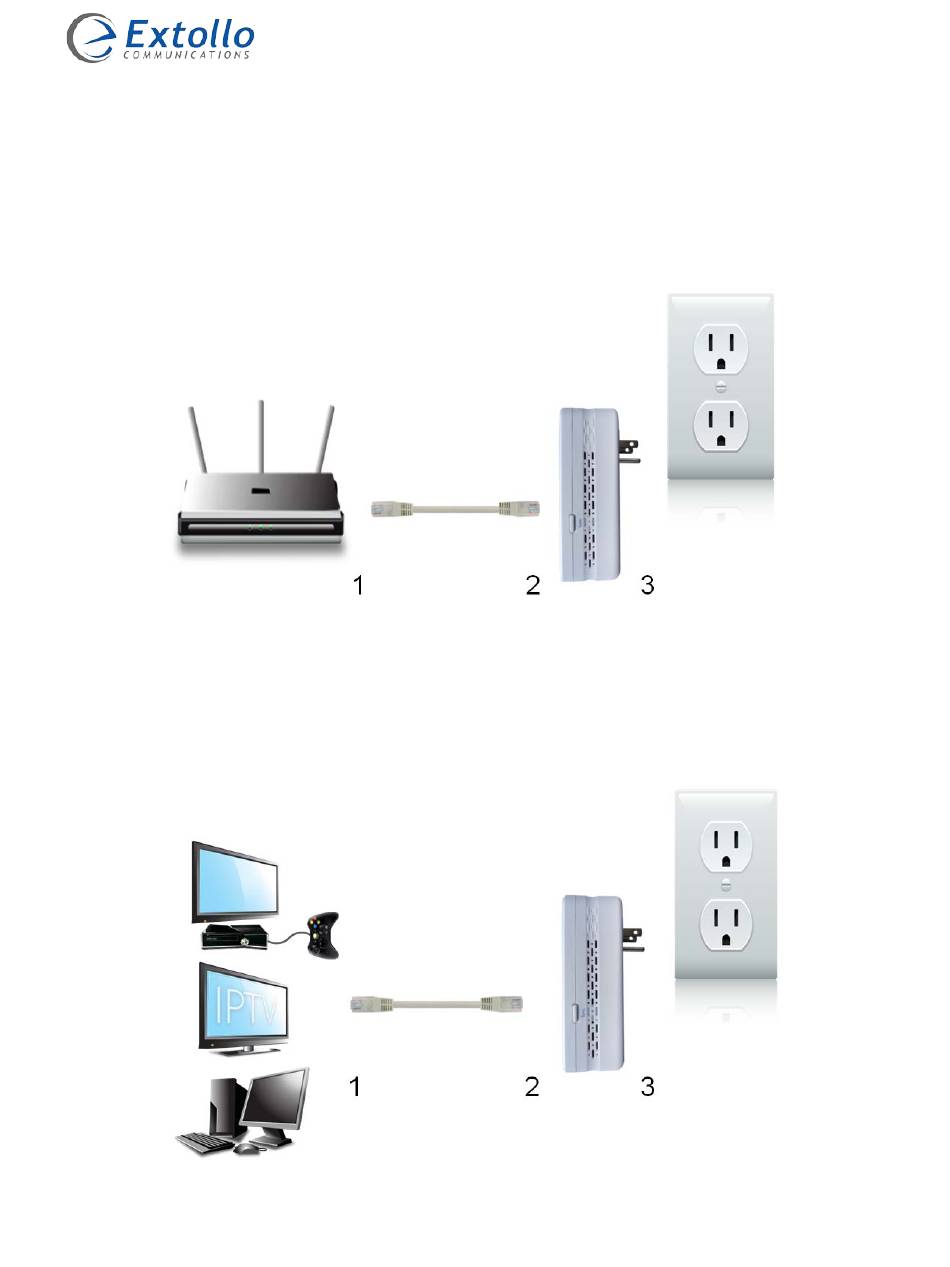

Step 1:
1. Connect one end of the Ethernet cable to the Internet router.
2. Connected the other end of the Ethernet cable to one of the LANSocket 1500 adapter.
3. Plug the LANSocket 1500 adapter directly into the power outlet.
Step 2:
1. Connect one end of the Ethernet cable to the digital device you want to network i.e. PC,
TV or gaming console.
2. Connected the other end of the Ethernet cable to the second LANSocket 1500 adapter.
3. Plug the LANSocket 1500 adapter directly into the power outlet.
