  • Page 1 Extollo Communications LANPlug 2000 Product Guide...

  • Page 2: Table Of Contents

    LANPlug 2000 Kit ........................10 LANPlug 2000 Single ......................10 LANPlug 2000 Interfaces ......................12 LANPlug 2000 LED Status Overview ..................14 Creating a Powerline Network with the LANPlug 2000 ..............16 Hardware Installation and Setup ....................18 Internet Router Connection ....................18 Remote Device Connection ....................18 Pairing the LANPlug 2000’s ....................19...
  • Page 3 The LANPlug 2000 Suddenly Stops Working ..............34 Contact Technical Support ....................34 Powerline Network Optimization ....................36 Quick Tips ..........................36 Optimizing Network Performance ..................36 Technical Specifications ......................38 The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
  • Page 4 Introduction The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 5: Introduction

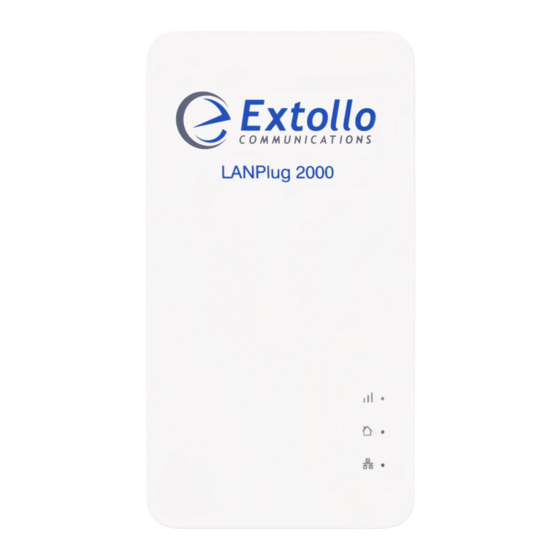

    Introduction The LANPlug 2000 Powerline adapters are sold as a kit (2 x LANPlug 2000’s) and as a single unit (1 x LANPlug 2000). The Local Area Network (LAN) LANPlug 2000 G.hn Powerline adapters create a self-contained, secure home network using the existing electrical wiring within the home and to remote buildings/workshops, turning every electrical outlet into an Internet connection.
  • Page 6 Product Overview The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 7: Product Overview

    Product Overview The LANPlug 2000 has been designed and built around the G.hn Powerline standard (referenced as ITU-T G.9963). It’s embedded with a Maxlinear processor, integrated DDR memory and an advanced high-speed Multiple Input / Multiple Output (MIMO) system optimized for 2 x 2 transmission across all three (3) electrical lines –...

  • Page 8: G.hn Powerline Overview

    The combination of 2x2 MIMO with beamforming improves bandwidth utilization and increase the LANPlug 2000 network’s range. This, in turn, improves video streaming, voice quality, and other bandwidth and latency sensitive transmission protocols. G.hn Powerline Overview A G.hn Powerline network can consists of one or more domains. Typically, a residential G.hn Powerline network will consist of a single domain.
  • Page 9 Unpack The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 10: Lanplug 2000 Package Contents

    LANPlug 2000 Package Contents The LANPlug 2000 comes as a starter kit (2 x LANPlug 2000’s) and as a single unit (1 x LANPlug 2000), Ethernet cable(s) and a quick install guide. LANPlug 2000 Kit LANPlug 2000 Single The information contained within this document is confidential and cannot be reproduced...
  • Page 11 Interfaces The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 12: Lanplug 2000 Interfaces

    The Powerline performance indicator LED provides a visual indication of the Powerline throughput for the electrical outlet that the LANPlug 2000 is plugged in to. 3. Powerline LED The Powerline LED indicates whether the LANPlug 2000 is pared and part of the Powerline network. 4. Ethernet LED The Ethernet LED shows the status of the Ethernet connection between the LANPlug 2000 and the attached device.
  • Page 13 LED Overview The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 14: Lanplug 2000 Led Status Overview

    LANPlug 2000 LED Status Overview Description Powerline • Performance Blinking Red: Powerline throughput is less than 100Mbps. • Blinking Amber: Powerline throughput is greater than 100Mbps, but less than 200Mbps. • Blinking Green: Powerline throughput is greater than 200Mbps. Powerline •...
  • Page 15 Creating a Network The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 16: Creating A Powerline Network With The Lanplug 2000

    A Powerline network setup consists of two or more LANPlug 2000 Powerline adapters. Connect one LANPlug 2000 to your Internet router with the provided Ethernet cable and plug it into an electrical outlet. Plug the second LANPlug 2000 into an electrical outlet close to the device that requires an Internet connection and connect the device with the Ethernet cable.
  • Page 17 Installation Setup The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 18: Hardware Installation And Setup

    2. Connected the other end of the Ethernet cable to the LANPlug 2000 Powerline adapter. 3. Plug the LANPlug 2000 Powerline adapter directly into the electrical outlet. 4. The Powerline LED on the LANPlug 2000 will be green and then turn amber once it has finished its boot-up process.

  • Page 19: Pairing The Lanplug 2000'S

    2000’s to create a Powerline network using the pairing button. Pairing is to be performed one LANPlug 2000 at a time. Pair one LANPlug 2000 and then pair the second, third etc. It is recommended to start the pairing process with the LANPlug 2000 that is connected to the Internet router.

  • Page 20: Adding Additional Lanplug 2000'S

    Internet router first until the Powerline LED starts to blink – release the pairing button. 2. Press and hold the pairing button for 3 to 5 seconds on the new LANPlug 2000 that is being added to the network until the Powerline LED starts to blink – release the pairing button.
  • Page 21 Logging In The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 22: Logging Into The Lanplug 2000

    LANPlug 2000 will automatically obtain an IP address from the Internet router. To access the web GUI on the LANPlug 2000, the IP address that was assigned to the LANPlug 2000 is required. To determined what IP address was assigned to a LANPlug 2000, log into the Internet router and see what devices are connected and their associated IP address.

  • Page 23: Log In Window

    Use the IP address that was assigned to the LANPlug 2000 to access the GUI. 1. Launch an Internet web browser from a computer. 2. In the web browser bar, type the IP address that was assigned to the LANPlug 2000. 3. The following login window is displayed.
  • Page 24 Manage Settings The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 25: Manage The Settings On The Lanplug 2000

    “HomeGrid”. Force Node Type The Force Node Type is used to change the operational mode of the LANPlug 2000 in the G.hn domain. The options are “Domain Master” or “End Point”. The LANPlug 2000 that initiates the pairing process is made the Domain Master. It’s recommended that the LANPlug 2000 attached to the Internet router initiates the pairing process.

  • Page 26: Ip Menu

    The Pairing Password is dynamically created during the initial pairing process. It is assigned to new LANPlug 2000’s when added to the G.hn domain during the pairing process. It is also used as the seed parameter to generate a random encryption key.
  • Page 27 LANPlug 2000 will be assigned an IP, default gateway and DNS addresses from the Internet router. If the DHCP setting is set to “NO”, a static IP address must be assigned to the LANPlug 2000 manually for the given network. After assigning the IP address, default gateway and DNS, select “OK”...

  • Page 28: Ethernet Menu

    The Speed setting displays the Ethernet connection speed between the LANPlug 2000 and the connected device. 2. Link The Link setting displays the status of the connection between the LANPlug 2000 and the connected device. The information contained within this document is confidential and cannot be reproduced...

  • Page 29: Device Menu

    4. Select the OK button to initiate the software upgrade. 5. The LANPlug 2000 will load the new software and then reboot its self. NOTE: Do not unplug the LANPlug 2000 while it’s installing the new software. The LANPlug 2000 will become inoperable.
  • Page 30 4. Security Change the administrative access password on the LANPlug 2000. It is recommended that you change the password. The default password is ECLP2000. We recommend that you set a more secure password. 1. Log into the LANPlug 2000. 2. Select Device and then Set Password.
  • Page 31 Factory Default The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 32: Restoring The Lanplug 2000 To Factory Default

    Restoring the LANPlug 2000 to Factory Default This section describes the process to restore the LANPlug 2000 to its factory default settings. Performing this process erases all settings that have been configured on the LANPlug 2000. 1. Hold the Pairing button down for more than 20 seconds until the Powerline and Ethernet LEDs turn on.
  • Page 33 Troubleshooting The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 34: Troubleshooting The Lanplug 2000

    Unplug the LANPlug 2000 from the electrical outlet and remove the Ethernet cable. • Make sure there is power to the electrical outlet and it’s working properly. • Ensure the LANPlug 2000 is not plugged into an extension cord, power strip, or surge protector. Power LED is Off: •...
  • Page 35 Powerline Optimization The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 36: Powerline Network Optimization

    Powerline adapters work best when plugged into a wall outlet without power strips, extension cords, surge protectors, or uninterruptable power supplies. If you’re Extollo adapters are having difficulty communicating with each other, please read the following section for corrective actions.
  • Page 37 Specifications The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 38: Technical Specifications

    H 4.73” x W 2.56” x D 1.15” cUL 60950 & UL 2043 Regulatory Compliance FCC Part 15 Class B CE IEC 60950-1 The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
