LANSocket 1500 Product Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LANSocket 1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Extollo LANSocket 1500

Summary of Contents for Extollo LANSocket 1500

  • Page 1 Extollo Communications LANSocket 1500 Product Guide...

  • Page 2: Table Of Contents

    Creating a Private Powerline Network ..................21 Configuring a Private Powerline Network ................21 Adding Additional LANSocket 1500’s to a Powerline Network ...........25 Adding Additional LANSocket 1500’s to a Private Powerline Network ........25 Pairing Configuration for a Private Powerline Network ............25 Logging into the LANSocket 1500 .....................29 Determining the IP Address ....................29...
  • Page 3 Quick Tips ..........................39 Optimizing Network Performance ..................39 Reset the LANSocket 1500 to Factory Default ................41 Troubleshooting ........................43 Symptoms ..........................43 LANSocket 1500 Specifications ....................45 The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 4: Glossary Of Terms

    Several transmission & receive paths Multi Tenant Units An apartment building Network Encryption Key 128 bit encryption keys used in a AVLN The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
  • Page 5 A television with a minimum resolution of 3,840×2,160 pixels Wi-Fi Wireless Local Area Network Wirelessly networking using (WLAN) microwaves in the 2.4 GHz and 5 GHz bands The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
  • Page 6 Introduction The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 7: Introduction

    Additionally, the convenience of networking any device through a power outlet enables exciting new services to be distributed throughout the home. The performance of Extollo’s Powerline AV2 adapters enables the delivery of throughput intensive applications such as multiple Ultra HD video streams, online gaming and security camera video.
  • Page 8 Product Overview The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 9: Product Overview

    Product Overview Extollo’s LANSocket 1500 Powerline adapters are based on Broadcom’s 60500 multiPHY SoC. Broadcom’s 60500 SoC is compliant to HomePlug’s AV2 specification. Extollo’s 1500 series of Powerline adapters can use all three electrical wires that are present in a home to provide application speeds of up to 500 Mbps using MIMO with beam-forming technology.

  • Page 10: Ethernet Packet Flow

    MIMO increases the number of transmission paths across the Powerlines. Two line drivers and receivers enable the 1500 adapters to simultaneously transmit on any two of the three electrical powerline wires; Line, Neutral and Ground. The LANSocket 1500 MIMO paths consist of: Line- Neutral or Line-Ground.
  • Page 11 Unpack The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 12: Lansocket 1500 Package Contents

    LANSocket 1500 Package Contents The LANSocket 1500 comes as a starter kit (2 x LANSocket 1500’s) and as a single unit (1 x LANSocket 1500), Ethernet cable(s) and a quick install guide. LANSocket 1500 Kit LANSocket 1500 Single The information contained within this document is confidential and cannot be reproduced...
  • Page 13 Interfaces & LED’s The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 14: Lansocket 1500 Interfaces & Led's

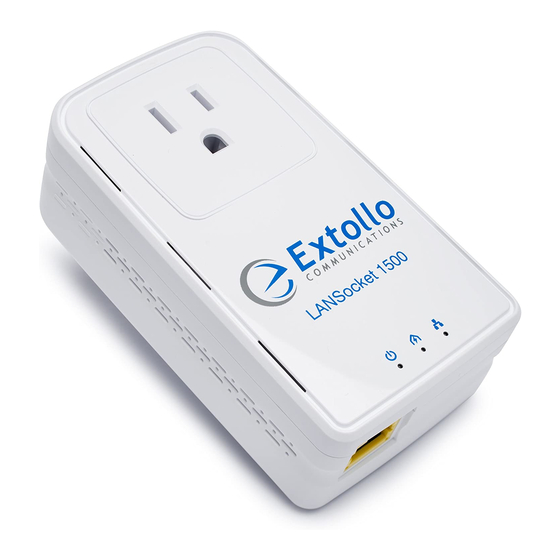

    LANSocket 1500 Interfaces & LED’s 1. Ethernet RJ45 Interface The LANSocket 1500 supports an auto sensing 10/100/1000Mbps Ethernet wired connection. Power LED Indicator a. On: Adapter is receiving electrical power. b. Off: No power to the adapter. c. Flashing (1 second ON, 14 second OFF) adapter is in standby mode.
  • Page 15 Reset the LANSocket 1500 to factory defaults. 7. NEMA 5 120VAC and Powerline Interface Provides power to the LANSocket 1500 and used to transmit the Powerline frames across the electrical power lines. The information contained within this document is confidential and cannot be reproduced...
  • Page 16 Creating a Network The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 17: Installing And Creating A Powerline Network

    Now every power outlet in the home becomes an Internet access point. Take the second LANSocket 1500 adapter and plug it into a power outlet that is close to the device (PC, game console, Smart TV etc.) that requires Internet access. Connect the device to the LANSocket 1500 adapter via the Ethernet cable.
  • Page 18 Installation Setup The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 19: Installation Procedure

    Step 1: 1. Connect one end of the Ethernet cable to the Internet router. 2. Connected the other end of the Ethernet cable to one of the LANSocket 1500 adapter. 3. Plug the LANSocket 1500 adapter directly into the power outlet.
  • Page 20 Private Setup The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 21: Creating A Private Powerline Network

    3. Plug the LANSocket 1500 adapter into the power outlet. 4. Press and hold the Sync button on the first LANSocket 1500 adapter for no more than 10 seconds - release after 10 seconds. Once released, the PWR LED will flash then go solid.
  • Page 22 3. Plug the LANSocket 1500 adapter into the power outlet. 4. Press and hold the Sync button on the second LANSocket 1500 adapter for no more than 10 seconds - release after 10 seconds. Once released, the PWR LED will flash then go solid.
  • Page 23 Step 3: 1. Ensure that the LANSocket 1500 adapters one and two are still plugged into the power outlet. 2. On adapter one, press and hold the Sync button for 3 seconds then release. 3. The PWR LED on adapter one will start to flash. It is now in an adder state.
  • Page 24 Adding Additional LANSocket 1500’s The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 25: Adding Additional Lansocket 1500'S To A Powerline Network

    Adding Additional LANSocket 1500’s to a Powerline Network Extollo’s LANSocket 1500 Powerline adapters come 2 to a kit or as a single unit with the default (HomePlugAV) Network Membership Key (NMK). They are considered as “members of the same network”. No user interactions are required when adding additional LANSocket 1500 adapters to the Powerline network.
  • Page 26 2. Connect the Ethernet cable to the LANSocket 1500 adapter and the device that is to be networked (PC, gamming console, STB etc.). 3. To add the LANSocket 1500 adapter to the existing private AVLN press and holding the Sync button for 10 seconds and then release the button. Once the PWR LED has stopped flashing, advance to 4.
  • Page 27 The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
  • Page 28 Logging In The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 29: Logging Into The Lansocket 1500

    LANSocket 1500 will automatically obtain an IP address from the Internet router. To access the web GUI on the LANSocket 1500, the IP address that was assigned to the LANSocket 1500 is required. To determined what IP address was assigned to a LANSocket 1500, log into the Internet router and see what devices are connected and their associated IP address.

  • Page 30: Log In Window

    3. The following login window is displayed. 4. Select the “Username” field and enter admin. 5. Select the “Password” field and enter admin. The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
  • Page 31 Manage Settings The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 32: Manage The Settings On The Lansocket 1500

    1. Section 1 provides software and hardware version numbers as well as the length of time the LANSocket 1500 has been in operation. 2. Section 2 provides the IP addresses of the LANSocket 1500 and the Internet router’s DNS address.

  • Page 33: Powerline Link Rates

    Select “Advance Setup” then “HomePlug”. 1. The “Associated devices” field provides Transmit and Receive Powerline link rates between the LANSocket 1500 that you are logged into and other LANSocket 1500’s on the Powerline network in Mbps. Creating a Private Powerline Network Select “Advance Setup”...

  • Page 34: Software Upgrade

    Select “Management” then “Update Software” to start the software upgrade process. 1. Download the latest LANSocket 1500 software version from Extollo’s Support web page. 2. Save the LANSocket 1500 software to a directory on the PC that will be used to upgrade the LANSocket 1500.

  • Page 35: Change Login Password

    NOTE: Please document the new admin password for future use. If you forget the admin password, the only way to access the LANSocket 1500’s management interface is to restore the LANSocket 1500 to factory defaults. This will set the “Access Control Password” back to admin.
  • Page 36 Product Dimensions The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 37: Lansocket 1500 Product Dimensions

    LANSocket 1500 Product Dimensions The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
  • Page 38 Network Optimization The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 39: Network Optimization

    Network Optimization Extollo PLC adapters work better when plugged into a wall outlet without power strips, extension cords, surge protectors, or uninterruptable power supplies. If you’re Extollo adapters are having difficulty communicating with each other, please read the following section for corrective actions.
  • Page 40 Factory Reset The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 41: Reset The Lansocket 1500 To Factory Default

    Reset the LANSocket 1500 to Factory Default The following procedure will set the LANSocket 1500 to the factory default settings. 1. Hold the “Sync” button down between 20-30 seconds. 2. All the LED’s lights will flash then go out – release the “Sync” button.
  • Page 42 Troubleshooting The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 43: Troubleshooting

    Troubleshooting The following information will help in isolating problems with the LANSocket 1500. Symptoms None of the LED’s light up after the adapter is installed: • Unplug the adapter from the electrical outlet and remove the Ethernet cable. • Make sure there is power to the electrical outlet and it’s working properly.
  • Page 44 Specifications The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.

  • Page 45: Lansocket 1500 Specifications

    100Base-T; Cat. 5 UTP Cable Operating Temperature 0° C to 50° C ambient temperature Storage Temperature -20° C to 70° C ambient temperature The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
  • Page 46 Power: On/Off/Flashing 1 second ON, 14 seconds OFF (Standby Mode) PLC (Powerline) Link: Red/Orange/Green/Off Ethernet Link: Solid/Off/Flashing Certifications HomePlug AV Powerline Certification FCC Class B / CE Mark The information contained within this document is confidential and cannot be reproduced without the approval of Extollo Communications.
