Models:- ARC 120A, ARC 120UB, ARC 240A, ARC 240UB
ARC SERIES
4
5
0
10
0
10
10
+10
dB
MIC/LINE
AUX
BASS
4
5
0
10
0
10
10
+10
dB
MIC/UB
AUX
BASS
4
5
0
10
0
10
10
+10
dB
AUX
BASS
MIC/LINE
4
5
0
10
0
10
10
+10
dB
MIC/UB
AUX
BASS

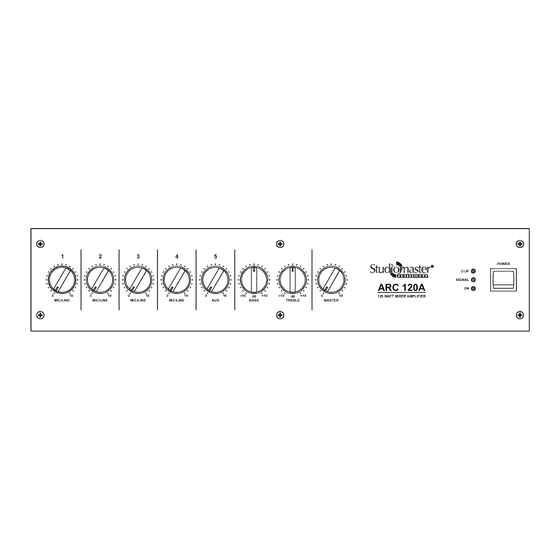

MIXER AMPLIFIER
ARC 120A
10
+10
0
10
120 WATT MIXER AMPLIFIER
dB
TREBLE
MASTER
MEDIA PLAYER
88:88
► USB
II SD
VOL+
VOL-
PLAY/
PAUSE
USB
10
+10
0
10
dB
TREBLE
MASTER
ARC 240A
10
+10
0
10
240 WATT MIXER AMPLIFIER
dB
TREBLE
MASTER
MEDIA PLAYER
88:88
► USB
II SD
VOL+
VOL-
PLAY/
NEXT
PAUSE
USB
10
+10
0
10
dB
TREBLE
MASTER
POWER
R
CLIP
SIGNAL
ON
R
AUX
FM
POWER
CLIP
NEXT
PREV MODE
IR
SIGNAL
ON
SD/MMC CARD
MEDIA PLAYER
ARC 120UB
120 WATT MIXER AMPLIFIER
POWER
R
CLIP
SIGNAL
ON
R
POWER
AUX
FM
CLIP
PREV MODE
IR
SIGNAL
ON
SD/MMC CARD
MEDIA PLAYER
ARC 240UB
240 WATT MIXER AMPLIFIER
Advertisement
Table of Contents
Related Manuals for Studiomaster Professional ARC Series
Summary of Contents for Studiomaster Professional ARC Series
- Page 1 ARC SERIES POWER CLIP SIGNAL ARC 120A 120 WATT MIXER AMPLIFIER MIC/LINE MIC/LINE MIC/LINE MIC/LINE BASS TREBLE MASTER MEDIA PLAYER 88:88 ► USB II SD POWER CLIP VOL+ VOL- PLAY/ NEXT PREV MODE PAUSE SIGNAL SD/MMC CARD MIC/LINE MIC/LINE MIC/LINE...
- Page 2 Thank you for your purchase of the STUDIOMASTER ARC Series mixer amplifier. This amplifier fully incorporate STUDIOMASTER’s renowned technology and offers high reliability, rock solid stability and superb acoustic characteristics. Features of the Product Five inputs : 4 balanced microphone/line inputs, One auxiliary (stereo summing) line input (For ARC 120A & ARC 240A).
- Page 3 10) USB INPUT: Use this connector to plug in your pen drive. (USB Mp3 flash memory) Terms of use : Studiomaster Professional respects intellectual property rights and we request our users to do the same. Please use Mp3 downloads only for program which you have legally purchased. PLEASE DO NOT USE PIRATED MUSIC OR PROGRAM.
- Page 4 Rear Panel (ARC 120A & ARC 240A) 24V DC OUTPUT PRE OUT LINE OUT INPUT 5 INPUT 4 INPUT 3 INPUT 2 INPUT 1 AUTO +21V PHANTOM TALK POWER 4Ω 8Ω 16Ω AMP IN AUX IN LINE LINE LINE LINE MADE IN INDIA WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER.
- Page 5 100V 100V Figure 1 Figure 2 OUTPUT OUTPUT OUTPUT 4Ω 8Ω 16Ω 4 Ω 8Ω 16Ω 4Ω 8Ω 16Ω Figure 3 Figure 4 Figure 5 When 70/100V line is being used, no speakers / driver units should be connected to 4Ω or 8Ω or 16Ω (Low Impedance) Tap. ...
- Page 6 5.4 Out of Range or Lost Signal If the music device (Mobile phones, Laptops, Tablet phones etc.) is out of range (beyond 17 feet) of the Bluetooth Receiver (ARC Series Amplifier) or if there is something blocking the Bluetooth signal, which shall be indicated by loss of audio or audio intermittency. To avoid a lost connection, move the music device back into range (within 17 feet), or reduce obstruction between the receiver and your smart phone.
- Page 7 Specifications Models ARC 120A / ARC 120UB ARC 240A / ARC 240UB Outputs 120W RMS At 1% THD, 240W RMS At 1% THD, Output power 150W MAX At 5% THD, 300W RMS At 5% THD, 160W RMS At 10% THD, 200W Max 325W RMS At 10% THD, 400W Max Min 4 Ω, 8 Ω, 16 Ω, 70V, 100V Outputs Speakers...
- Page 8 The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Studiomaster Professional can not be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.
