Studiomaster Professional XJA 2600 Instruction Manual

OPERATION
1. Connect loudspeaker system with sufficient handling capacity to the output terminals of the amplifier.
2. Connect output from mixer ( or any other suitable signal source) to the appropriate input sockets of the power amplifier.
NOTE. All inputs are BALANCED and connections for the XLR input are Pin 1 = GND, 2=HOT, 3= COLD
3. Connect the power cord to the mains.
4. Turn gain controls to minimum, switch on the amplifier and the Green power LED will illuminate.
5. Adjust gain controls to required level. NOTE. If the audio input signal is too high, distortion will result and the CLIP indicator
will light. If the clip LED is lit permanently or flashes, the gain level should be reduced.
6. Protect LED. These power amplifiers feature unique DC, thermal protection circuit.
For reliable and trouble free operation, please observe the following points:
• Ensure all input/output connections are correct and secure.
• The handling capacity of the loudspeakers is adequate for the output of the amplifier.
• Always install the amplifier in a well ventilated location.
• Protect unit from severe shocks.
SPECIFICATIONS
Model
Stereo
Bridged
Single channel driven
Power, Signal, Clip, Bass boost & Protect
Indicators
Damping factor
Frequency Response
Input Impedance
20K Ω Balanced/10K
Temperature, DC, short circuit
Protection
Input Connector (per channel) XLR, Jack Stereo 6.3mm
Output Connector (per channel) Speak-on connector/Binding Posts/6.3mm jack
Cooling
2 x Variable Speed fans (80MM)
Power Supply 240V~50Hz, 2500W
Dimensions (WxDxH) 482 x 88 x 456mm (2U)
Net Weight in Kg
Do not attempt to make any repairs yourself. This would
Do not make any changes to the unit. This would also
The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of
the warnings contained in this manual. Studiomaster Professional can not be held responsible for personal
injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all
damages in whatever form.
PRODUCT OF AUDIOPLUS
A1/A2, Giriraj Industrial Estate, Mahakali Caves Road, Andheri (East), Mumbai - 400 093. India
Tel.: +91-22-42869043 / 4286 9076 / Fax: +91-22-26871453 Whats App.: +91-8888887049
E info@audioplus-india.com W www.studiomasterprofessional.com / www.audioplus-india.com
Studiomaster Professional reserves the right to make modifications to its products without notice
XJA 2600
2Ω (2 x 850W RMS)
4Ω (2 x 900W RMS)
8 Ω (2 x 600W RMS)
2Ω (2 x 1000W EIA)
4 Ω (2 x 1500W EIA)
8 Ω (2 x 825W EIA)
4Ω (1700W RMS)
8 Ω (1800W RMS)
4Ω (2000W EIA)
8 Ω (3000W EIA)
2Ω (900W RMS)
4 Ω (1100W RMS)
8 Ω (700W RMS)
2Ω (1100W EIA)
4 Ω (1800W EIA)
8 Ω (900W EIA)
>350:1 (8 ) Ω
20Hz-20KHz (-3dB)
Ω Unbalanced
20 kg
void your warranty.
void your warranty.

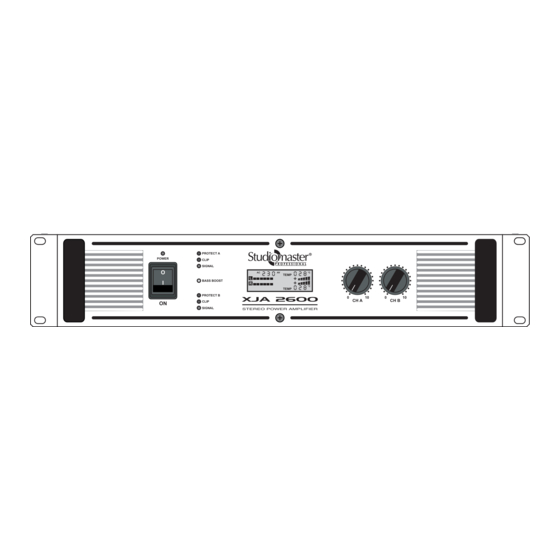

Stereo Power Amplifier
Model: XJA 2600
PROTECT A
POWER
CLIP
SIGNAL
O 2 3 0
AC
L
BASS BOOST
I
R
PROTECT B
XJA 2600
CLIP
ON
SIGNAL STEREO POWER AMPLIFIER
A series of high output, high quality stereo power amplifiers offering greater reliability for a wide
range of Clubs, Stage and P .A. applications.
Features. . .
• Backlit LCD display with features,
- Mains voltage indication.
- Output level meter.
- Fan speed indication.
- Heatsink temperature indication.
• Lightweight, Rugged & Reliable Stereo Power Amplifier.
• Output: Speakon, 6.3mm jack socket & Binding Post Connectors.
• EQ Processing, Low Cut, Subwoofer on rear Panel.
• Temperature controlled Fans.
• 19" 2U Rack Mountable design.
• Input: Balanced XLR & 1/4" Jack.
• Level Control & LED indicators (Power, Signal, Clip, Bass Boost & Protect) on front panel.
• Stereo, Bridge & Parallel Mode Selection Switch.
• Protection: Temperature DC, Short Circuit.
• Mains voltage operation 220VAC-240VAC as well as Low Voltage Operation (150VAC).
• Elegant extended dial plate.
Instruction Manual
0 2 8
AV °C
TEMP
0 2 8
°C
TEMP
0 10 0 10
CH A CH B
