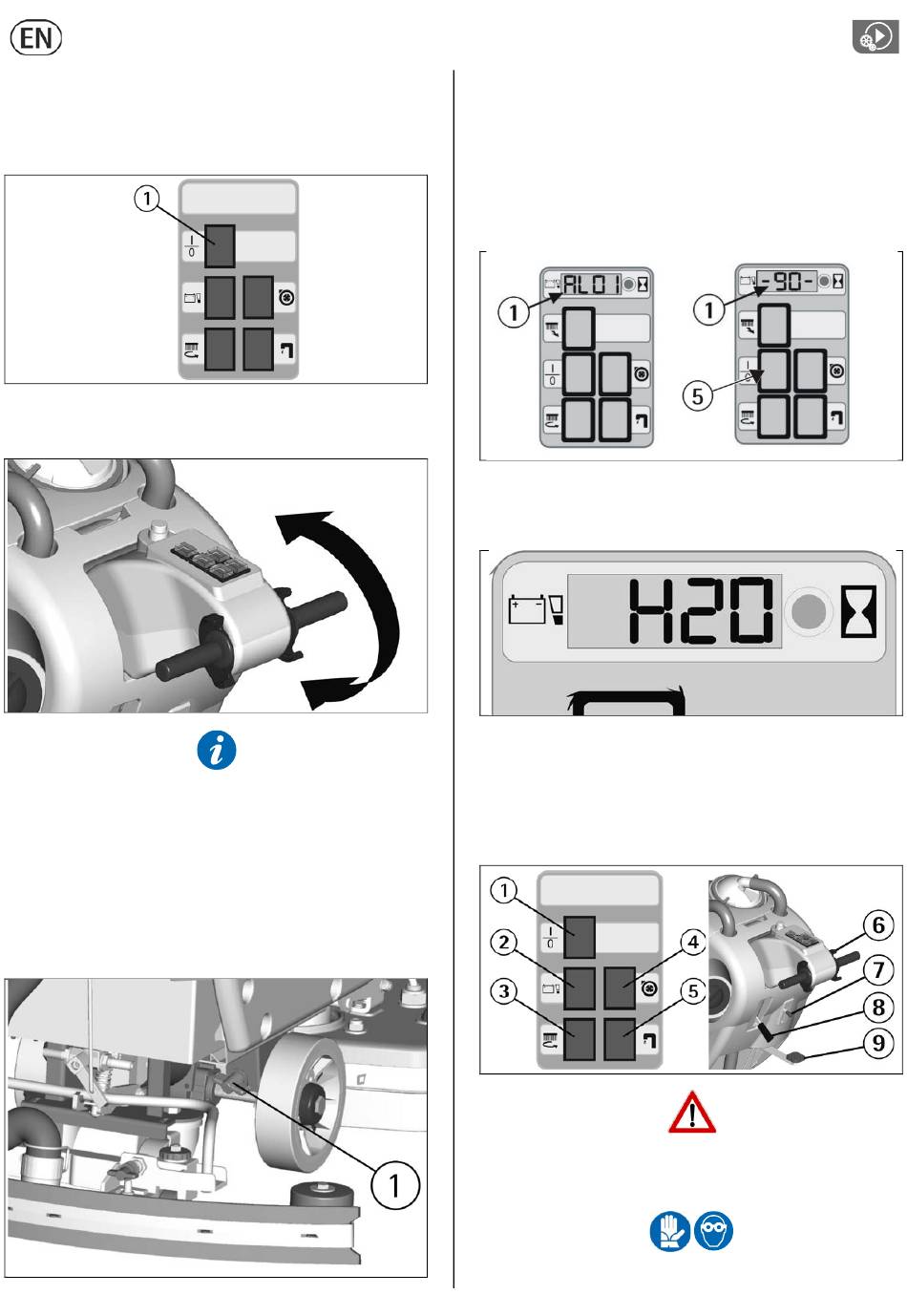

To move the machine, act upon the switch (1), then rotate the levers
drive control placed on the handle bar, in forward you obtain the
forward drive, in reverse the backwards movement is obtained. The
control acts in a progressive way, therefore it is possible to graduate
the speed depending on each requirement rotating the lever
whatever it is necessary. During reverse motion the speed is reduced.

STOP (IF EQUIPPED WITH TRACTION)

Releasing the levers drive control, the machine and the brush will
stop.
Moving the machine backwards, make sure that the squeegee is
lifted.
ADJUSTMENT OF THE BRUSH/ES PRESSURE PRESENT ON SOME
MODELS
Through the register (1) placed on the internal part of the front right
wheel, it is possible to adjust the brush/es pressure on the cleaned
surface.
By turning the wing nut clockwise the pressure increases, rotating the
wing nut counterclockwise, the pressure decreases.
This device allows a more efficient cleaning action also on very
difficult and dirty surfaces.

BRUSH/ES MOTOR OVERLOAD PROTECTION DEVICE (OPTIONAL)

If the machine is equipped with the amperemetric protection device
(see under "OPTIONAL ACCESSORIES"), this, in case of extended
overload of the brush/es motor, intervenes shutting it off.
Furthermore, on the display (1) appears an alarm "AL01". In case of
intervention of this device, check the brush/es pressure adjustment in
connection with the type of floor to be cleaned and if necessary,
reduce it.
To reset the brush/es motor, turn off the brush/es motor switch (5)
for a few seconds and turn it on again.

SIGNAL DETERGENT SOLUTION RESERVE (H2O ON THE DISPLAY)

When the indication H2O on the display appears, this means that the
detergent is getting low corresponding to 10% of the maximum
capacity of the solution tank.

STOP OF THE MACHINE AFTER CLEANING OPERATION

Before executing any type of maintenance:
1. Lift the brushes base acting upon the pedal (9).
2. Lift the squeegee acting upon the lever (8).
3. Turn off the brush motor, the suction motor and the solenoid
valve acting upon its switches.
4. Bring the machine to an appropriate place for tanks draining.
The machine is not equipped with a parking brake, therefore do not
leave it on slopes.

EMPTYING DEVICE DETERGENT SOLUTION (OPTIONAL)

To recover the detergent solution, it is necessary to use the emptying
device provided for the purpose and proceed as follows:
