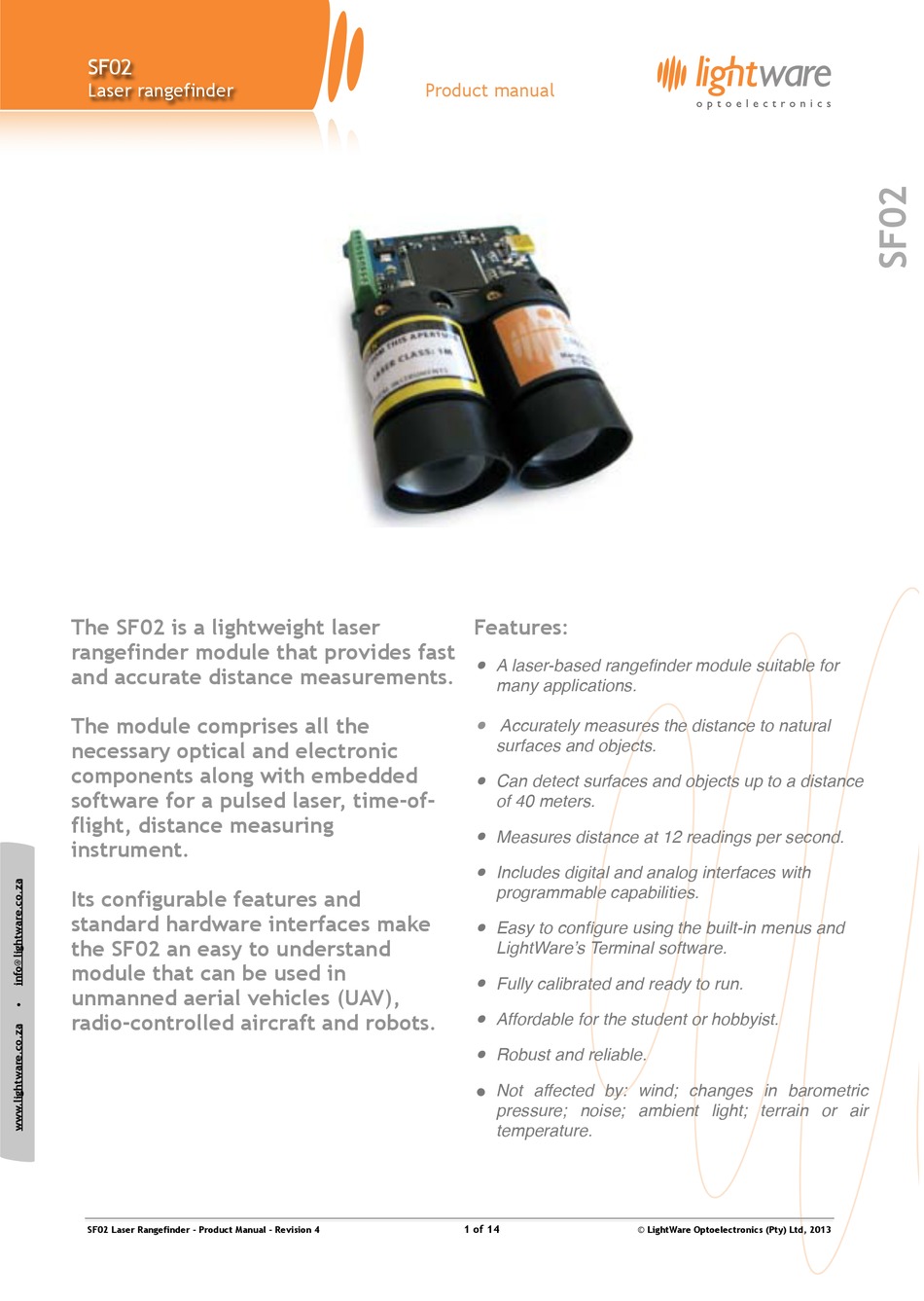

SF02
Laser rangefinder
! !
! !
! !
! !
! !
! !
! !
! !
!
The SF02 is a lightweight laser
rangefinder module that provides fast
and accurate distance measurements.
The module comprises all the
necessary optical and electronic
components along with embedded
software for a pulsed laser, time-of-
flight, distance measuring
instrument.
!
Its configurable features and
standard hardware interfaces make
the SF02 an easy to understand
module that can be used in
unmanned aerial vehicles (UAV),
radio-controlled aircraft and robots.
SF02 Laser Rangefinder - Product Manual - Revision 4
Product manual
Features:
!
A laser-based rangefinder module suitable for
many applications.!
!
Accurately measures the distance to natural
!
surfaces and objects.!
Can detect surfaces and objects up to a distance
!
of 40 meters.!
!
Measures distance at 12 readings per second.!
Includes digital and analog interfaces with
!
programmable capabilities.!
Easy to configure using the built-in menus and
!
LightWare's Terminal software.!
!
Fully calibrated and ready to run.!
!
Affordable for the student or hobbyist.!
!
Robust and reliable.!
Not affected by: wind; changes in barometric
pressure; noise; ambient light; terrain or air
temperature.
!
1
! of !
14
© LightWare Optoelectronics (Pty) Ltd, 2013
