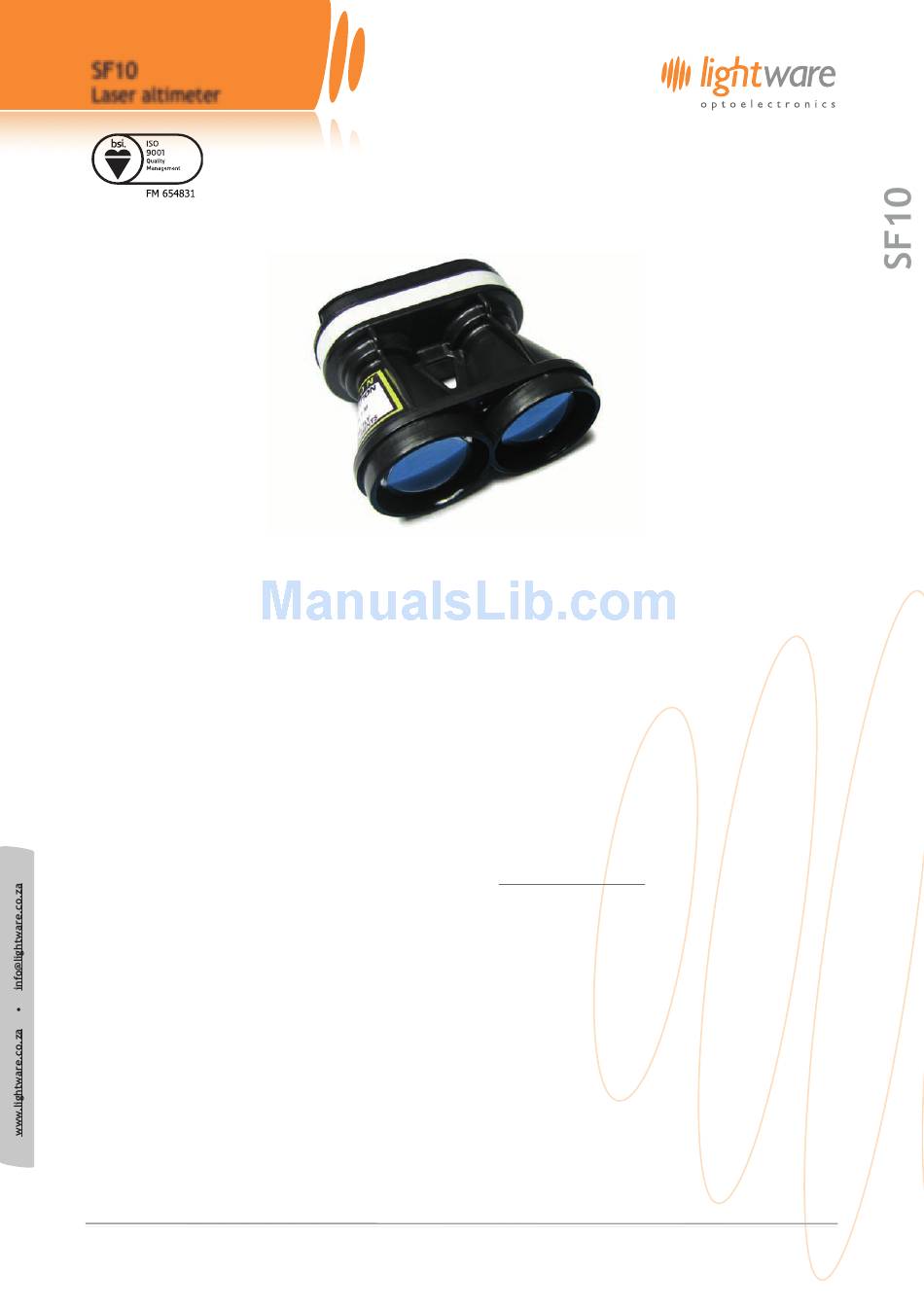

Laser altimeter
The SF10 is a compact, lightweight
laser altimeter for above-ground-
level altitude measurement from
small fixed wing or multi-rotor craft.
The SF10 laser altimeter is ideal for
automated landings and precision
hovering.
The configurable features and
multiple hardware interfaces make
the SF10 easy to use with different
types of flight controller.
The SF10 laser altimeter uses a time-
of-flight system to make accurate
distance measurements to natural or
artificial surfaces.
SF10 Laser Altimeter - Product Manual - Revision 11
Product manual
Features:
•
Very compact and lightweight - 35 grams.
•
Accurate AGL altitude measurement on most
natural and artificial surfaces.
•
Fast update rate.
•
Includes serial, I2C, USB and analog interfaces
with programmable capabilities.
•
Easy to configure using the built-in menu and
LightWare Terminal
•
Fully calibrated and ready to run.
•
Accurate, reliable altitude measurements in
sunlight or dark conditions.
•
Not affected by: speed; wind; changes in
barometric pressure; noise; ambient light; terrain
or air temperature.
1
of
15
software.
© LightWare Optoelectronics (Pty) Ltd, 2016
