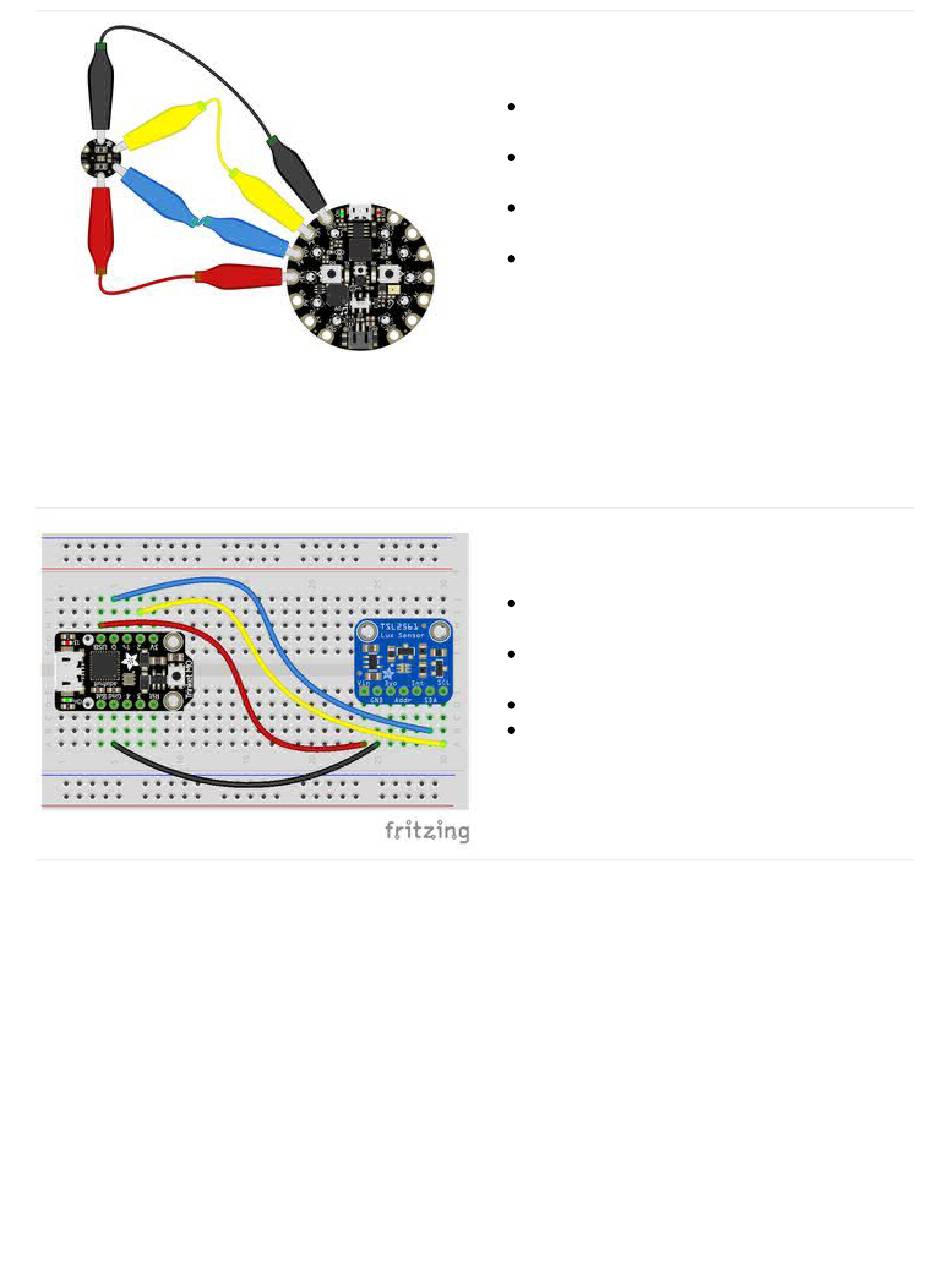

Circuit Playground Express
Connect 3.3v on your CPX to 3.3v on your
TSL2561.
Connect GND on your CPX to GND on your
TSL2561.
Connect SCL/A4 on your CPX to SCL on your
TSL2561.
Connect SDL/A5 on your CPX to SDA on your
TSL2561.
Trinket M0
Connect USB on the Trinket to VIN on the
TSL2561.
Connect Gnd on the Trinket to GND on the
TSL2561.
Connect D2 on the Trinket to SCL on the TSL2561.
Connect D0 on the Trinket to SDA on the
TSL2561.
Page 153 of 183
