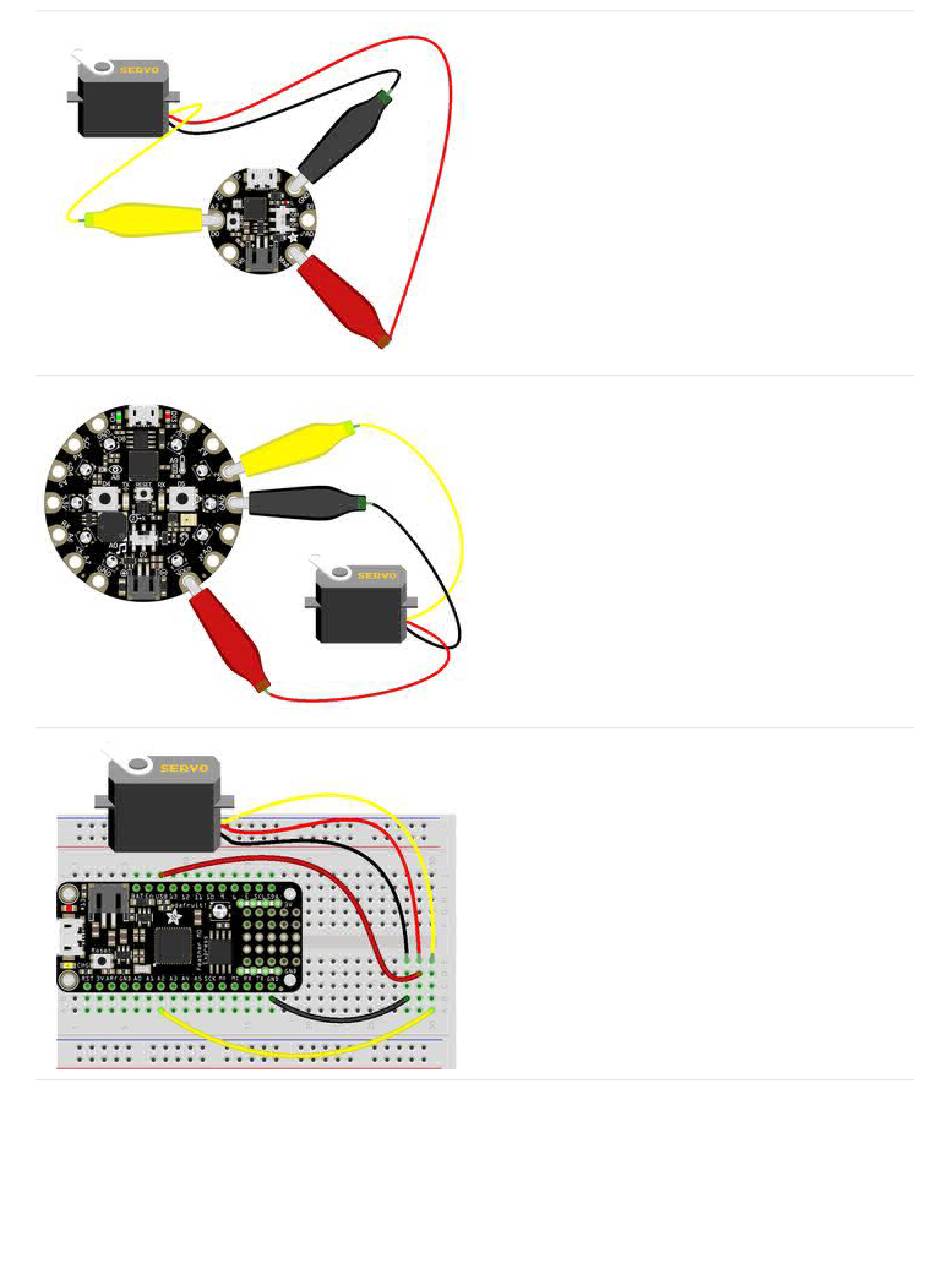

For Gemma, use jumper wire alligator clips to connect
the ground wire to GND, the power wire to VOUT, and
the signal wire to A2.
For Circuit Playground Express, use jumper wire
alligator clips to connect the ground wire to GND, the
power wire to VOUT, and the signal wire to A2.
For boards like Feather M0 Express, ItsyBitsy M0
Express and Metro M0 Express, connect the ground
wire to any GND, the power wire to USB or 5V, and the
signal wire to A2.
