DSC WS4938 Operating Instructions

WS4938 Wireless Panic Button

Operating Instructions

Introduction
The WS4938 Wireless Panic Button was designed to transmit an emer-
gency signal from any location within the range of the alarm system,
regardless if the system is armed or disarmed.
The button is small and lightweight enough to be placed in a shirt pocket
or tucked away inside a purse. It can also be used with the supplied neck
strap or multi-functional clip - which can connect to your belt, car visor or
be permanently mounted to a convenient location.
To activate, press and hold the button for approximately 2 seconds.
The LED located on the top of the unit will light up to confirm a signal
has been sent.
NOTE: Signals will not be received if the button is not within range of the wireless receiver.
Activating, Enrolling and Programming
ON
Step 1 - Program Electronic Serial Number (ESN)
Section [804], subsections [01] - [32]
[01] Zone 1
| _ _____| _ _____| _ _____| _ _____| _ _____| _ _____|
Enter the 6 digit ESN located on the back of the device into the next available zone slot.
Step 2 - Program Zone Definition
Section [001] - [004]
Define the selected zone number with appropriate zone type [e.g., 24hr Panic (16),
24hr Holdup (12), 24hr Medical (15)]
Step 3 - Enable Wireless Zone Attribute
Section [101] - [132]
Turn Option [8] ON (wireless zone attribute) in corresponding zone attribute section
Step 4 - Enable/Disable Supervision (default is enabled)
Section [804], subsections [82] - [85]
[82] Wireless Zone Supervision (Zones 1- 8)
Default = ON
|_________| Option 1
.
.
|_________| Option 8
[83] Wireless Zone Supervision (Zones 9-16)
[84] Wireless Zone Supervision (Zones 17-24)
[85] Wireless Zone Supervision (Zones 25-32)

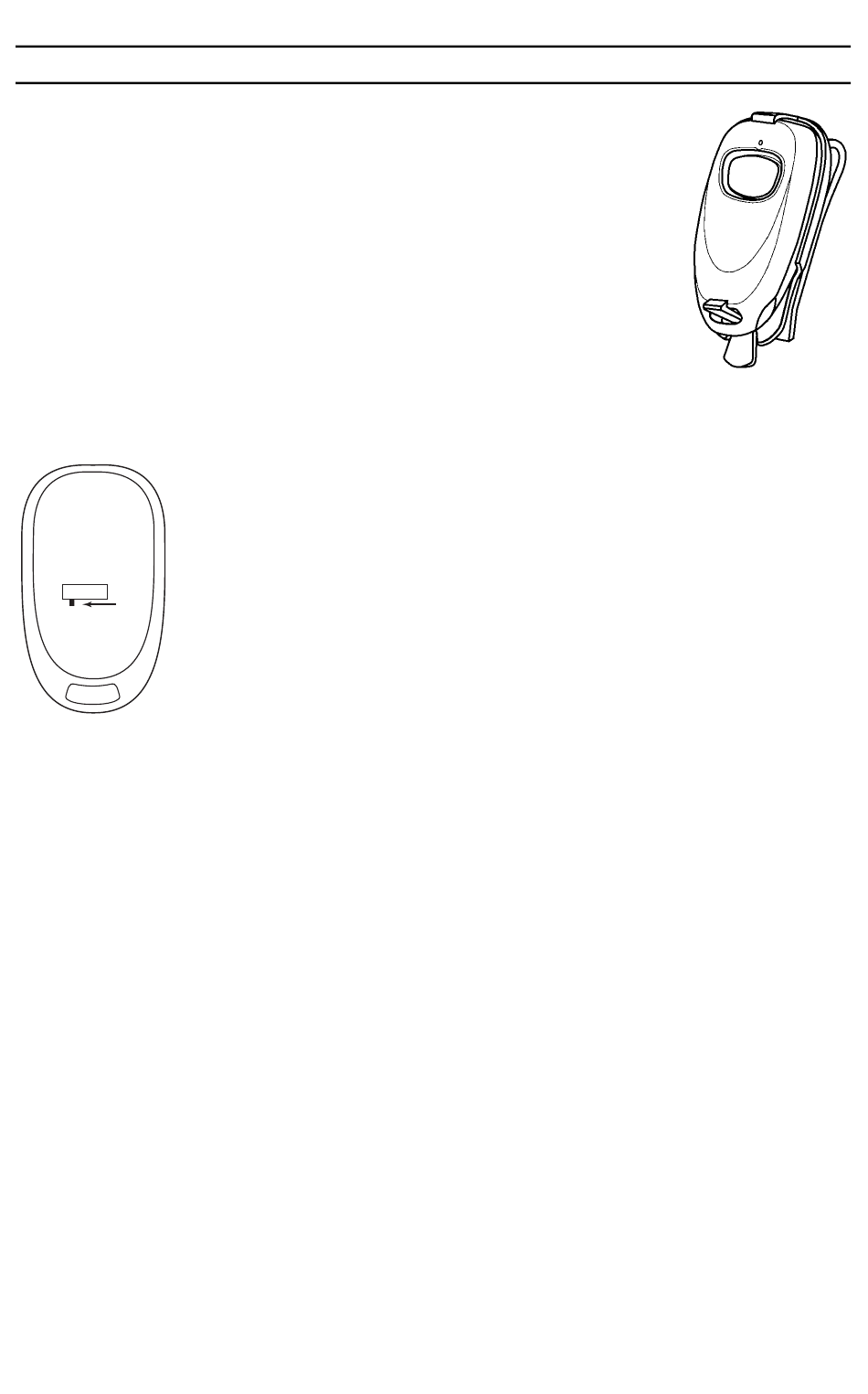

To conserve battery power the button comes deactivated. To activate sim-
ply remove the cover and slide the switch to the ON position (to the left).
This device is supervised. If the unit is removed from the coverage range a
trouble will be indicated on the system. If this is not desired, the supervisory bit
for this zone can be disabled on the receiver.
NOTE: For UL Listed installations, the supervisory bit in the receiver must be
enabled.
The following outlines the basic steps for programming and enrolling this
device on PowerSeries receivers.
For additional options or for other receivers please refer to the specific
receiver installation manuals.
OPTION ON
Zone 01 Supervision Enabled
Zone 08 Supervision Enabled
... [32] Zone 32
OPTION OFF
Disabled
.
.
Disabled
| _ _____| _ _____| _ _____| _ _____| _ _____| _ _____|
.
.
