DSC WS4965 Installation Instructions

Installation Instructions
The WS4965 is a 3-zone device. The primary zone can be configured as a traditional normally closed door/window contact with supplied magnet. If
mounting the device/magnet combination is inconvenient, it can be configured for normally closed tilt switch operation for overhead doors. The WS4965 also
has 2 normally closed contact inputs.

Specifications

• Dimensions: 75mmx43mmx25mm (2 15/16" x 1 11/16" x 1")
• Operating Temperature: -10 to 49ºC (14 to 120ºF)
• Operating Humidity: 5-93% RH
• UL/ULC Listed for residential use only
Compatible with PC5132-433, PC4164-433, NT9005-433, RF5501-433, RF5108-433.

Installation

1. Select Operating Mode Remove the cover by pressing on the end notch to lift top cover. Ensure that the jumpers 1, 2 and 3 are as follows:
:
Reed Switch mode
JP1 - IN (JP1 must always be IN)
JP2 - NA (No effect in Reed Switch operating mode)
JP3 - IN
2. Install Battery: Use care when installing the battery and observe the correct polarity (see Figure A). Use only the Panasonic CR123A lithium battery.
3. Position Transmitter: Select the location where the WS4965 is to be mounted.
Note: RF signals can be affected by metal objects, including metal doors or large mirrors. Ensure that these types of objects are not located between
the device and the receiver as it can interfere with the proper operation of the WS4965.
4. Enrolling, Programming and Placement: The three zones of the WS4965 have unique serial numbers. The 6 digit serial number located on
the device is for the reed or tilt switch zone. The serial numbers for the second and third zone (i.e. external contacts inputs) is the serial number located on
WS4965 + 1 for Zone 2 and the serial number +2 for Zone 3 as indicated below.
Example: Serial number printed on the WS4965 is 211117.
Reed or Tilt switch zone - 211117
Zone 2 - 211118
Zone 3 - 211119
If the last digit is a letter, use the following sequence: A, B, C, D, E, F (A+1=B, A+2=C etc.)
The following steps outline the basic programming and enrollment of this device when used with PowerSeries receivers. For additional options, or for
other receivers, refer to the specific receiver Installation Manual.
Step 1: Program Electronic Serial Number (ESN) - Section [804], subsections [01] - [32]
[01] Zone 1 ... [32] Zone 32
Enter the 6 digit ESN located on the back of the device into the next available zone slot.
For Example ESN: 211117
[01] Zone #1 2 1 1 1 1 7 (Reed/Tilt zone)
Zone #2 2 1 1 1 1 8 (External contact zone)
[02]
[03] Zone #3 2 1 1 1 1 9 (External contact zone)
Step 2: Program Zone Definition - Section [001] - [004]
Define corresponding zone with appropriate zone type [Ex. Delay (01), Instant (03), etc.]
Step 3: Enable Wireless Zone Attribute - Section [101] - [132]
Turn Option [8] ON (wireless zone attribute) in the corresponding zone attribute section
All wireless devices must be tested for good signal strength from where they are
positioned.
Note: Test wireless device signal strength from the final mounting position.
Step 4: Module Placement Test - Section [904], subsections [01] - [32]
Create a transmission by moving the magnet away from the WS4965, or by activating
the tilt sensor.
The panel will sound the siren and light LED 1 or 3 to indicate the test result:
1 squawk of the siren (or keypad LED 1) indicates GOOD placement
3 squawks of the siren (or keypad LED 3) indicates BAD placement
If the transmitter tests BAD, move the transmitter and repeat the Placement Test until 3 GOOD results in a row are indicated.
WS4965
TriZone Door/Window Contact
• Operating Frequency: 433MHz
• Battery: Panasonic CR123A Lithium
• Battery Life: 5-8 years (Not tested by UL/ULC.)
Tilt Switch mode
JP1 - IN (JP1 must always be IN)
JP2 - IN (No delay)
JP2 - OUT (1 minute delay before sending an alarm)
JP3 - OUT
Z1
MAGNETIC
+
-
MAGNET MAGNET
JP3 JP2 JP1
(1.27 CM)
Z2 COM Z3

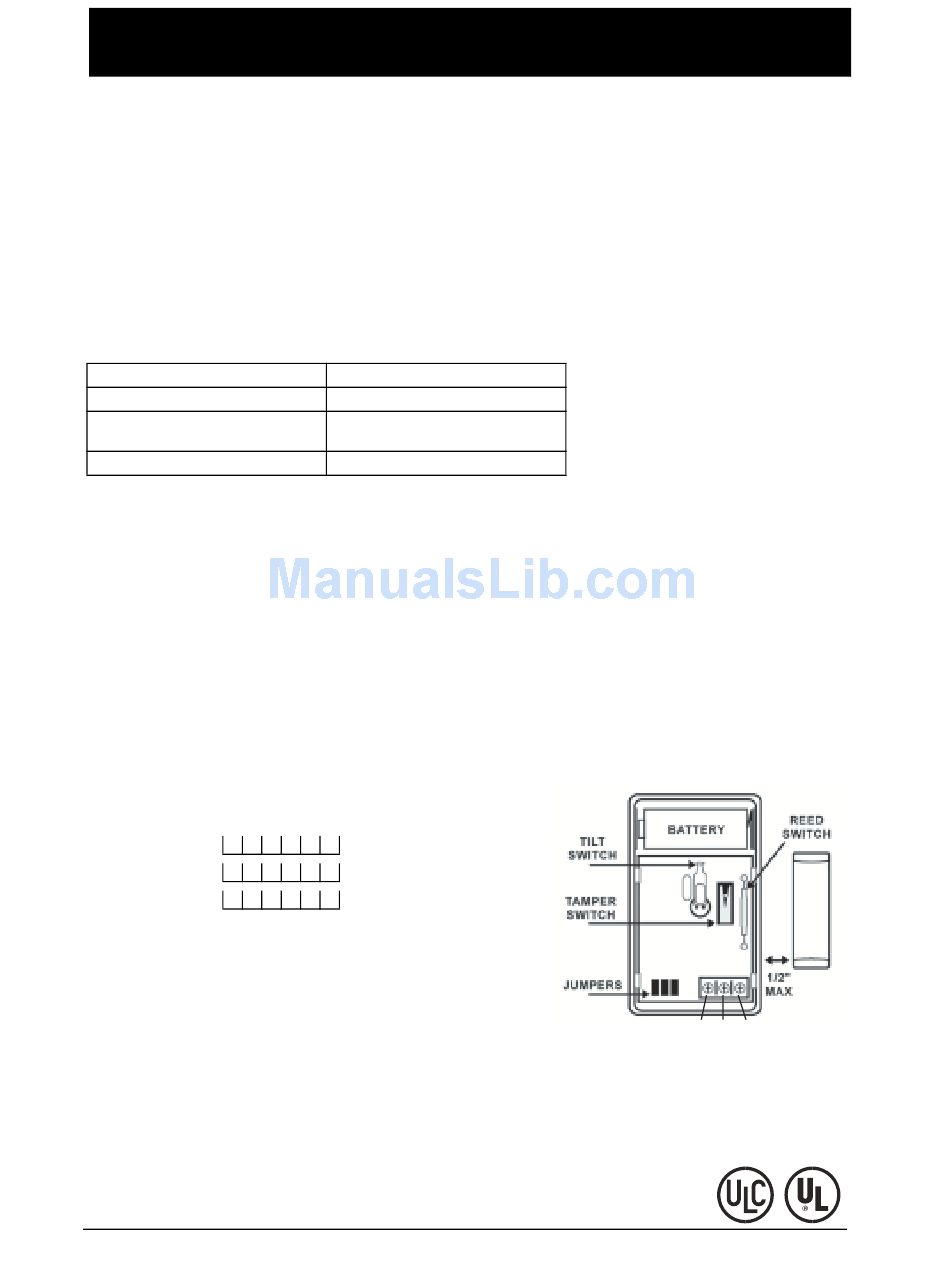

Figure A
Version 1.0
