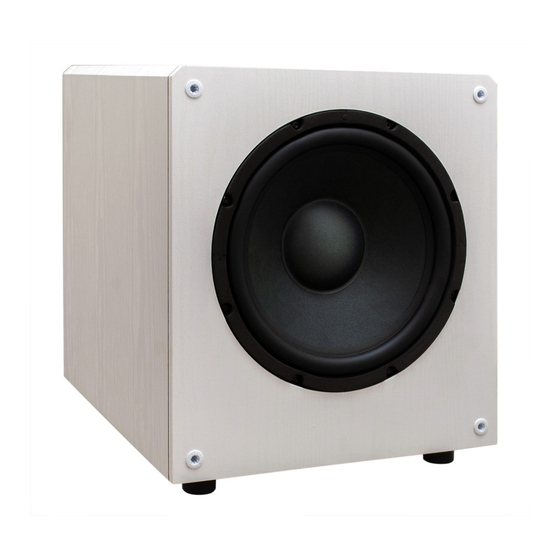

- Page 1 Active Subwoofers AUDIO-VIDEO (TSW, VIGOR) / inMOVE Series Instruction Manual Edition 04-18...
- Page 2 Introduction Thank you for purchasing this TAGA Harmony subwoofer. This subwoofer is a single driver and bassreflex construction with a high-current built-in amplifier. The high-power and high-current amplifier delivers deep, dynamic bass with very low noises and a perfect definition.
-
Page 3: Table Of Contents
Contents Safety Instructions Important Safety Instructions Unpacking the Subwoofer Placement Controls And Displays - Rear Panel Hooking Up The Subwoofer Operation Additional Information Kit content... -
Page 4: Safety Instructions
Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT REMOVE CHASSIS (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The triangle containing a lightning symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. -
Page 5: Important Safety Instructions
Important Safety Instructions 1. Read Instructions – All the safety and operating instructions 13. Overloading - Do not overload wall outlets, extensions should be read before the product is operated. cords, or integral convenience receptacles as this cas 2. Retain Instructions – The safety and operating instructions result in a risk of fire or electric shock. -
Page 6: Unpacking The Subwoofer
Unpacking the subwoofer Place the carton with the subwoofer on the floor in the upside down position and open it from the bottom, remove the internal packaging which protects the subwoofer on the bottom. Carefully turn the carton with the subwoofer upside down. When the subwoofer is securely placed on the floor remove the carton and internal packaging - your subwoofer is ready for placement in your room. -
Page 7: Controls And Displays - Rear Panel
Controls and Displays - Rear Panel Available controls and inputs as well as their placement on the rear panel vary depending on the model. The above figure shows the TSW-90 v.4 subwoofer rear panel. Rear Panel: POWER Switch (ON and OFF) FUSE Note! A blown fuse should be only exchanged for exactly the same type as indicated on the rear subwoofer panel. -
Page 8: Hooking Up The Subwoofer
Hooking Up The Subwoofer 1. Make sure that the subwoofer is turned off (the POWER Switch is in the OFF position and the Power Cable is removed). 2. Make sure that your audio equipment (amplifi er/preamplifi er/AV receiver) is turned off . 3. -
Page 9: Operation
Hooking Up The Subwoofer The HIGH INPUT connectors can accommodate up to 10AWG speaker cables as well as most of popular plugs (banana etc.). A 10AWG cable is recommended for longer connections (longer than 20 meters / 66 feet). For shorter lengths you can use 12/14 or 18 AWG cables. It is recommended to leave about 150 cm (5 feet) of extra cable at the subwoofer end to facilitate positioning and installation of the subwoofer. -
Page 10: Additional Information
It is recommended to turn off (POWER OFF) the subwoofer when not in use for a longer period of time. We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content Subwoofer...
