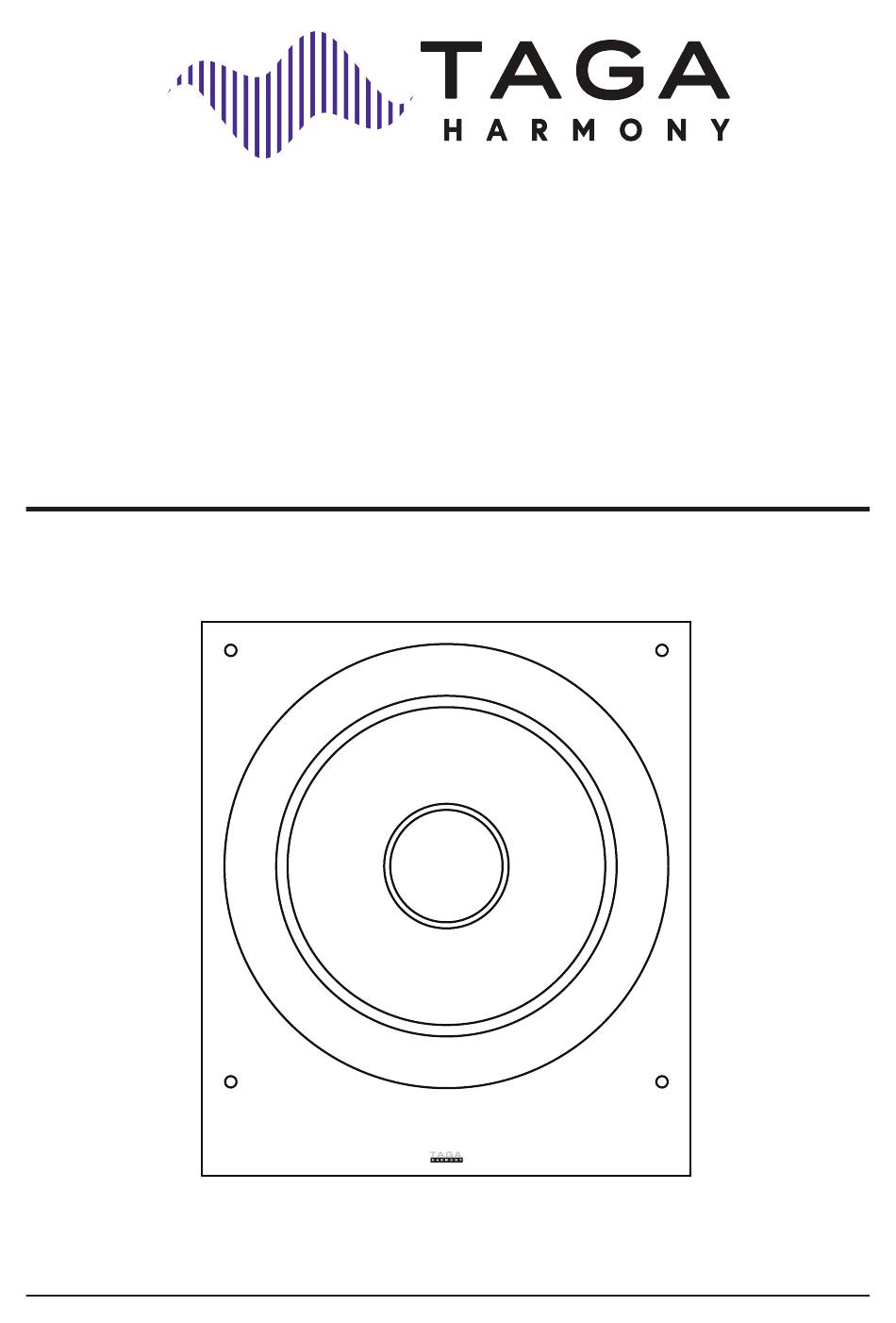

- Page 1 Active Subwoofers Thunder SW-15D / Thunder SW-12D Instruction Manual Edition 09-2023...
-
Page 2: Introduction
Introduction Thank you for purchasing this TAGA Harmony subwoofer. This subwoofer is a single-driver and rear bass port construction with a built-in high-current amplifier. The built-in amplifier delivers big power output and is characterized by high efficiency and current drive which results in low distortions, smooth and flat response and fast amp operation with significantly reduced operation noises. -
Page 3: Table Of Contents
Contents Introduction Safety Instructions Unpacking the Subwoofer Placement Controls and Connections - Rear Panel Hooking Up The Subwoofer Operation Additional Information... -
Page 4: Safety Instructions
Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The triangle containing a lightning symbol is intended to alert the user to the presence of uninsulated dangerous voltages within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. - Page 5 Safety Instructions 1. Read Instructions - All the safety and operating instructions 13. Overloading - Do not overload wall outlets, extension cords or should be read before the product is operated. integral convenience receptacles as this can result in a risk of fire 2.
-
Page 6: Unpacking The Subwoofer
Unpacking the subwoofer Place the carton with the subwoofer on the floor in the upside down position and open it from the bottom, remove the internal packaging which protects the subwoofer on the bottom. Carefully turn the carton with the subwoofer upside down. When the subwoofer is securely placed on the floor remove the carton and internal packaging - your subwoofer is ready for placement in your room. -
Page 7: Controls And Connections - Rear Panel
Controls and Connections - Rear Panel Available controls and inputs as well as their placement on the rear panel may vary depending on the model. The above figure shows the Thunder SW-15D subwoofer rear panel. Rear Panel: 1. Power Switch (ON and OFF) 2. -
Page 8: Hooking Up The Subwoofer
Hooking Up The Subwoofer Before using the subwoofer for the first time! Your subwoofer will typically be set at the factory to accommodate the electrical outlet voltage in your area. However before using this subwoofer for the first time we recommend to verify that the AC Select Switch is set in the position which is compatible with electric power voltage in your area. - Page 9 Hooking Up The Subwoofer I. CONNECT USING LFE (SUB OUT) SUBWOOFER OUTPUT This connection is recommended if your audio equipment is equipped with a single filtered RCA subwoofer output (usually marked as LFE, SUB OUT, SUBWOOFER etc.). There are 2 options of connection: a.
- Page 10 External audio equipment connection options: Input Output Connection cable subwoofer external equipment (LFE) SUB OUT RCA-RCA subwoofer interconnect (supplied) (LFE) SUB OUT RCA-RCA subwoofer interconnect (supplied) Y-type subwoofer interconnect (not supplied) L/R RCA outputs RCA-RCA interconnect (not supplied) Y-type subwoofer interconnect (not supplied) HIGH INPUT SPEAKERS...
-
Page 11: Operation
Operation 1. Plug the Power Cable to the subwoofer and into the electrical outlet. 2. Turn on the subwoofer – press the Power Switch to the ON position. The Power Status LED Indicator should be illuminated in a few seconds. If it does not, it means that the subwoofer is working under in abnormal condition (a protection mode) - turn off the power, unplug the Power Cable and check whether some of the cables are not short circuited. - Page 12 Operation CROSSOVER Regulator: This control is active only for: Low Input L and R, High Input Speaker Connectors (L and R). The regulator allows the adjustment of the low-pass filter and affects the upper frequency limit of the subwoofer. The adjustment can be smoothly made between the frequency ranges which are provided on this regulator description on the rear panel.
-
Page 13: Additional Information
Additional Information Break-In Your TAGA Harmony subwoofer sounds great immediately after it is taken out of the carton, but the internal components of this subwoofer require a “break-in” period to reach its full sonic capabilities. During the “break-in” period it is recommended to operate the subwoofer at moderate volume levels. - Page 14 We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. Kit Content Subwoofer Single RCA-RCA subwoofer cable Power Cable Instruction Manual EU declaration of conformity Your product is marked with the symbol shown on the left.
- Page 15 Notes...
- Page 16 Notes...
