Unit Components - Trane Cold Generator CGWR Series Installation, Operation And Maintenance Manual

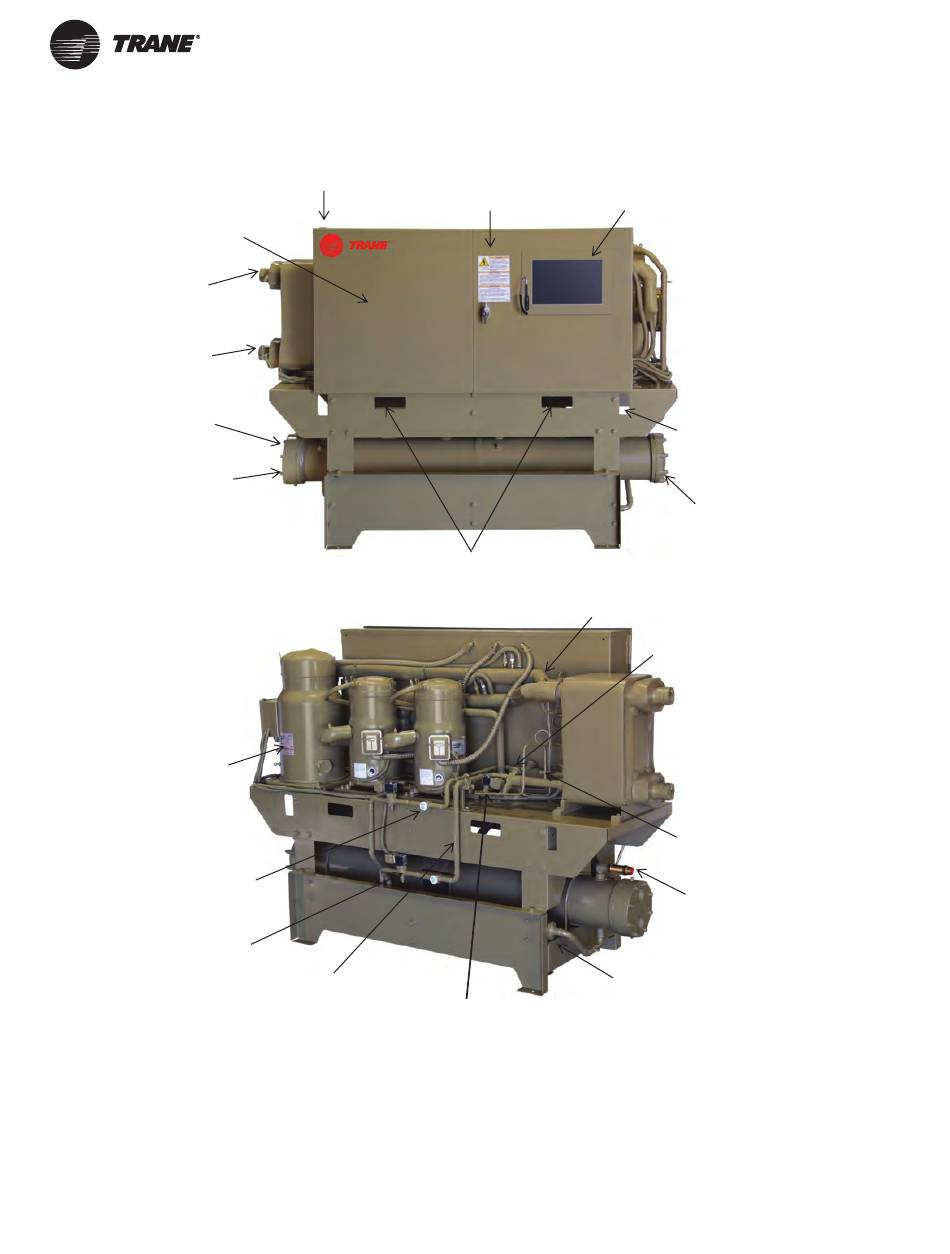

Unit Components

Optional Disconnect
Switch Location
Evaporator Water
Inlet (Vic)
Evaporator Water
Outlet (Vic)
Condenser Water
Outlet (FPT)
Condenser Water
Inlet (FPT)
Compressor
Nameplate
Sight Glass
(1 per circuit)
Solenoid Valve
(1 per circuit)
6
Power Wiring
Unit Nameplate
Location
(inside door)
Forklift Pockets
Liquid Line
(1 per circuit)
Hot Gas Injection
Solenoid Valve
(1 per circuit)
Optional 15.4" Color Touchscreen
(Keypad w/ Display comes standard)
Rigging Bracket
Install Pockets
Removable Water
Plate on Shell-and-
Tube Condenser
Suction Line
(1 per circuit)
TXV
(1 per circuit)
Charging Port
(1 per circuit)
Relief Valve
(1 per circuit)
Filter Drier
(1 per circuit)
CG-SVX038A-EN
