Connection

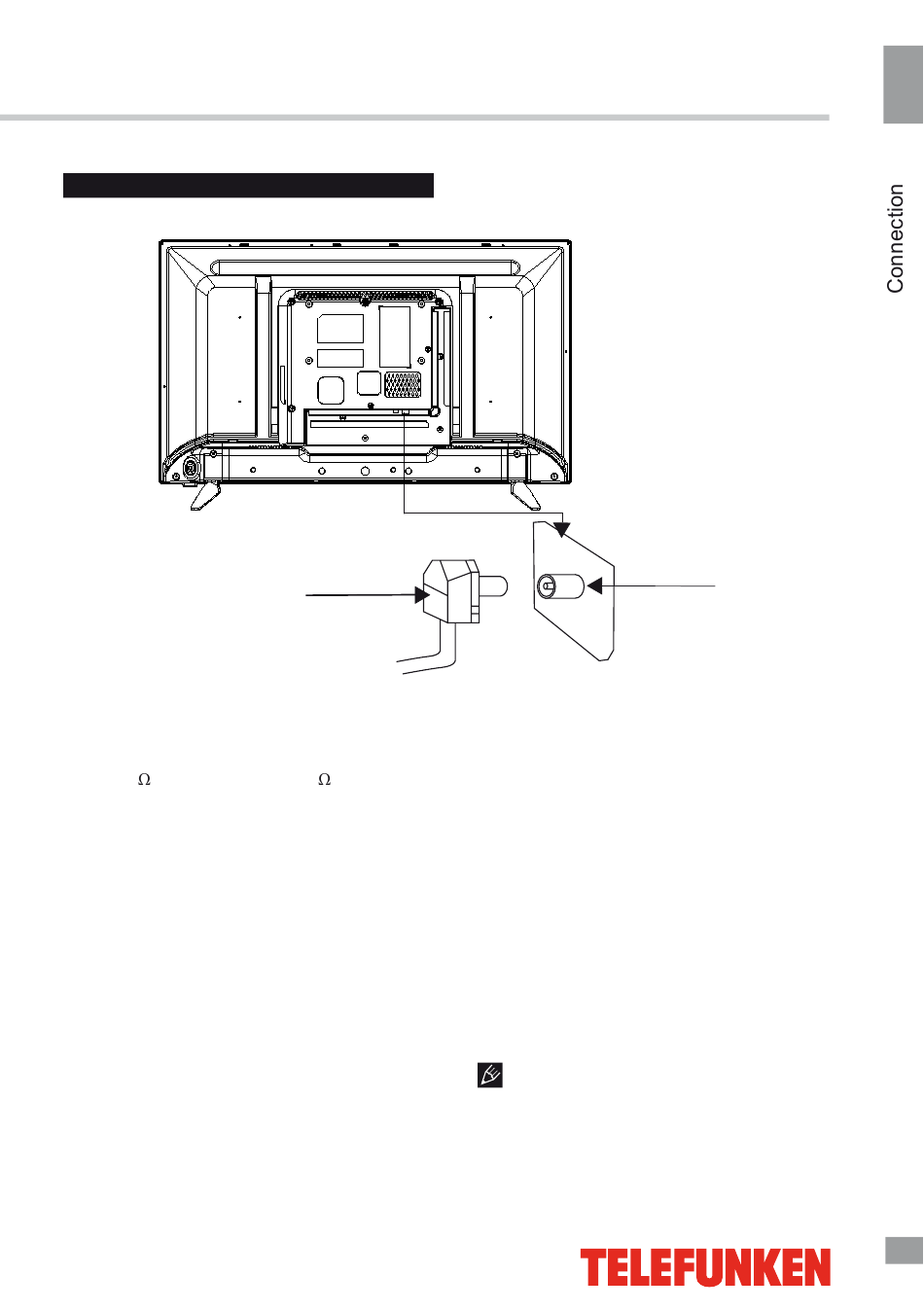

Antenna cable connector

Outdoor antenna connection

Use 75 cable plug or 300-75 impedance
converter to plug in antenna input terminal on
the rear of the cabinet.

Other connections

• Connect the audio sources (Including
DVD, VCDR, CAMCORDER and PC) to
the Mini AV in (Mini YPbPr/VGA Audio in)
• Connect the video source to the AV
IN jack by RCA cable.
• Component input is intended to receive
component video signal from the external
device. Connection is made with the help of a
special component cable. To receive audio
signal for component video, please use the
audio input of this unit.
• Plug the power cable in the electric outlet,
making sure the current voltage is supported.
75 Ohm co-axis cable
Connection
TVRF antenna jack
• When using the LED as a computer
screen, connect the PC to the VGA jack from
the monitor by the relevant cable (not included).
• If the video source has a HDMI output
jack, you can connect the signal to the
monitor by the HDMI cable (not included).
• Coaxial SPDIF output is intended for
transmitting multi-channel sound to an external
decoder (e.g. in 5.1-CH format). Coaxial cable
should be used for connection.
• PCMCIA slot is used for CI modules that
are obtained from your digital TV provider.
• SCART socket is used to connect external
devices with a SCART connection.
Please note that AV and component
input (YPbPr) share the same audio socket so
make sure that if the one or the other input is
used, you choose the corresponding source
signal (press the SOURCE button).
