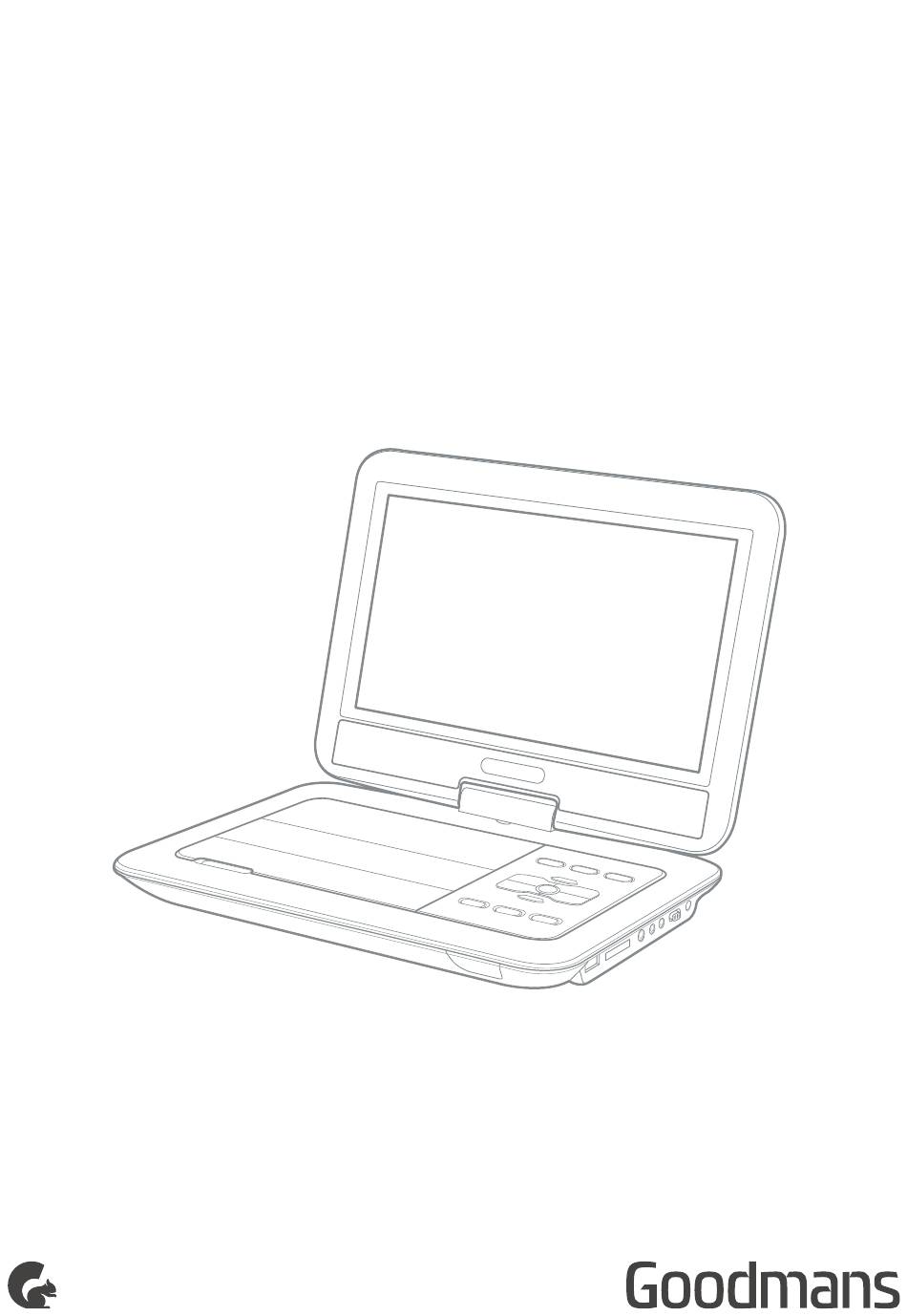

Page 1: Dvd Player
10” PORTABLE DVD PLAYER MODEL: 329944 USER MANUAL... - Page 2 Welcome Your DVD Player 2.1 In The Box 2.4 Remote Control 2.2 Open Top View 2.3 Side View Quick Setup 3.6 Fitting The Remote Batteries 3.1 Power On/Off - Mains Operation 3.2 Power On/Off - In-Car Operation 3.7 Connection to a TV 3.8 Connecting an External Source 3.3 Charging the Internal Battery 3.9 In-Car Headrest Mount...
-
Page 3: Your Dvd Player
Welcome Thank you for choosing this Goodmans product. We’ve been making electronics for the British people for 70 years. Each of our projects has been carefully designed to be great at what it does and this one is no exception. We hope you enjoy your new portable DVD player. -
Page 4: Your Portable Dvd Player
SD/MMC input socket. Insert an SD card for photo viewing. AV IN. Input socket. EARPHONE. Earphone output OFF/ON. Power on/off switch. socket. DC INPUT POWER socket. Connect AV OUT. Output socket. the mains/ In-car charger supplied with the Portable DVD Player. 329944... -
Page 5: Remote Control
TFT screen. Press again to enable AUDIO. Press repeatedly to cycle SUBTITLE. Press repeatedly to through available audio tracks cycle through available subtitles tracks on a DVD disc GOTO. Specify an exact point on a DVD or CD to jump to. 329944... -
Page 6: Quick Setup
It is VERY important not to connect to a 24V car power adapter. Please check your vehicle manual before attempting. 4. Set the POWER ON/OFF switch (Q) to the ON position to use the portable DVD player or follow the charging instructions on the next page. 329944... -
Page 7: Charging The Internal Battery
The display can be rotated 180 degrees Clockwise from the facing front position. And can then be folded flat so the display folds on-top of the buttons and disc compartment. Take care not to rotate any further than the specified angles, as internal wiring can be damaged. 329944... -
Page 8: Fitting The Remote Batteries
DVD player will appear on the TV screen. To disable the output on the TFT screen of 3.5mm AV Cable portable DVD player press the TFT button (23) on the remote control. DVD Player 6. Press the TFT button (23) again to enable once more. 329944... - Page 9 Use the velcro tabs to secure the player. 3. Use the webbing straps to mount the harness to a headrest. Adjust the toggles to ensure the harness is secure. 329944...
-
Page 10: Getting Started
This function may not work during the “Warning” section of a ENTER DVD. Volume controls VOL+ 1. Use the VOLUME +/- buttons (D, G, 20 & 18) on the ENTER portable DVD player or remote to increase or decrease the GOTO listening level. AUDIO 329944... -
Page 11: Basic Operations
TITLE button may not respond). ENTER Mute (DVD, CD) GOTO AUDIO This function will instantly silence the audio. MUTE 1. Press the MUTE button (remote) to silence the audio. DISPLAY REPEAT 2. Press the MUTE button again to resume. PROG ZOOM ANGLE 329944... -
Page 12: Advanced Operation
1. Press the SUBTITLE button (24) to activate the first set of ST-BY subtitles. TITLE MENU SUBTITLE SETUP 2. Press the SUBTITLE button (24) repeatedly to cycle through the available subtitle options. 3. Press the SUBTITLE button (24) repeatedly until you reach VOL+ OFF to disable the subtitle function. 329944... -
Page 13: Advanced Operations
3. Use the numeric buttons (08) to enter the chapter, track or AUDIO time you wish to skip to.. MUTE DISPLAY REPEAT DVD, USB & SD Input modes 4.10 PROG ZOOM ANGLE Press the DVD/USB/SD(CARD) button (J, 11) to switch between DISC playback, USB & SD card photo viewer modes. 329944... -
Page 14: Jpg Picture Viewer
100%. Every subsequent press cycles through the zoom options eg: 100%, 125%, 150%, 200%, 75% & 50%. 10. Repeat can be set to SHUFFLE, RANDOM, SINGLE, REPEAT ONE, REP FOLDER or FOLDER by repeatedly pressing the REPEAT button (remote). 329944... -
Page 15: Other Operations
• Excessive sound pressure from earphones and headphones can cause hearing loss. To avoid damaging your ears, adjust the volume to the lowest safe level before playing, and turn up to the desired level when playback has started. 329944... -
Page 16: Setup Menu
When the unit is not in use, the DVD logo will appear as a screen saver to prevent screen burn in. Choose ON or OFF. Last memory When set to ON the unit will remember the last position on a disc before the unit was shut down (STANDBY). 329944... -
Page 17: Dolby (Audio Output)
-16 to +16. Press the OK button (F, 06) to complete the setting. Contrast Set the video contrast level. Use the / buttons (E, 19) to increase or decrease from -16 to +16. Press the OK button (F, 06) to complete the setting. 329944... - Page 18 Parental Choose between:- • Kid Safe • PGR • G • R • PG • NC17 • PG13 • Adult When changing the parental level you will be asked to enter the password. The default password is ‘1234’. 329944...
- Page 19 OK button to save the new password. The master override password can be used if you change the default but forget the new password. The master password is ‘1369’. Default Activating this option resets every setting to the factory default. 329944...
-
Page 20: Useful Information
Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio and the double-D symbol are trademarks of Dolby Laboratories. 329944... -
Page 21: Disc Types
DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD player can¬not play that disc. The Region number of this DVD player is ‘REGION 2’ 329944... -
Page 22: Troubleshooting
Make sure you aim the remote at the Remote not aimed at the IR IR sensor on the front of the unit near the sensor on the unit. LED indicators Forgotten the Use the default override code ‘1369’. Pass Code 329944... -
Page 23: Technical Specifications
Technical Specifications Model Number 329944 Output - DC 9V 1500mA Power Supply Input - AC 100~240V 50/60Hz 0.3A Input voltage DC 9-12V Battery Lithium battery Battery capacity 1800mAh / 7.4V Dynamic range ≥ 85dB Video output 1 Vp-p75 Ω unbalanced...
