Summary of Contents for Goodmans GDVD3607HDMI
-

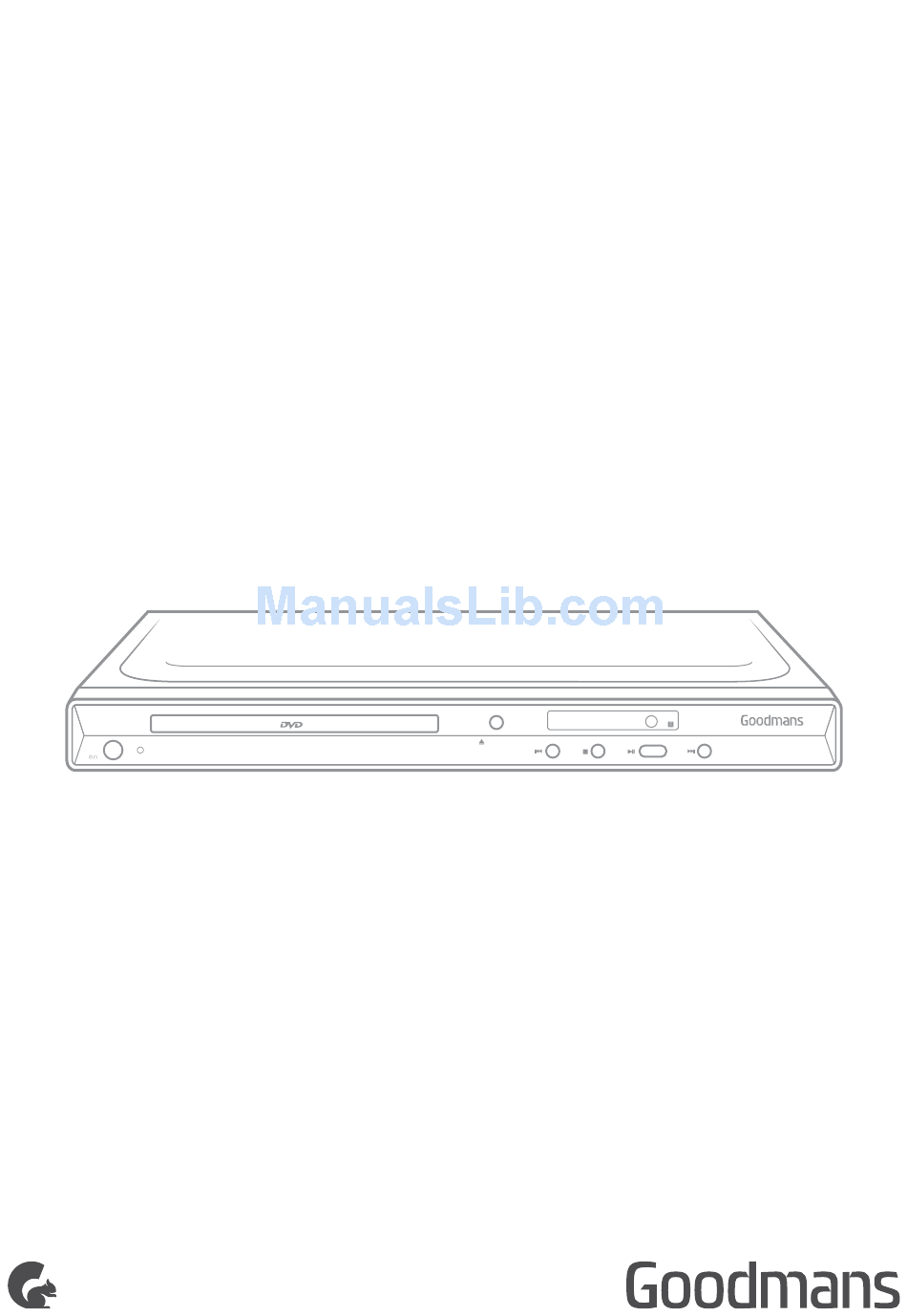

Page 1: Dvd Player
DVD PLAYER OPEN/CLOSE STANDBY MODEL: GDVD3607HDMI USER MANUAL... -
Page 2: Table Of Contents
Welcome Your DVD Player 2.1 In The Box 2.4 Remote Control 2.2 Front View 2.3 Rear View Quick Setup 3.4 Video Connections 3.1 Power On/Off 3.2 Standby & Auto Standby 3.5 Audio Connections 3.3 Fitting The Remote Batteries Operation Getting Started 4.9 Zoom (DVD &... -
Page 3: Your Dvd Player
Welcome Thank you for choosing this Goodmans product. We’ve been making electronics for the British people for 70 years. Each of our projects has been carefully designed to be great at what it does and this one is no exception. We hope you enjoy your new DVD player. -
Page 4: Front View
Rear View Pb/Cb Pr/Cr VIDEO HDMI L-AUDIO-R COAXIAL S-VIDEO SCART OUT Mains power cable. Stereo RCA audio output. Component video output. Coaxial digital audio output. HDMI audio/ video output. Composite video output. S-Video video output Scart audio/ video output GDVD3607HDMI... -
Page 5: Remote Control
MUTE button. Press to silence audio output. RESUME button. Resume from the last point. OPEN/CLOSE button. Press to eject/ close the disc drawer. DISPLAY button. Displays information about the current disc. AUDIO track select button. Press to select alternate audio tracks. GDVD3607HDMI... - Page 6 REPEAT button. Press to initiate the repeat functions. PROG button. Press to initiate the program function. CLEAR button. Press to clear program digits. A/R (Aspect ratio) button. Press to change the aspect ratio. RAN (random) button. Press to initiate the random playback function. GDVD3607HDMI...
-
Page 7: Quick Setup
3. Once audio playback has ceased and the unit has stood idle for approximately 20 minutes, it will switch into a ‘power-down’ power saving mode. 4. To wake the unit up, press the STANDBY button (A, 01). GDVD3607HDMI... -
Page 8: Video Connections
HDMI: Carries both VIDEO & AUDIO. This connection method will allow the image to be ‘up scaled’ to HD resolutions (when connected to a supported TV). Connect one end to the DVD player (N) the other end to your TV. GDVD3607HDMI... -
Page 9: Audio Connections
COAXIAL CABLE 1. Connect one end of the COAXIAL cable to the COAXIAL output (M) on the rear of the DVD player. 2. Connect the other end of the COAXIAL cable to any available COAXIAL input on your amplifier. GDVD3607HDMI... -
Page 10: Getting Started
(G) button once more. Skip 1: Press either (E, 09) or (I, 28) buttons during playback to skip a chapter (DVD) or a track (CD) ahead or backwards. This function may not work during the “Warning” section of a DVD. GDVD3607HDMI... -
Page 11: Basic Operations
1. Pressing the TITLE (06) button during playback activates the discs title menu (if available). The TITLE menu is the beginning track of a disc. (not all discs contain these and as such the TITLE button may not respond). GDVD3607HDMI... -
Page 12: Volume Controls
1. Press the REPEAT (31) button to activate the first repeat function REPEAT 1. 2. Press again to swap to REPEAT ALL (repeats all track on the current disc). 3. Another press of the REPEAT (31) button disables the function. Some discs may not allow repeat functions. GDVD3607HDMI... -
Page 13: Advanced Operations
1. Press the AUDIO (20) button to cycle through the tracks. This DVD player does NOT support DTS audio. If you select a GO TO DTS audio track or one is selected automatically no sound will be output. Should this occur select a compatible audio track. GDVD3607HDMI... -
Page 14: Subtitle Track (Dvd Only)
1. Press the STEP (13) button to advance in slow motion. Each press advances one frame. 2. Press the (07) or (G) button to resume normal playback speed. RESUME 4.13 Random RESUME 1. Press the RAN (35) button to begin playback in a random order. GDVD3607HDMI... -
Page 15: Go To
ENTER button to select. 3. Press the (F, 08) button to return to the file browser screen. 4. To display an image indefinitely press the (26) or button. To resume the slide show press the (07) or button. GDVD3607HDMI... -
Page 16: Program Playback
ENTER (05) button to begin playback of your programmed sequence. Clear 4.20 1. When programming should you enter an incorrect chapter/ track number press the CLEAR (33) button to clear the digits and re-enter the number. GDVD3607HDMI... -
Page 17: Setup Menu
This option allows you to change the way the audio is TV Display 16:9 Angle Mark assigned to each speaker. Choose from: OSD Lang Captions Screen Saver LT/RT: Left / Right mixed mode HDCD Last Memory STEREO: Stereo audio output Go To General Setup Page GDVD3607HDMI... -
Page 18: Spdif Output
Set the video sharpness level. Select from LOW, MEDIUM or HIGH. Brightness Set the video brightness level. Use the (04) navigation buttons to increase or decrease from -20 to +20. Press the ENTER (05) button to complete the setting. GDVD3607HDMI... -
Page 19: Preferences Setup
Select from:- English, Spanish, German, French & Off. Disc Menu This option sets the default DVD menu language, once set if the DVD you are watching contains a menu with your specified language that is used by default. Select from:- English, Spanish, German & French. GDVD3607HDMI... - Page 20 The master override password can be used if you change the default but forget the new password. The master password is ‘1234’. Default Activating this option resets every setting to the factory default. GDVD3607HDMI...
-
Page 21: Disc Handling
U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. GDVD3607HDMI... -
Page 22: Disc Types
DVD disc. If the Region number described on the DVD disc does not correspond to the Region number of this DVD Player, this DVD player can¬not play that disc. The Region number of this DVD player is ‘REGION 2’ GDVD3607HDMI... -
Page 23: Troubleshooting
Clean the disc if it is dirty or try a clean disc. The setup menu obscures the picture. Press the SETUP (03) button to close the menu. Remote not working Replace the batteries. Move any objects obstructing the sensor path to the DVD player. Move closer to the DVD player. GDVD3607HDMI... -
Page 24: Technical Specifications
Audio: 2.0 Channel output, Coaxial output Output Video: AV output, S-Video output, Y,Cb,Cr output & HDMI output Dimensions 360 x 239 x 44mm Customer Support Our customer service team is available for technical or guarantee support. Visit www.goodmans.co.uk/support QSG-AUGUST14-GDVD3607HDMI www.goodmans.co.uk GDVD3607HDMI...
